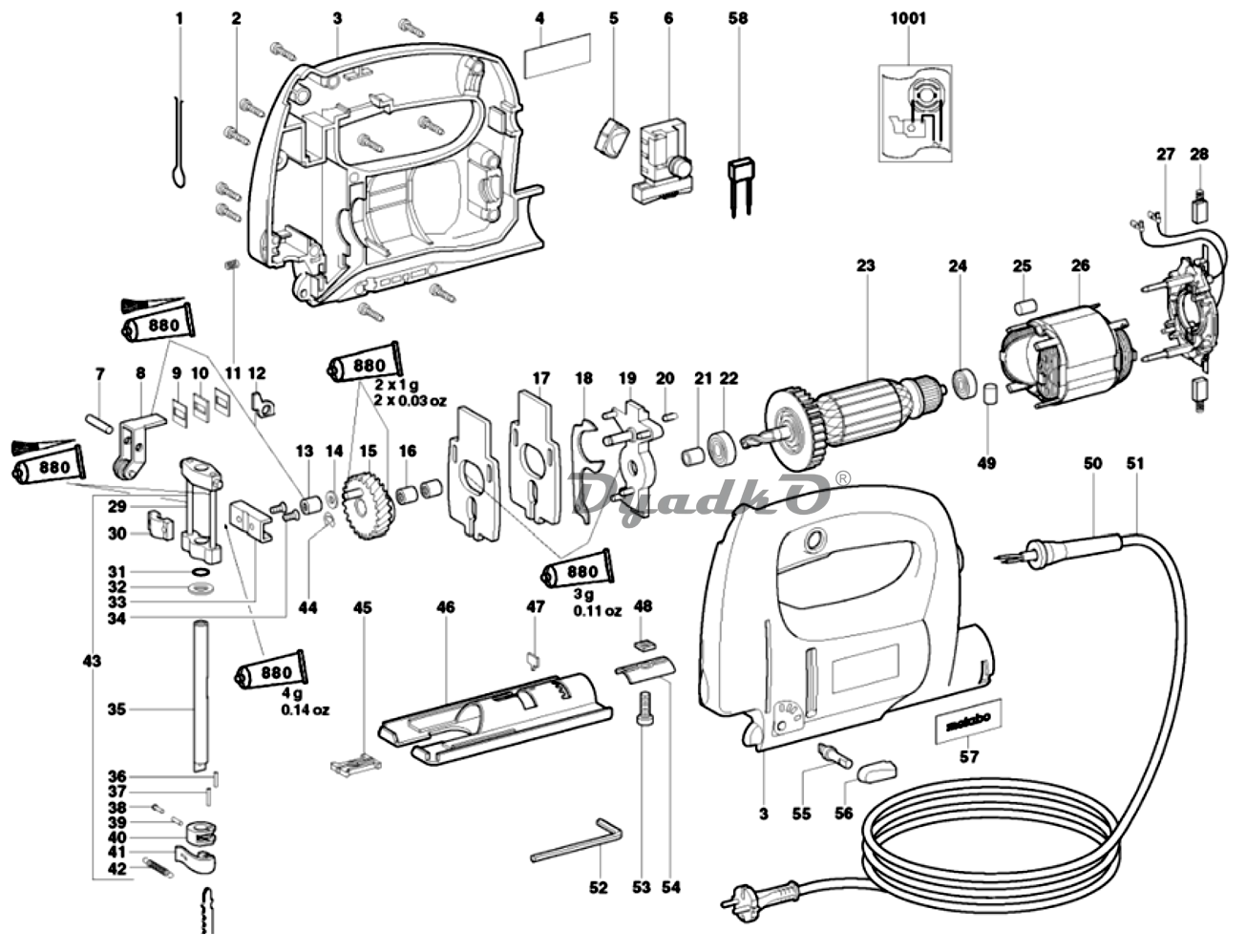

Схема METABO STE 65 ST (00362000)

1	Protective strap
2	Self-tap fill h screw
3	Housing cpl.
4	Rating plate
5	Dummy plug
6	Electronic switch
7	Cylindrical pin
8	Supporting lever
9	Sliding sheet
10	Felt
11	Pressure spring
12	Guide plate
13	Needle bearing
14	Washer
15	Spur gear cpl.
16	Needle sleeve
17	Balancing plate
18	Pressure spring
19	Bearing support cpl.
20	Rubber plug
21	Cover brush
22	Ball bearing, 8x22x7
23	Armature cpl. 230 V
24	Ball bearing, 6x19x6
25	Rubber stopper
26	Field coil 230V / 120 V
27	Brush holder module
28	Carbon brush cpl.
29	Oscillating guide
30	Cover plate
31	O-ring
32	Sealing washer
33	Connecting link
34	Countersunk screw
35	Ram
36	Cylindrical pin
37	Spiral tightening pin
38	Drift key
39	Tightening pin
40	Clamping piece
41	Clamping lever
42	Tension spring
43	Ram with guide
44	Circlip
45	Anti-splintering insert
46	Base plate cpl.
47	position plate
48	Square nut
49	Rubber plug
50	Cable sleeve
51	Cable with plug
52	Hexagonal key
53	Cap screw
54	Champing claw
55	Shift axle
56	Shift lever
57	M-Label,08 52x22
58	Interference suppr. cond.
880	Grease 50Gr 1,8oz
1001	Diagram
