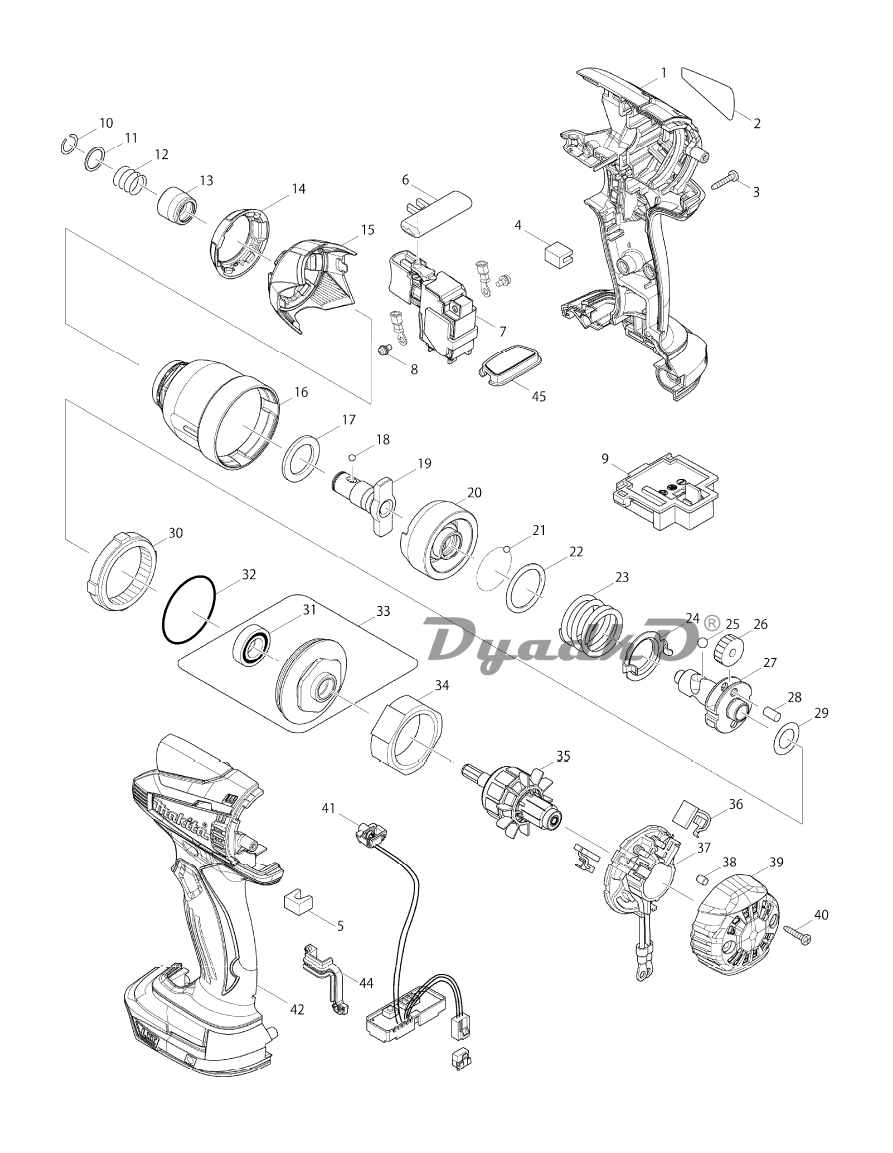

Схема MAKITA BTD 134 RFE
1
HOUSING SET BTD134
2
NAME PLATE BTD134
3
TAPPING SCREW 3X16 TW100D/BCL
4
SPONGE B BTD134/146/BDF458
5
SPONGE A BTD134/146/BDF458
6
F/R CHANGE LEVER BTD130/132/14
7
SWITCH BTD134/146
8
PANHD SCREW M3.5X5 BTD130F/BTP
9
TERMINAL BVC340
10
RING SPRING 11 6903VDW/6705D
11
*NARROW WASHER 12 6705D 5PK
12
*COMPRESSION SPRING 13 5PK
13
BIT SLEEVE BTD134/146/136/147
14
BUMPER BTD134/146
15
HAMMER CASE COVER BTD134/146
16
HAMMER CASE COMP BTD134/146
17
NYLON WASHER 19 BTD134/136/146
18
*STEEL BALL 3.5 10PK
19
ANVIL M BTD134/136/146/147
20
HAMMER BTD134/136/146/147
21
*STEEL BALL 3.5 10PK
22
FLAT WASHER 24 6914DZ/16DZ/BTP
23
*COMPRESSION SPRING 24 BTD130F
24
PLATE BTD134/136/146/147
25
*STEEL BALL 5.6 10PK
26
SPUR GEAR 22 BTW251/BTD132
27
SPINDLE BTD134/136/146/147
28
PIN 5 6503DW/6916D/6990D/LF10
29
THIN WASHER 12 BTD134/136/146
30
INTERNAL GEAR 51 BTD130F/132D
31
BALL BEARING 6901LLB 6918D
32
O RING 40 BTD144
34
YORK UNIT BTD130F/BTP130/140
35
ARMATURE BTD130F
36
CARBON BRUSH CB-440 BFS440
37
BRUSH HOLDER COMP BTD134/146
38
RUBBER PIN 4 BFS440/BHP451
39
REAR COVER BTD134/146
40
TAPPING SCREW 3X16 TW100D/BCL
41
LIGHT CIRCUIT BTD134
42
HOUSING SET BTD134
44
SEAL BTD134/146/BDF458
45
SWITCH PLATE COMP BTD134/146/B
