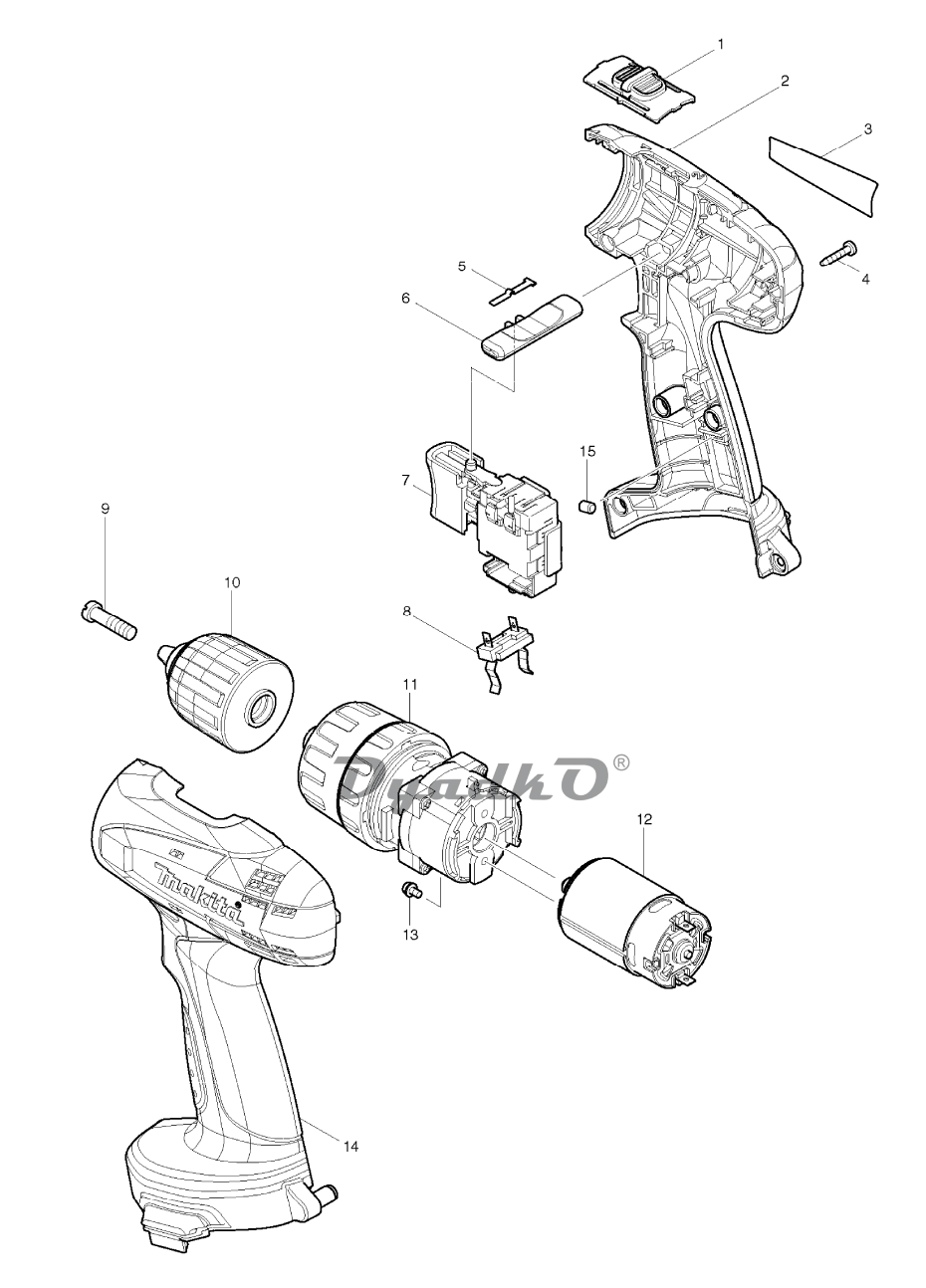

Схема MAKITA 8281 DWPE
1
SPEED CHANGE LEVER ASS\\\'Y
2
HOUSING SET (new)
2
HOUSING SET (old)
3
8281D NAME PLATE
4
TAPPING SCREW BIND PT 3X16
5
LEAF SPRING
6
F/R CHANGE LEVER
7
SWITCH TG563FSB-2 (new)
7
SWITCH TG563FSB-2 (old)
8
BATTERY HOLDER
9
- FLAT HEAD SCREW M6X22
10
KEYLESS DRILL CHUCK 10
11
GEAR ASS\\\'Y
12
DC MOTOR
13
PAN HEAD SCREW M3X6
14
HOUSING SET (new)
14
HOUSING SET (old)
15
RUBBER PIN 4
A01
+/- BIT 2-65
A02
BATTERY COVER
A03
DC1414 BATTERY CHARGER
A04
HIGH CAPACITY BATTERY 1422 SET
A04
BATTERY PA14 SET
A05
PLASTIC CARRYING CASE
E02
LINE FILTER
E03
LINE FILTER
