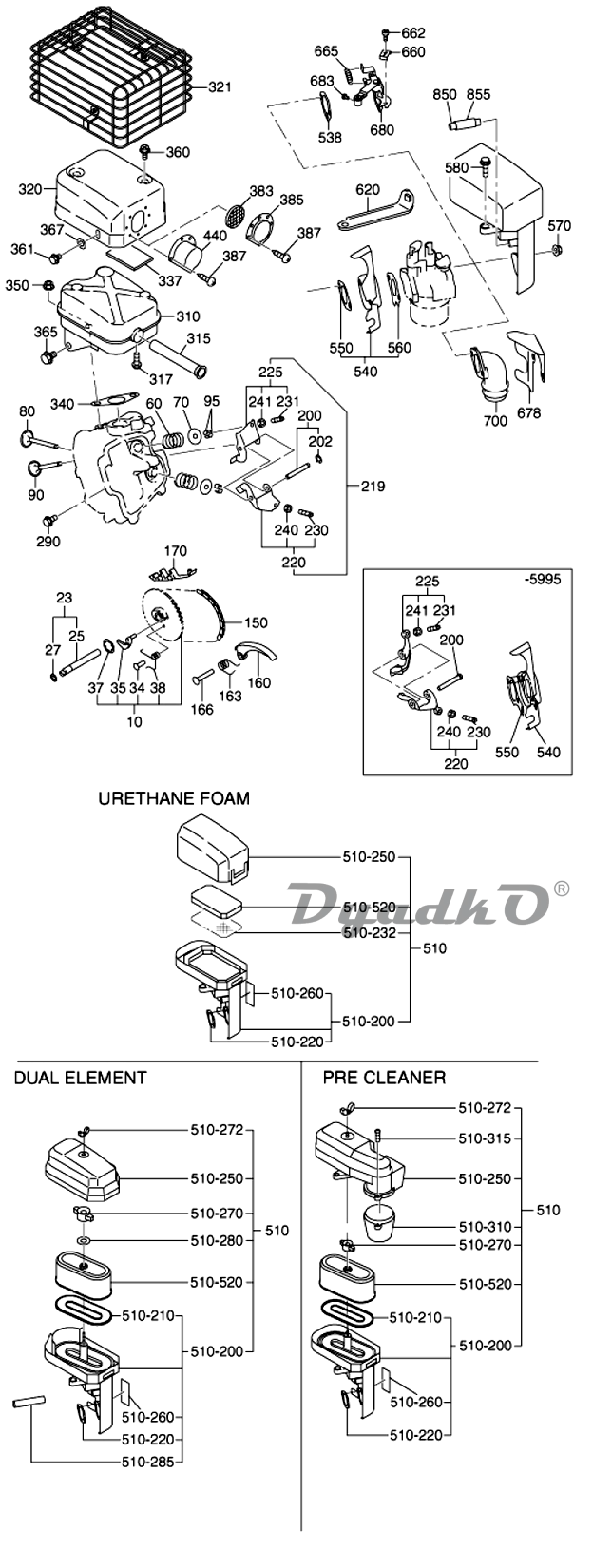

Схема ROBIN-SUBARU EX170DT1200 INTAKE EXHAUST
10
PART NAME 85DX2.9B N=40
23
PIN(CAM SHAFT) CP
27
O RING 5.8DX9.6D
34
PIN(SPRING) 4DX8DX9L
35
RELEASE LEVER
37
CLIP 13.8DX20.3DX0.4T
38
RETURN SPRING 5.1DX0.6DX4.4L N=7
60
VALVE SPRING 19.2DX2.3DX27.4L
70
SPRING RETAINER
80
INTAKE VALVE 25.5DX5.5DX68.1L
90
EXHAUST VALVE 23.5DX5.5DX68.1L
95
COLLET-VALVE
150
TIMING CHAIN CP 88 LINK
160
TENTIONER
163
SPRING(TENTIONER) 10DX1.8DX14L N=4.5
166
PIN(TENTIONER) 6DX13DX34L
170
CHAIN GUIDE
200
PIN(ROCKER) CP
202
CLIP 5DX11DX0.6T
219
ROCKER ARM AY SET
230
ADJUST SCREW M5X0.5X23L
231
ADJUST SCREW M5X0.5X23L
240
NUT M5X0.5X4.1H
241
NUT M5X0.5X4.1H
290
FLANGE BOLT M6X1.0X14DX12L
310
MUFFLER CP
320
MUFFLER COVER CP
340
GASKET(MUFFLER) T=0.2 26D 9DX58P
350
FLANGE NUT M8X1.25X17DX7.5H
360
TAPPING BOLT M6X13DX10L
361
FLANGE BOLT M6X1.0X14DX8L
365
FLANGE BOLT M8X1.25X16DX12L
367
WASHER
387
TAPPING SCREW M4X6L
440
DEFLECTOR CP W/SCREEN
510
AIR CLEANER AY URETHANE FOAM
540
INSULATOR CP
550
GASKET 2(INSULATOR) T=0. 5
560
GASKET I(INSULATOR) T=0. 5
570
FLANGE NUT M6X1.0X13DX6H
580
FLANGE BOLT M6X1.0X13DX20L
850
BREATHER PIPE 8DX11DX104L
-520
ELEMENT URETHANE FOAM
DEFLECTOR CP W/SCREEN
GASKET2(INSULATOR) T=0. 5
GASKET1 (INSULATOR) T=0. 5
-200
BASE CP
-220
PACKING
-250
COVER CP
-260
LABEL
