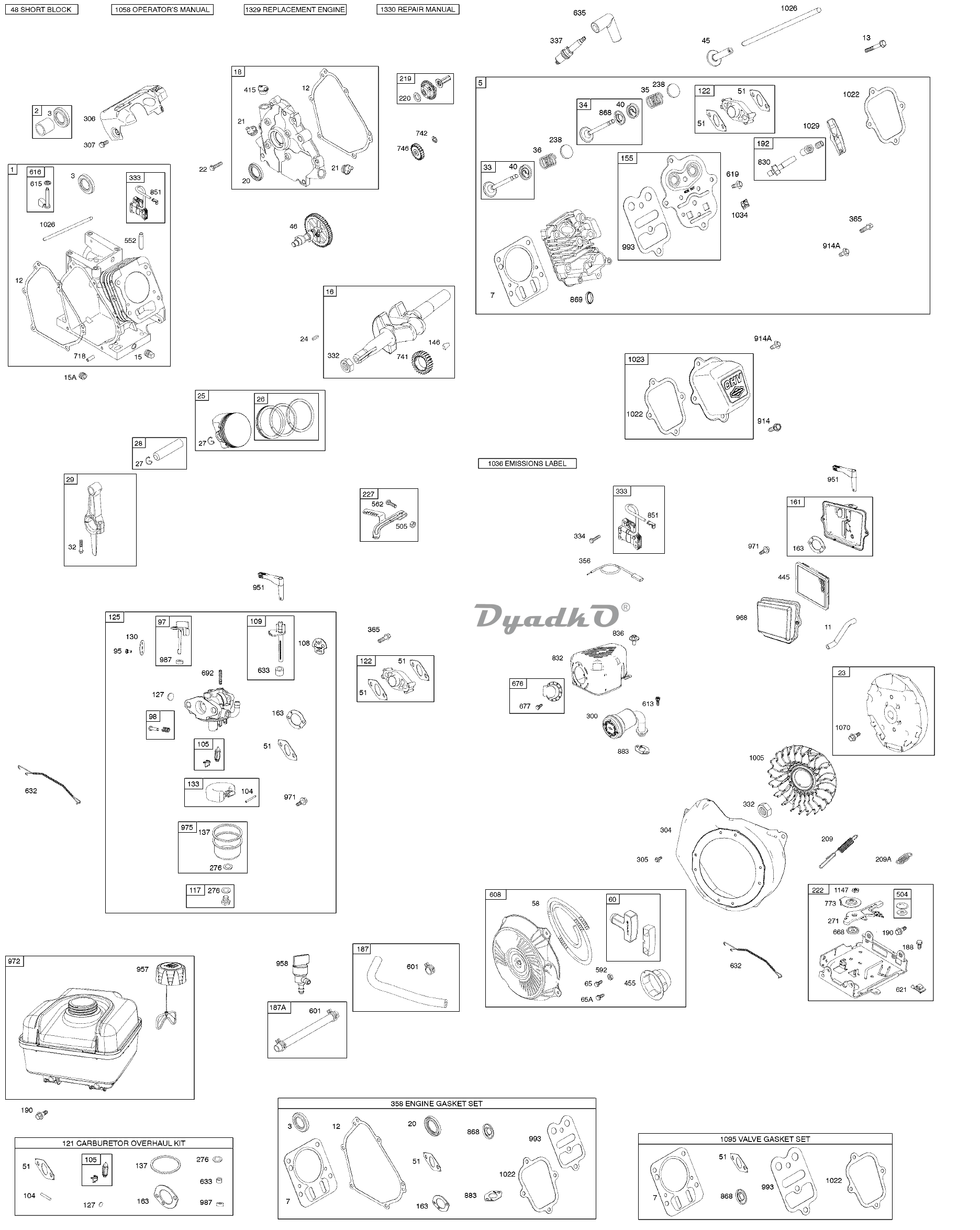

Схема CRAFTSMAN 917.986940 ENGINE, BRIGGS&STRATTON - MODEL NUMBER 12T402, TYPE NO.1613-F8

1 Cylinder Assembly
2 Kit-Bushing/Seal (Magneto Side)
3 Seal-Oil (Magneto Side)
5 Head-Cylinder
7 Gasket-Cylinder Head
11 Tube-Breather
12 Gasket-Crankcase
13 Screw (Cylinder Head)
15 Plug-Oil Drain
15A Plug-Oil Drain
16 Crankshaft
18 Cover-Crankshaft
20 Seal-Oil (PTO Side)
21 Cap-Oil Fill
22 Screw
23 (Crankcase Cover/Sump) Flywheel
24 Key-Flywheel (Steel)
25 Piston Assembly (Standard Size)
26 (.020\" Oversize)Ring Set (Standard Size)
27 Lock-Piston Pin
28 Pin-Piston
29 Rod-Connecting
32 Screw (Connecting Rod) (M6 x 31mm)
33 Valve-Exhaust
34 Valve-Intake
35 Spring-Valve (Intake)
36 Spring-Valve (Exhaust)
40 Retainer-Valve
45 Tappet-Valve
46 Camshaft
48 Short Block
51 Gasket-1ntake
58 Rope-Starter
60 Grip-Starter Rope
65 Screw (Rewind Starter) (#10-32 x .37)
65A Screw (Rewind Starter) (MS x 6.35mm)
95 Screw (Throttle Valve)
97 Shaft-Throttle
98 Kit-Idle Speed
104 Pin-Float Hinge
105 Valve-Float Needle
108 Valve-Choke
109 Shaft-Choke
117 Jet-Main (Standard)
121 Kit-Carburetor Overhaul
122 Spacer-Carburetor
125 Carburetor
127 Plug-Welch
130 Valve-Throttle
133 Float-Carburetor
137 Gasket-Float Bowl
146 Key-Timing
155 Plate-Cylinder Head
161 Base-Air Cleaner
163 Gasket-Air Cleaner
187 Line-Fuel (Formed)
187A Line-Fuel (Cut to required length)
188 Screw (Control Bracket)
190 Screw (Fuel Tank)
192 Adjustor-Rocker Arm
209 Spring-Governor (#3 Hole)
209A Spring-Governor (Idle Speed Adjust) (Platinum)
219 Gear-Governor
220 Washer (Governor Gear)
222 Bracket-Control
227 Lever-Governor Control
238 Valve-Cap
271 Lever-Control (Control Bracket)
276 Washer-Sealing
300 Muffler
304 Housing-Blower
305 Screw (Blower Housing)
306 Shield-Cylinder
307 Screw (Cylinder Shield)
332 Nut (Flywheel)
333 Armature-Magneto
334 Screw (Magneto Armature)
337 Plug-Spark
356 Wire-Stop
358 Gasket Set-Engine
365 Screw (Carburetor) (M6 x 35.5mm)
415 Plug
445 Filter-Air Cleaner Cartridge
455 Cup-Flywheel
504 Washer Set-Friction (Control Bracket)
505 Nut (Governor Control Lever)
552 Bushing-Governor Crank
562 Bolt (Governor Control Lever)
592 Nut (Rewind Starter)
601 Clamp-Hose (Green)
608 Starter-Rewind
613 Screw (Muffler) (M6 x 20mm)
615 Retainer-Governor Shaft
616 Crank-Governor
619 Screw (Cylinder Head Plate)
621 Switch-Stop
632 Spring/Link (Mechanical Governor)
633 Seal-Choke/Throttle Shaft (Choke Shaft)
635 Boot-Spark Plug
668 Spacer (Control Bracket)
676 Deflector-Muffler
677 Screw (Muffler Deflector)
692 Spring-Detent
718 Pin-Locating
741 Gear-Timing
742 Retainer-E Ring
746 Gear-Idler
773 Retainer (Control Bracket)
830 Stud-Rocker Arm
832 Guard-Muffler
836 Screw (Muffler Guard) (M6 x 14mm)
851 Terminal-Spark Plug
868 Seal-Valve
869 Seal-Valve
883 Gasket-Exhaust
914 Screw (Rocker Cover) (M6 x 15.88mm)
914A Screw (Rocker Cover) (M6 x 9.53mm)
951 Lever-Choke
957 Cap-Fuel Tank
958 Valve-Fuel Shut Off
968 Cover-Air Cleaner
971 Screw (Air Cleaner Base to Carburetor) (M5x12mm)
972 Tank-Fuel
975 Bowl-Float
987 Seal-Throttle Shaft
993 Gasket (Cylinder Head Plate)
1005 Fan-Flywheel
1022 Gasket-Rocker Cover
1023 Cover-Rocker
1026 Rod-Push
1029 Arm-Rocker
1034 Guide-Push Rod
1036 Label-Emissions (Available from any Briggs & Stratton Authorized Dealer)
1058 Operator\'s Manual
1070 Screw (Flywheel Fan)
1095 Gasket Set-Valve
1147 Nut (Control Bracket)
1329 Replacement Engine
1330 Repair Manual
Ring Set (.020\" Oversize)
Piston Assembly
Key-Flywheel (Aluminum)
