UHE 20 (00691000)

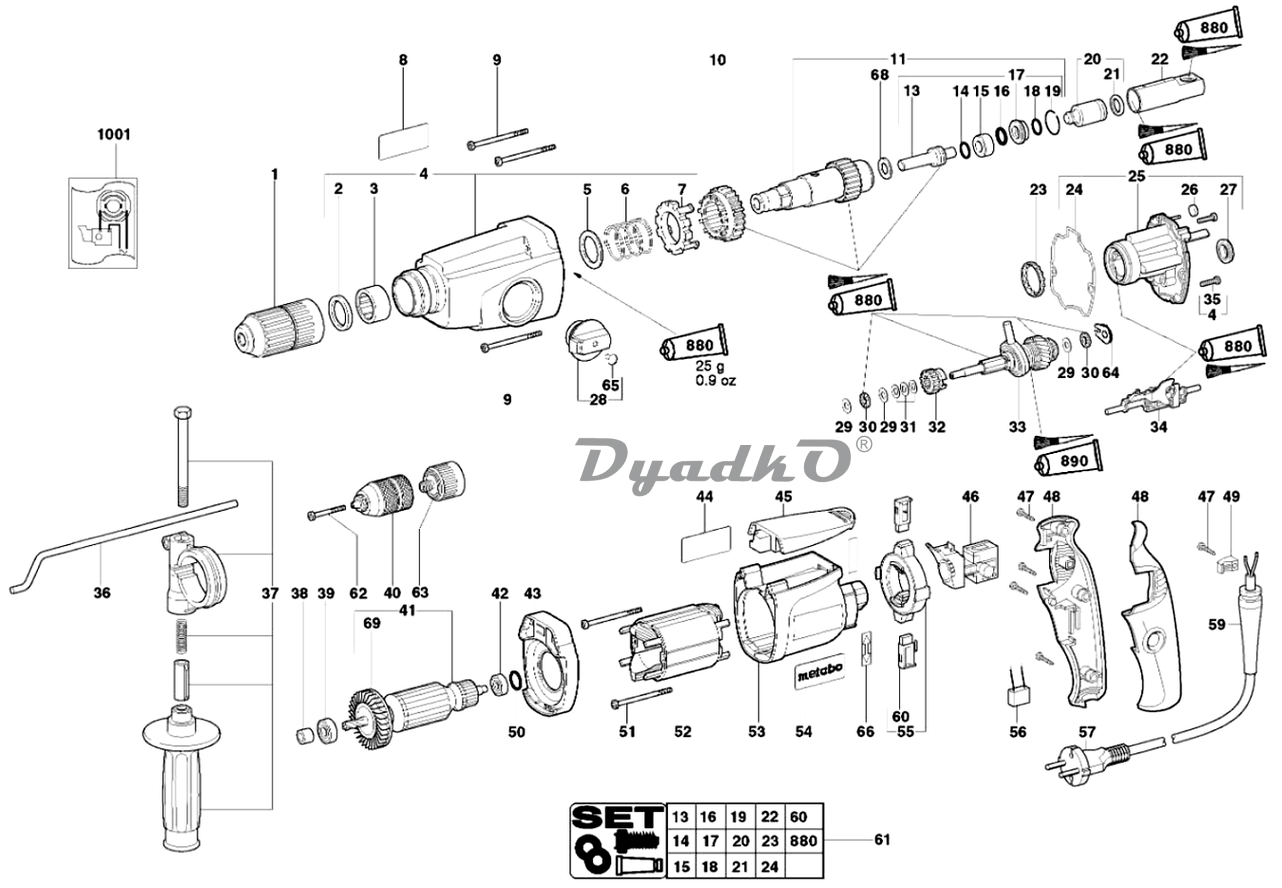

Схема METABO UHE 20 (00691000)
1
Adaptor SDS -PLUS
2
Shaft sealinq rinq
3
Needle sleeve
4
Gearhousinq cpl
5
Supporlinq disc
6
Pressure sprinq
7
Retaininq rinq
8
Indication label
9
Sett-tap.fill.h. screw
10
Slidinq block
11
Drilldrivinq sleeve cpl.
13
Intermediate striker cpl.
14
0-rinq
15
Support nq rinq
16
0-rinq
17
Catching sleeve cpl.
18
0-ring
19
Cirdip
20
Striker cpl.
21
Sealina rina
22
El
23
Ball holder
24
Seal
25
Gear flanqe cpl.
26
Fek seal
27
Rubber buffer
28
Control knob cpl.
29
Washer
30
Axial needle bearinq
31
Cup sprinq
32
Couplinq sleeve
33
Intermediate aear cpl.
34
Shift element
35
Fill.head screw(DIN 7985)
36
Depth stop
37
Support nq handle cpl.
38
Sealina rina
39
Ball bearinq,8x22x7
40
Futuro plus rina S2M 13 mm
41
Armaturecpl.230V
42
Ball bearinq, 6X 19X 6
43
Intermediate flanae
44
Ratina plate
45
Cover w.o. electronic
46
Electronic switch with dial
47
Self-tap. fill. h. screw
48
Pistol qrip 2 piece
49
Cable clip
50
0-rina
51
Sett-tap. fill. h. screw
52
Field coil230V
53
Motor housinq
54
M-Label,08 52x22
55
Brush hokler module
56
Interference suppr. cond.
57
Cablewith plua
59
Cable sleeve
60
Brushwith holder,230V/120V
61
Maintenance kit
62
Cap screw
63
Adaptor
64
Buttino sheet
65
Seal
66
Indication label
68
Rina
69
Fanw.prot. Grid
880
Grease FG 126
890
Grease SF 011 50Gr 18oz
1001
Diaqram
