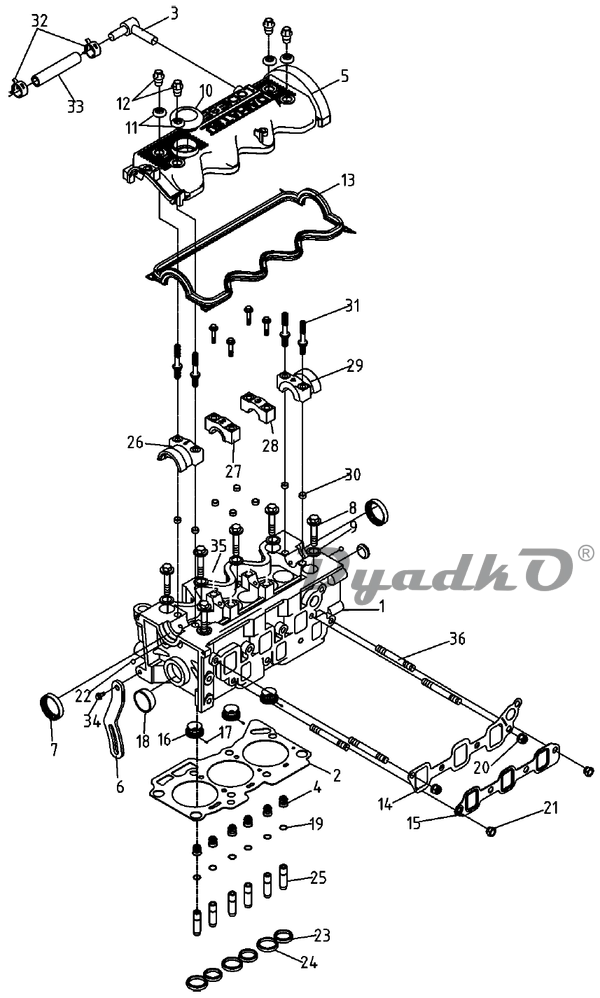

Схема (деталировка) дизельные двигатели с горизонтальным валом KIPOR KM376AG CYLINDER HEAD ASSEMBLY (KG376ZQC-1003000). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Cylinder Head Cover
2	Cylinder Head Cover Gasket
3	Breather Tie-in
4	Valve Oil Seal Cover Assembly
5	Cylinder Head Cover Assembly
6	Generator Adjusting Arm
7	T-style Oil Seal
8	Cylinder Head Cover Bolt
9	Cylinder Head Cover Bolt Gasket
10	Oil-filler Cap
11	Sheet Gasket
12	Cylinder Head Cover Bolt
13	Cylinder Head Cover
14	Intake Pipe Shim
15	Exhaust Pipe Shim
16	Combustion Chamber Inlay Block
17	Inlay Location Pin
18	Delivery Head
19	Spring Clip
20	Bolt
21	Bolt
22	Steel Ball 8.73123
23	Vent Base
24	Air In-take Base
25	Valve Leading Pipe
26	Crank Case 1#Bearing Cover
27	Crank Case 2#Bearing Cover
28	Crank Case 3#Bearing Cover
29	Crank Case 4#Bearing Cover
30	Holding Case
31	Double-Headed Bolt
32	Clip
33	Connecting Soft Pipe
34	Bolt Assembly M8X25
35	Bolt Assembly M8X45
36	Double-headed Bolt Assembly M10X1.25X25
