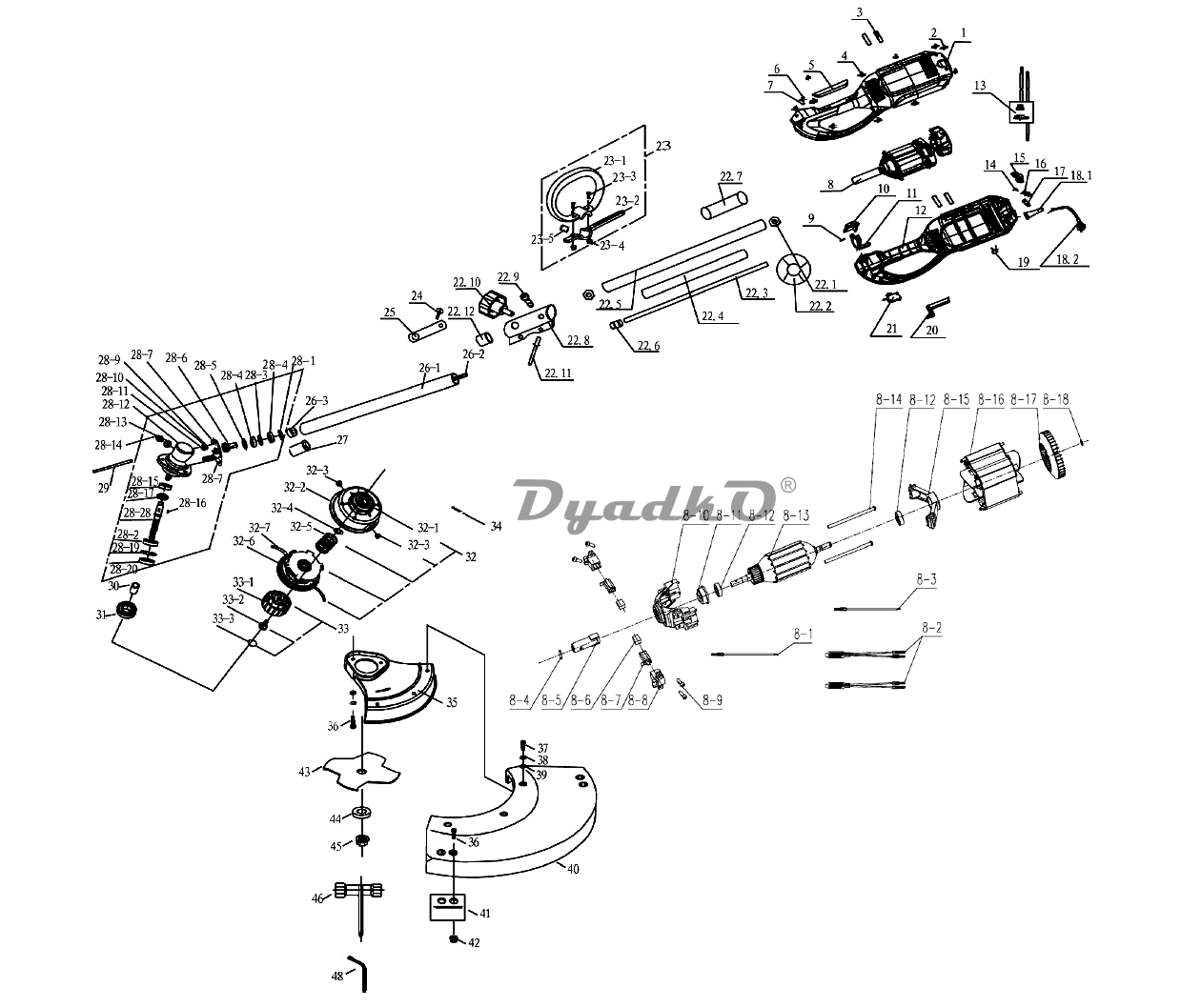

Схема CHAMPION (IGP) ET 1002 A

1 right housing
2 self-tapping screw 3*14
3 shock pad
4 self-tapping screw 4*18
5 soft grip
6 self-tapping screw 5*10
7 washer
8 motor module
8-1 Connecting wire 1
8-2 Connecting wire 5
8-3 Connecting wire 2
8-4 Pin
8-5 Connecting shaft
8-6 Carbon brush
8-7 Brush holder
8-8 Brush frame
8-9 Combination screw 4*12
8-10 Front support
8-11 Bearing sleeve
8-12 608 Bearing
8-13 Rotor
8-14 Machine screw 5*80
8-15 Rear support
8-16 Stator
8-17 Wind wheel
8-18 Cotter
9 compression spring
10 push button
11 limited block
12 left housing
14 torsion spring
15 wire holder
16 self-tapping screw 4*14
17 cable pressboard
18 electrical wire module
18.1 cable sheath
18.2 power wire
19 capacitance
20 switch trigger
21 microswitch
22 rear connection pipe module
22.1 retaining ring
22.2 orientation block
22.3 rear flexible shaft
22.4 limited block (ascending pipe)
22.5 rear connection pipe
22.6 connection
22.7 handle sheath
22.8 pipe joint
22.9 hex screw 6*12
22.10 knob
22.11 rivet
22.12 hoop
23 P-handle module
23.1 P-handle
23.2 lower fix pressboard
23.3 screw 5*20
23.4 nut M8
23.5 sleeve
24 rivet
25 reed
26 front shaft ass\'y
26-1 front shaft module
26-2 front soft shaft
26-3 flexible shaft clip
27 joint
28 gear shaft module
28-1 bore retaining ring
28-2 bearing
28-3 backup plate
28-4 bearing
28-5 C-retaining ring
28-6 spiral gear
28-7 screw
28-8 nylon nut
28-9 screw 5*12
28-10 washer
28-11 washer
28-12 gear shaft box
28-13 gasket
28-14 screw 8*10
28-15 bearing
28-16 woodruff key
28-17 bevel gear
28-18 output shaft
28-19 bore retaining ring
28-20 oil seal
29 round bar
30 shaft sleeve
31 collar
32 spool unit assemblage
32-1 nut
32-2 cutting head hub
32-3 rivet
32-4 jump spring
32-5 spring
32-6 bump spool module
32-7 nylon line
33 knob unit assemblage
33-1 knob
33-2 screw
33-3 knob cover
34 forelock
35 Plastic sheath
36 screw 5*12
37 screw 6*20
38 screw 6*20
39 screw 6*20
40 outside sheath
41 blade
42 nylon nut M8
43 blade
44 blade pressboard
45 hex nut
46 socket spanner
48 hex wrench
