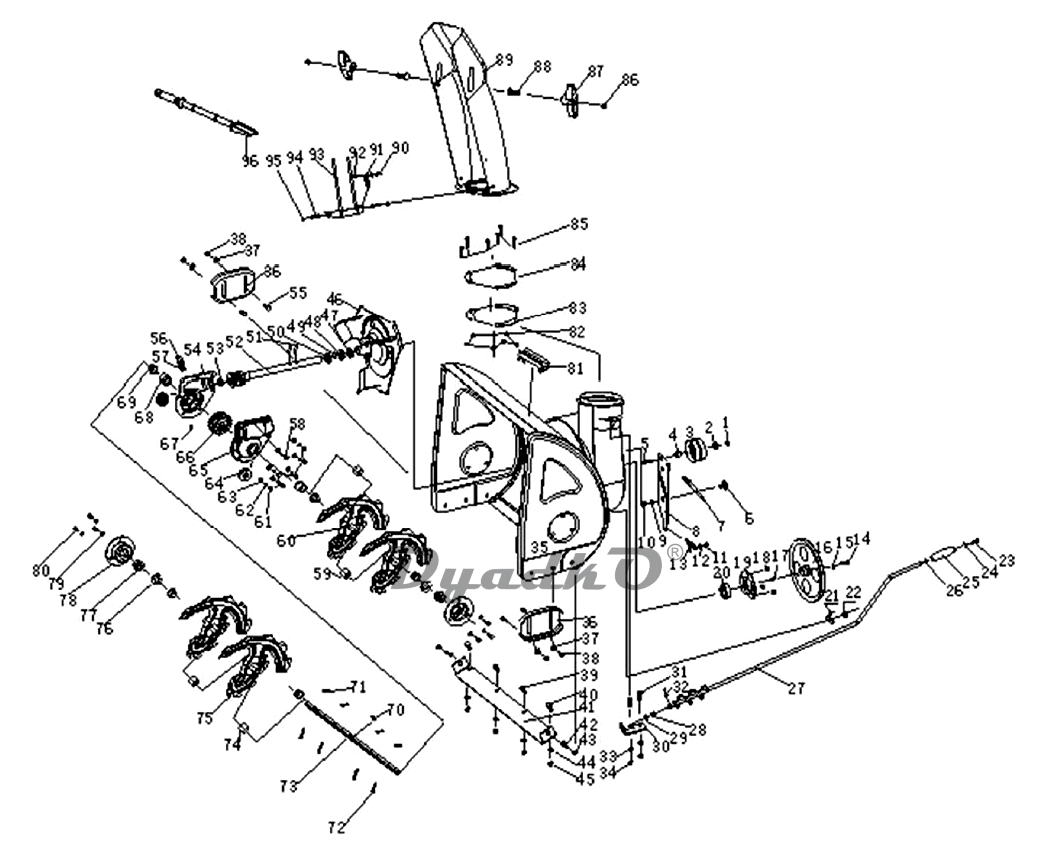

Схема MASTERYARD MX8522L Шнек, Кожух шнека, Рукав выброса снега

1 Non metal outside six angle locknut
2 SJ pad
3 SJ large tight wheel 2(with bearing)
4 SJ sleeve
5 Hexagon screw
6 SJ hexagonal bolt 1
7 SJ spring 1
8 SJ fixed plate
9 Flat gasket
10 Non metal outside six angle locknut
11 Non metal outside six angle locknut
12 Flat gasket
13 Spring 5
14 Hexagon screw
15 Flat gasket
16 SJ large belt pulley
17 Square key
18 Non metal outside six angle locknut
19 Round bottom cover
20 Spherical ball bearing
21 Belt guard
22 Non metal outside six angle locknut
23 Cross head screw
24 Flat gasket
25 SJ hand set
26 Flat gasket
27 Rocker
28 The mounting plate plastic ring
29 Flat gasket
30 Small mounting plate
31 Cup head square neck screw
32 Cotter pin
33 Flat gasket
34 Non metal outside six angle locknut
35 SJ box
36 SJ skid
37 Flat gasket
38 Non metal outside six angle locknut
39 Cup head square neck screw
40 Cup head square neck screw
41 SJ long baffle plate
42 Cup head square neck screw
43 Non metal outside six angle locknut
44 Flat gasket
45 Non metal outside six angle locknut
46 SJ Fan
47 Grease seal
48 Single direction thrust ball bearing
49 Spacer ring
50 Deep groove ball bearing
51 Coiled spring pin
52 SJ driving worm gear shaft
53 Deep groove ball bearing
54 SJ bottom base
55 Cup head square neck screw
56 Oil nipple
57 Corrugated gasket
58 Hexagonal bolt
59 The output shaft sleeve
60 Right auger
61 Hexagonal bolt
62 Spring washer
63 Flat gasket
64 Grease seal
65 SJ upper base
66 SJ worm gear
67 Cross head bolt
68 SJ output shaft sleeve
69 Drive shaft sleeve
70 Woodruff key
71 Pin buckle
72 The output shaft bolt
73 Output shaft
74 The output shaft sleeve
75 Left auger
76 Flat gasket
77 Axle sleeve
78 Bearing cap
79 Flat gasket
80 Hexagon screw
81 Shovel bracket
82 Non metal outside six angle locknut
83 Washer
84 Washer
85 Hexagon screw
86 Non metal outside six angle locknut
87 Handle locking
88 Cup head square neck screw
89 Snow chute
90 Hexagon screw
91 Spring 4
92 The six angle flange surface nut
