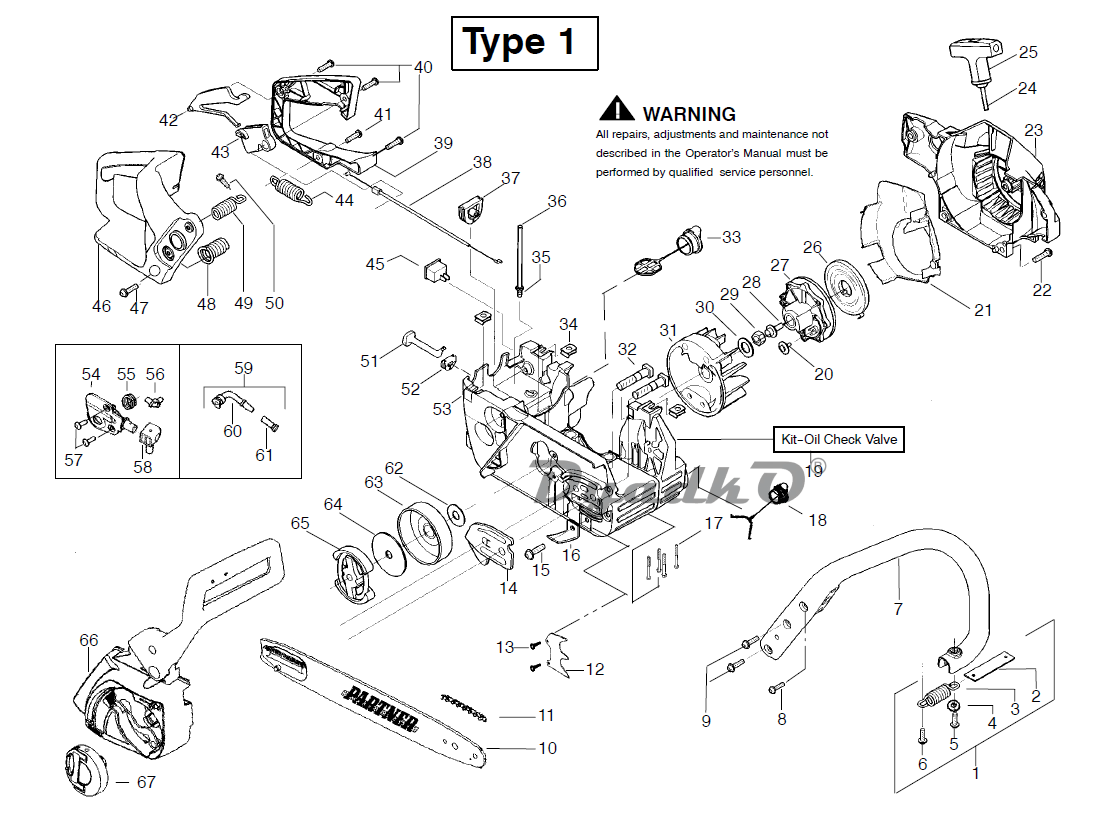

Схема PARTNER 401 Пила (Тип 1)
1.
Assy.-Isolator
2.
Strap-Limiter
3.
Spring-Isolator
4.
Washer
5.
Screw
6.
Screw
7.
Handle-Front
8.
Screw
9.
Screw
10.
Bar - 14”
11.
Chain - 14\"
12.
Kit-Assy Spike(incl.13)
13.
Screw
14.
Plate-Bar Mounting
15.
Screw
16.
Chain Catcher
17.
Screw
18.
Assy-Oil Cap
19.
Kit-Oil Check Valve
20.
Screw
21.
Baffle-Air
22.
Screw
23.
Housing-Fan
24.
Kit- Rope
25.
Handle-Starter
26.
Spring-Recoil
27.
Pulley-Starter
28.
Screw
29.
Nut-Flywheel
30.
Washer - Flywheel
31.
Assy-Flywheel
32.
Bolt-Bar
33.
Assy-Fuel Cap
34.
Nut-”U”-Type
35.
Fitting-fuel line
36.
Kit-Fuel line (large)
37.
Grommet-Cable
38.
Cable-Throttle
39.
Cover-Rear Handle
40.
Screw
41.
Screw
42.
Lockout- Throttle
43.
Trigger-Throttle
44.
Spring
45.
Kit-Switch
46.
Handle - Rear
47.
Screw
48.
Assy. Isolator - lower
49.
Kit-Isolator (Upper)
50.
Screw
51.
Knob-Choke
52.
Grommet-Knob
53.
Assy-Chassis
54.
Kit-Oil Pump (Incls. 55,56,58)
55.
Gear-Worm Spring
56.
Elbow-Oil Pickup
57.
Screw
58.
Seal Block
59.
Assy-Oil Pickup (Incl. 60-61)
60.
Pick-up Oiler
61.
Filter-Oil
62.
Washer-Thrust
63.
Assy.-Clutch Drum w/bearing
64.
Washer-Clutch
65.
Assy. Clutch
66.
Assy-Chain Brake
67.
Assy-Knob
Bar - 16”
Chain - 16\"
