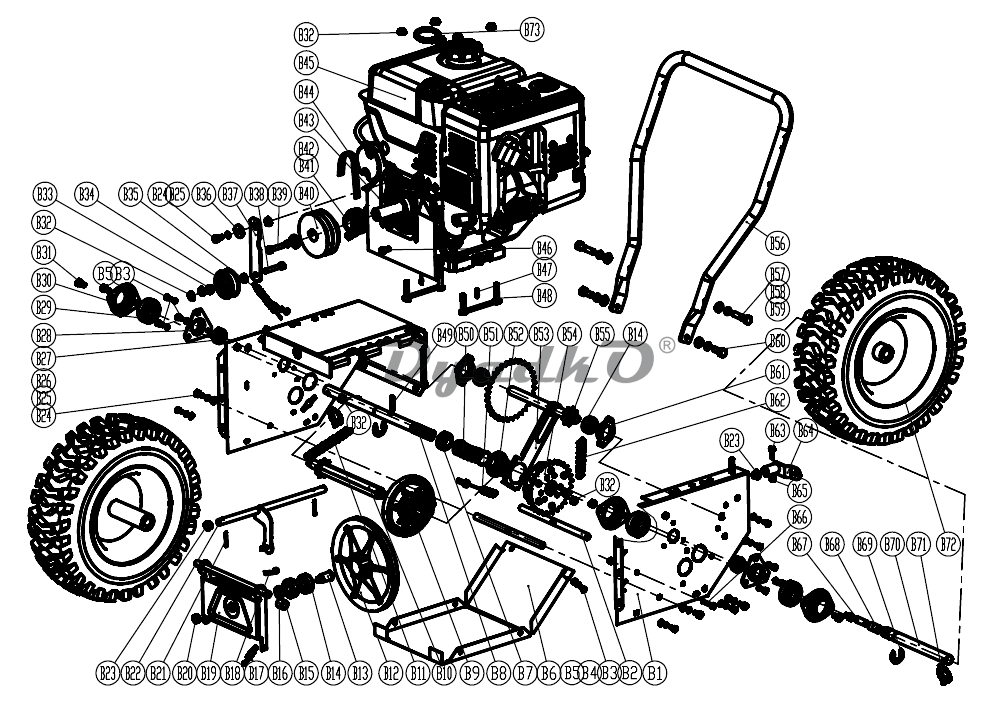

Схема HERZ SB-9EMS Система привода

1	boxbodv
2	strut bar
3	hex head bolt M6X12
4	flat washer 6
5	sprinq washer 6
6	cover, frame
7	Ring
8	Semi-Maior Axis
9	chanqe pulley assenbly
10	hexaaon axle
11	friction pulley
12	friction pulley
13	transmission belt shaft
14	bearinq
15	shaft washer
16	spacer
17	sprinq6
18	individual pen pinclcock
19	belt pulley bracket
20	taUlnwilMI
21	cotter Din2.5X25
22	shifting fork
23	plastic bushinq
24	hex head boltM8X16
25	sprinq washer 8
26	flat washer8
27	bearinq
28	triangle bearing housinq
29	bearinq
30	rhombus bearing hsinq
31	hex head boltM8X16
32	fo iltnRfMntitfl
33	casket
34	small tension pulley
35	sprinq
36	iumbo washer8
37	small tension plate
38	hexaqon head bolh HSX45
39	heiagon heal bolt WHIX35
40	small belt pulley
41	belt pulleyl
42	belt pulley2
43	bushinc for drivinQ shaft
44	belt
45	enaine
46	hex head bolt M8X1D
47	cpenfipe blind riwttXI
48	twin bolt
49	sprinq pin
50	bio sprinq
51	Wire
52	auxiliary clutch
53	Clutch fork
54	differential
55	Shaft Assembly
56	handle lower
57	hex head boltNIOXiS
58	sprinq washer 10
59	flat washerlO
60	hex head bolt MWX2S
61	Berina Pedestal
62	roller chain
63	hex head belt M6X30
64	qear connector
65	IttpHntititiJrwlfll
66	hex head bolt M6X35
67	Core shaft
68	Shaft Sleeve
69	SDlit Washer 22
70	Short Semiaxis
71	D Pin 8X50
72	skidproof tyre
73	Pull button
