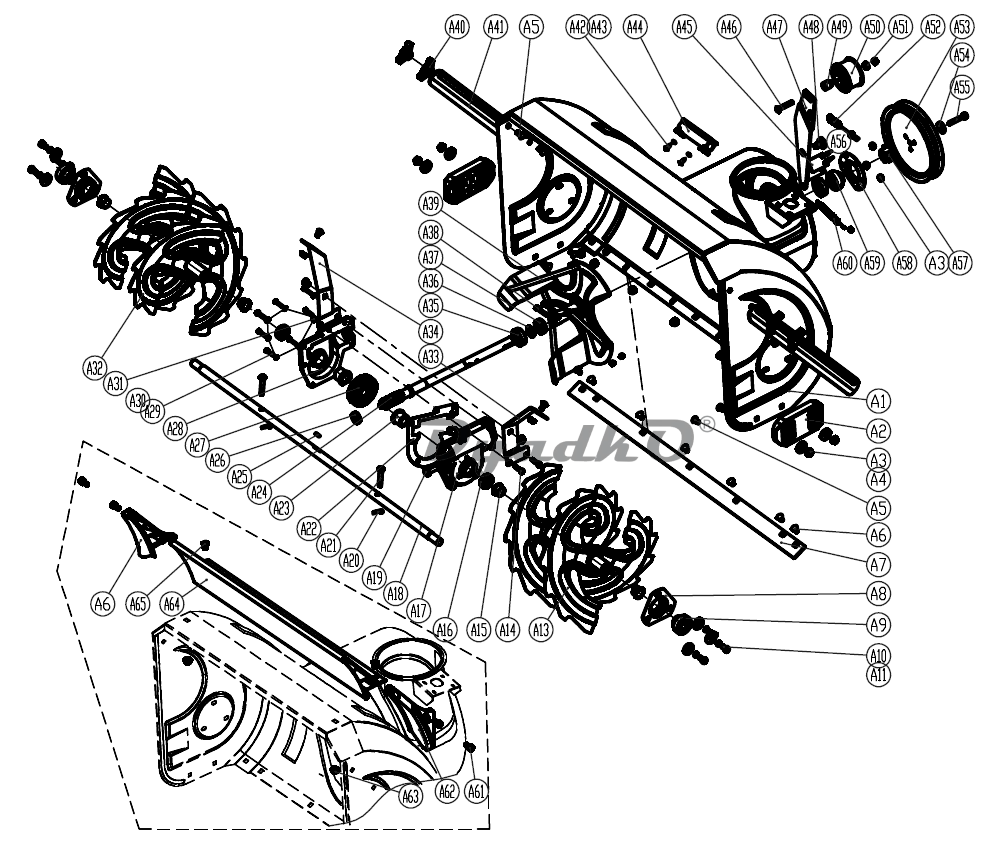

Схема HERZ SB-9EMS Шнек, Кожух шнека

1	housina assemly
2	slide shoe
3	tatWiMrnfhlrsifll
4	biq washer8
5	carriaqe bolt M8X20
6	Left Cover
7	shave plate
8	bearinq cover
9	bearinq
10	hexaqon boltM8X15
11	sprinq washer 8
13	auqer riqht
14	hexaqon leadbolt K6X30
15	small bushinq
16	Fmucitsdtyriirai
17	worm housinq riqht
18	output shaft(740l
19	hex flanq boltH«X20
20	individual pen pinchcock
21	safety screw
22	Daoer washer
23	output-shaft sleeve(M)
24	worm shaft
25	parallel keyB6X6X18
26	bearinq16001
27	worm qear
28	worm housinq left
29	hexaqon head bolt K6X2II
30	sprinq washer 6
31	lioaqon ni nlk mmhl ii»rlt%
32	auqer left
33	bracket riqht
34	bracket left
35	bearing6004
36	bushinq
37	bearinq51104
38	hexaqon head bolt M6)0!
39	fan
40	plastic nut
41	Housinq Strut
42	ptilppiOilHHiillli
43	flah washer 6
44	bracket f er simv remoral twl
45	shave plate
46	carriaqe bolttTOO
47	fixed plate
48	hexaqon screw
49	Dad
50	biq tension pulley
51	pad
52	aucer Dull wire
53	belt pulley
54	iumbo washer8
55	hex head belt, left MIX4I
56	open hype blind rwKXM
57	pulley shaft
58	bearinq cover
59	ball bearina
60	sprinq5
61	herapffltetupmvHHK
62	Riqht Cover
63	hex flange lock nut H8
64	Hiaher Panel
65	carriaqe bolhM8X20
