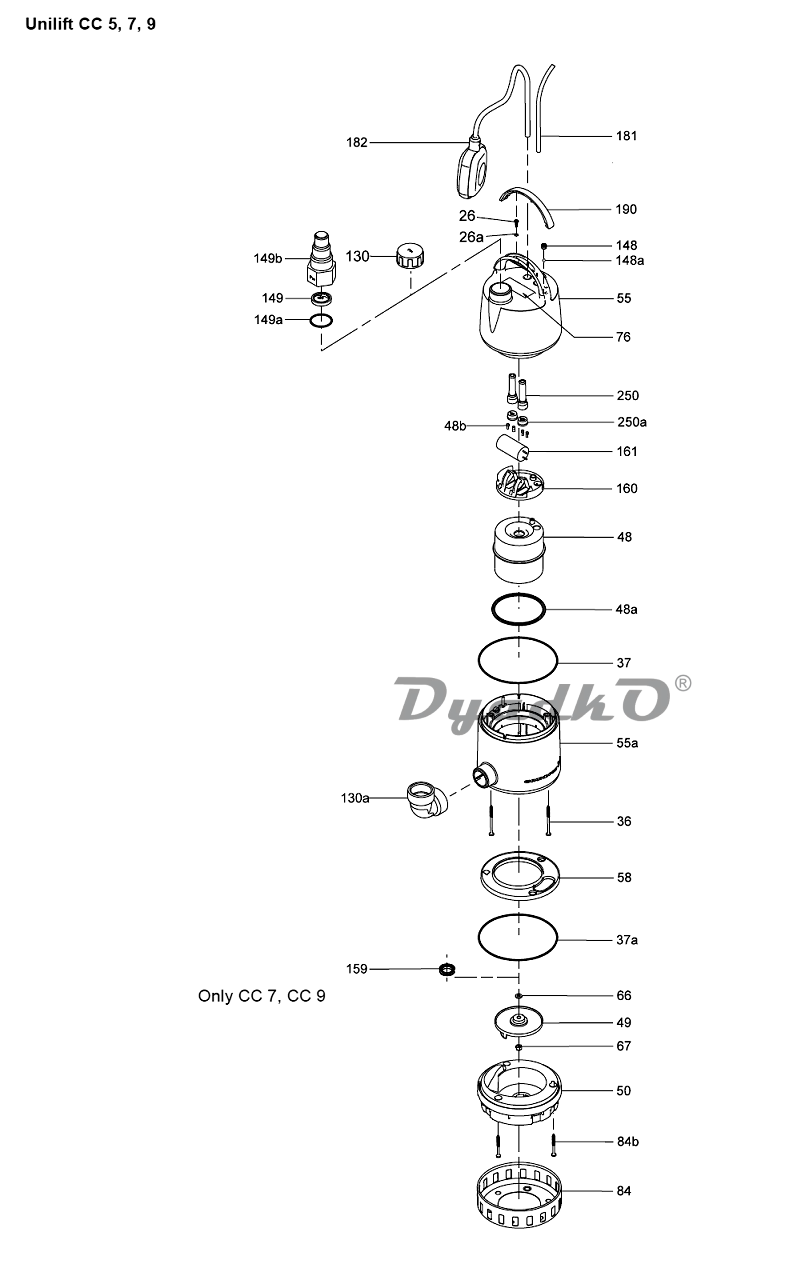

Схема GRUNDFOS UNILIFT CC 5, UNILIFT CC 7, UNILIFT CC 9 Unilift CC 5, 7, 9

37a O-ring
48 Motor
48a O-ring
48b Cable crimp
49 Impeller
50 Pump housing, inlet
66 Washer
67 Nut
84 Strainer
130a Discharge elbow GAS 1 1/4 - GAS 1 1/4
149 Rubber flap valve
149a O-ring
149b Discharge connection
159 V-ring
161 Capacitor
181 Cable, 10 m
182 Float switch
190 Handle cover
250 Cable entry
250 Cable entry
250a Cable relief
250a Cable relief
нет описания
РЕМКОМПЛЕКТЫ В СБОРЕ:
нет описания
_ Kit Bottom part CC 5, 7, 9 (поз.37a, 50)
_ Kit Cable CC 5 (поз. 181, 250, 250a, 48a, 48b) Schuko 50 Hz
_ Kit Cable CC 5 (поз. 181, 250, 250a, 48a, 48b) None 50 Hz
_ Kit Cable CC 7, CC 9 (поз. 181, 250, 250a, 48a, 48b) Schuko 50 Hz
_ Kit Cable CC 7, CC 9 (поз. 181, 250, 250a, 48a, 48b) None 50 Hz
_ Kit Discharge connection CC 5, 7, 9 (G)(поз.130a, 149a, 149b)
_ Kit Discharge connection CC 5, 7, 9 (NPT)(поз.130a, 149b)
_ Kit Float switch 50 Hz (поз.182, 250, 250a, 48a, 48b)
_ Kit Float switch 60 Hz (поз.182, 250, 250a, 48a, 48b)
_ Kit Impeller CC 5 (поз.48a, 49, 66, 67) 50 Hz
_ Kit Impeller CC 7 (поз.48a, 49, 66, 67, 159) 50 Hz
_ Kit Impeller CC 9 (поз.48a, 49, 66, 67, 159) 50 Hz
_ Kit Impeller CC 5 (поз.48a, 49, 66, 67) 60 Hz
_ Kit Impeller CC 7 (поз.48a, 49, 66, 67, 159) 60 Hz
_ Kit Impeller CC 9 (поз.48a, 49, 66, 67, 159) 60 Hz
_ Kit Motor CC 5 (поз.48, 48a, 48b) 50/60 Hz 230 V
_ Kit Motor CC 7 (поз.48, 48a, 48b) 50/60 Hz 230 V
_ Kit Motor CC 9 (поз.48, 48a, 48b) 50/60 Hz 230 V
_ Kit Discharge connection CC 5, 7, 9 (G)(149a, 149b)
_ Kit Discharge connection CC 5, 7, 9 (NPT)(149b)
_ Kit Capacitor CC 5 (поз.48b, 161) 50/60 Hz 230 V
_ Kit Capacitor CC 7, CC 9 (поз.48b, 161) 50 Hz 230 V
_ Kit Capacitor CC 7, CC 9 (поз.48b, 161) 60 Hz 230 V
_ Kit O-ring СС 5, 7, 9 (37a, 48a, 149a)
_ Kit Flap valve CC 5, 7, 9 (поз.149, 149a)
