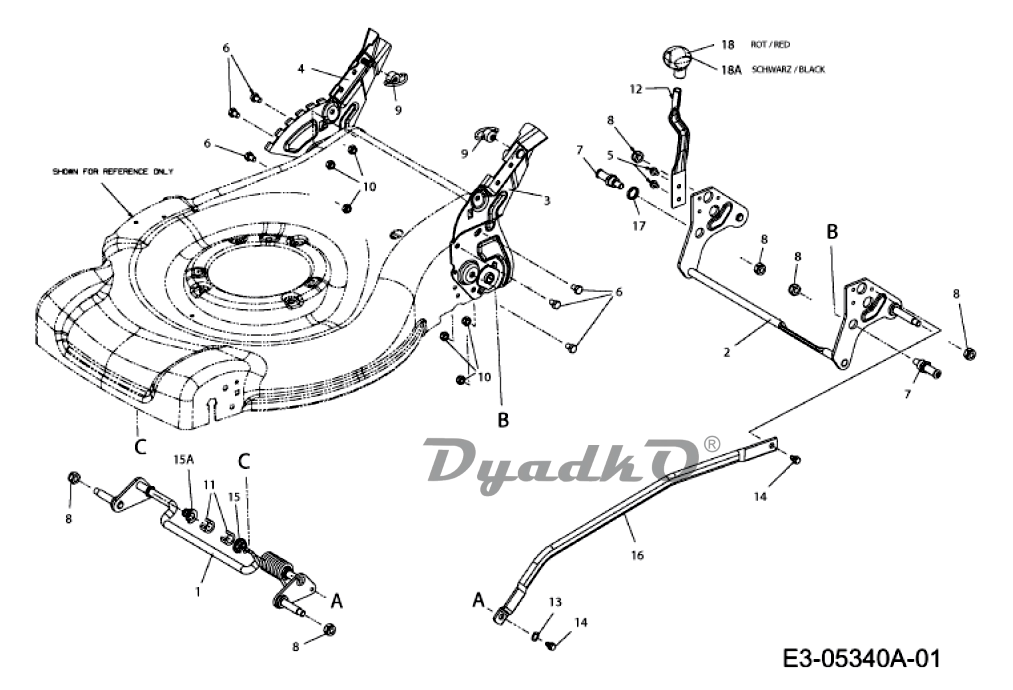

Схема (деталировка) газонокосилки бензиновые MTD SPB 53 HW (12AI869H678) (2010) Cutting height adjustment. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	BRKT ASM:FRONT:HIGH WHL:800 MTD SCHWARZ
2	BRKT ASM:RR:800:HIGH WHL MTD SCHWARZ
3	BRKT ASM:HNDL:LH HIWHL:19\"EXP PRESSTEIL
4	BRKT ASM:HNDL:RH:HW:18/800 EU SCHWARZ LACKIERT
5	SCREW:TT:1/4-20:0.375:HXINDWSH FINISH:MTD SPEC-100016
6	SCREW:HEX:M8X12 DIN 933-8.8 MTD SPEC-100015 21.1441.67
7	SHFT:.500 DIA:M10 THRD FINISH:PHOS AND OIL SIEHE ZG.
8	NUT:HEX:M10x1.25 DIN 985 FINISH:MTD SPEC-100015
9	TOGGLE NUT 3/8-16 UNC MIT BEWEGLICHEM KNEBEL
10	NUT:HEXLK:M8-1.25 NYLON DIN985 FINISH:SPEC-100015 24.1426.18
11	AXLE CLAMP RING 731-05470
12	SPR:LEVER:HIGH WHEEL 732-04480A
13	WASH:WAVE:.385IDX.598 OD FINISH:SPEC 100016
14	SCR:SHLDR:1/4-20:0.50:HXINDWSH FINISH:MTD STD SPEC-100015
15	BRG:FLG:HEX SPLIT .500 ID 741-04136B SCHWARZ
15A	BRG:SUPT:AXLE 741-04516A *
16	нет описания
17	SPCR:.690X.870X.150 750-05061
18	KNOB HEIGHT ADJUSTMENT LEVER FINISH:VERKEHRSROT 788-0719
18A	KNOB HEIGHT ADJUSTMENT LEVER FINISH:SCHWARZ 788-0637
