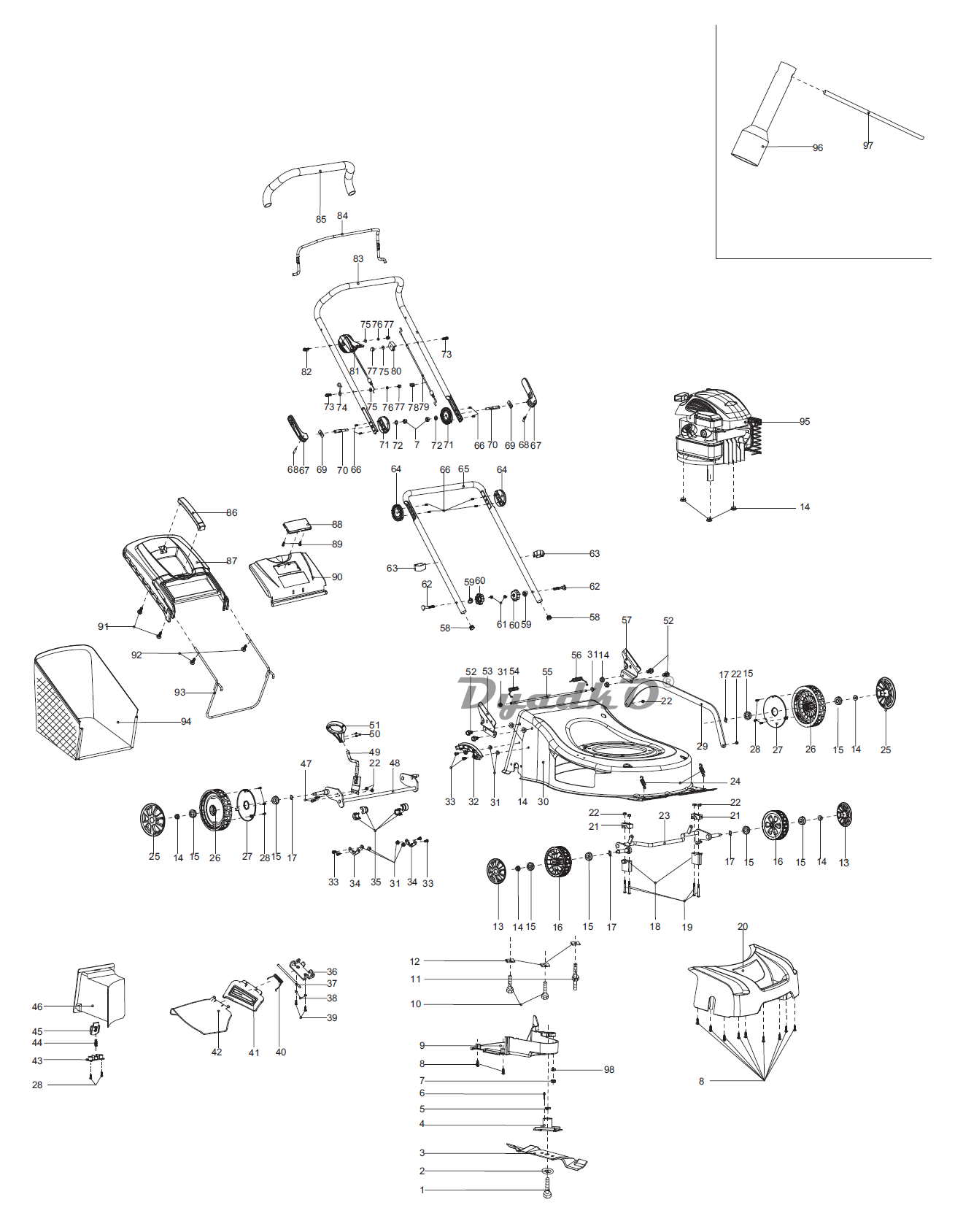

Схема MAKITA PLM 4617

1 BLADE TIGHTEN SCREW 3/8\", L=40mm
2 LID SHAPE WASHER 044.5/10.2x2.5
3 BLADE 460mm
4 BLADE SUPPORT
5 BLADE SUPPORT BUSH
6 FLAT KEY 4.7x4x4.7
7 HEXAGONAL LOCKING NUT M8
8 SELF-TAPPING SCREW 5x16
9 BELT COVER
10 HEXAGON BOLT M8x35
11 SPECIAL SCREW M8x17x35
12 SQUARE GASKET ф10
13 WHEEL COVER 8\"
14 HEXAGONAL LOCKING NUT M8
15 BEARING
16 WHEEL ASSY 8\"
17 WAVE WASHER ф12x4)18x0.5
18 LOWER SUPPORT OF WHEEL AXIS
19 BOLT M6x60mm
20 FRONT COVER 18”
21 UPPER SUPPORT OF WHEEL AXIS
22 LOCKING NUT M6
23 FRONT WHEEL AXLE 18”
24 EXTENSION SPRING OF FRONT WHEEL AXLE
25 WHEEL COVER 11”
26 WHEEL ASSY 11”
27 DUST COVER 11”
28 SELF-TAPPING SCREW ST4x16
29 LINK ROD 18”
30 DECK 18\",M AKITA
31 HEXAGONAL LOCKING NUT M6
32 HEIGHT ADJUSTMENT PLATE 18\"
33 TRIGGER BOLT M6x12
34 RING OF AXLE FIXING
35 AXLE SHEATH
36 FIXED PLATE
37 AXLE
38 SPRING WASHER ф5
39 TRIGGER BOLT M5*10
40 TORSION SPRING ф3.1
41 SIDE DISCHARGE COVER
42 PROTECTION COVER
43 PRESSING PLATE
44 SPRING ф8.0*0.9*31 mm
45 LOCKING BUTTON 20\"
46 MULCHING KIT
47 TRIGGER BOLT M6x14
48 REAR WHEEL AXLE 18”
49 HANDLE ASSY 18”
50 SCREW M5x8
51 GRIP
52 HEXAGON HEAD BOLT M8x6
53 BRACKET HANDLE, RIGHT 18”, MAKITA
54 TORSION SPRING, RIGHT
55 LONG POLE ф6,18\"
56 TORSION SPRING, LEFT
57 BRACKET HANDLE, LEFT 18\", MAKITA
58 TUBE PLUG ф22mm
59 WASHER
60 STAR KNOB
61 NUT M8
62 FLAT HEAD BOLT M8x52
63 BOWDEN CABLE CLAMP
64 LOWER ADJUSTING TOOTH RING
65 HANDLE, LOWER PART
66 BOLT 3x10
67 LOCKING HANDLE
68 CYLINDRICAL PIN 5x20
69 PRESSING PLATE
70 BOLT M8x69
71 UPPER ADJUSTING TOOTH RING
72 FLAT WASHER ф16x4)8x0,8
73 BOLT M6x35
74 CABLE HOOK
75 WASHER ф16x4)8x0,8
76 SPRING WASHER ф6,65
77 HEX. LOCK NUT M6
78 CORD PROTECTING SHEATH
79 CONTROL CABLE (MOTOR BRAKE) 960mm
80 FIXED BRACKET
81 THROTTLE HANDLE ASS\'Y
82 BOLT M6x50
83 UPPER HANDLE
84 LEVER, MOTOR BRAKE
85 HANDLE SHEATH ф22x4)32x500
86 GRASS CATCHER HANDLE
87 GRASS-BOX, UPPER 60L
88 TRANSPARENT WINDOW
89 SELF-TAPPING SCREW ST4x12
90 REAR FLAP ASS\'Y
91 SELF-TAPPING SCREW 8x19
92 BOLT 4,2x18
93 GRASS CATCHER BRACKET 18720\"
94 GRASS CATCHER 60L, MAKITA LOGO
95 ENGINE 500/158CC/2.2KW /2600rpm,B&S,XA Q.Makita
