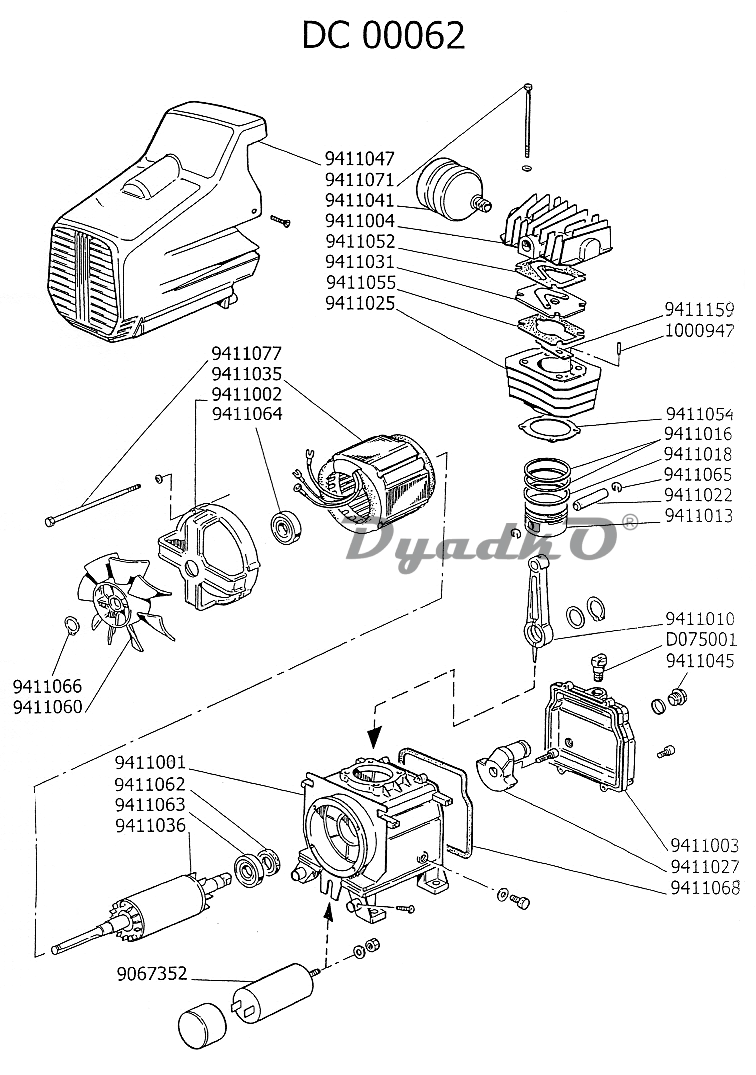

Схема FUBAG DC 2,5/50 CM2.5 Компрессорная головка DC00062

1 CRANKCASE BALMA (7010001)
2 CYLINDER D51 BALMA H=70.4
3 HEAD BALMA (7010004)
4 CRANKSHAFT BLM D23 S20(7070001
5 CRANKCASE FRONT COVER(7010003)
6 VALVE PLATE BALMA D51(7080002)
8 CONROD BALMA 2,5 D51 (7020002)
12 PISTON D51 (7030002)
14 PISTON PIN D51 (7050002)
15 SEEGER INTERN D13 (7190001)
16 SEAL D51 YZ
18 OIL SEGMENT D51 YZ
23 AIR FILTER D90 20*1,5(7110002)
30 BEARING 6204 (7180001)
30 BEARING 6202 2RS (7180002)
32 OIL LEVEL 27*1,5 (7130001)
33 OIL PLUG FOR DC PUMP
34 OIL GASKET 20*40*7 (7170001)
43 BACK COVER MOTOR BALM(7010002)
45 SEEGER EXTERN D13,5 (7190002)
46 MOTOR FAN FENGLI NYLON 6.6
47 ROTOR 2,5HP 230/50 188 ALU
48 STATOR 2,5 230/50 188P ALU
49 PLASTIC COVER BALMA (7140001)
60 GASKET CARTER COV.BLM(7220001)
61 GASKET CYL-CART DC2/DC2,5(0,8)
62 GASKET CYL-VALV 51 BLM(7150006
64 GASKET HEAD VALVE BLM(7150003)
80 CAPACITOR 30MF CE 450V M8 D55
101 TANK 50 3020 DC2 CAR 8B MOR
102 WHEEL D.150 D15 L37 (0060001)
103 RUBBER FOOT H=45 D=59 55HS
105 NON RET.VAL. 1/2- BIC10V
106 QUICK COUPLING 1/4\"M (0140007)
107 DRAIN.VALVE 3/8\"
108 PRESS.RED 11/4 01/4 Gl/8 STD R
109 GAUGE 40 1/8 S 0-12
109 GAUGE 50 1/4 S 0-16 8BAR
110 SAF.VALVE 1/4\" STAMPED(0160007
114 WHEEL PIN D15 M12 150(0070001)
116 PLUG HANDLE 17/20 RA20(0120001
118 EXTENS.M/M R3/8 R3/8 H60 EXAG.
127 RILSAN PIPE 4/6 BLACK(0280001)
131 PRESS.SW.4W 3/8\"OL200(0210002)
132 CORD 3X1X1300 SCHUKO (0100002)
300 KIT WHEELS D150 1RF 50L
509 SCREW PARKER 5X16 ZINC
515 SCREW TCEI M5X16 8.8 (7200004)
Sl45 SEND.PIPE DC2,5 NEW (SHORT)
