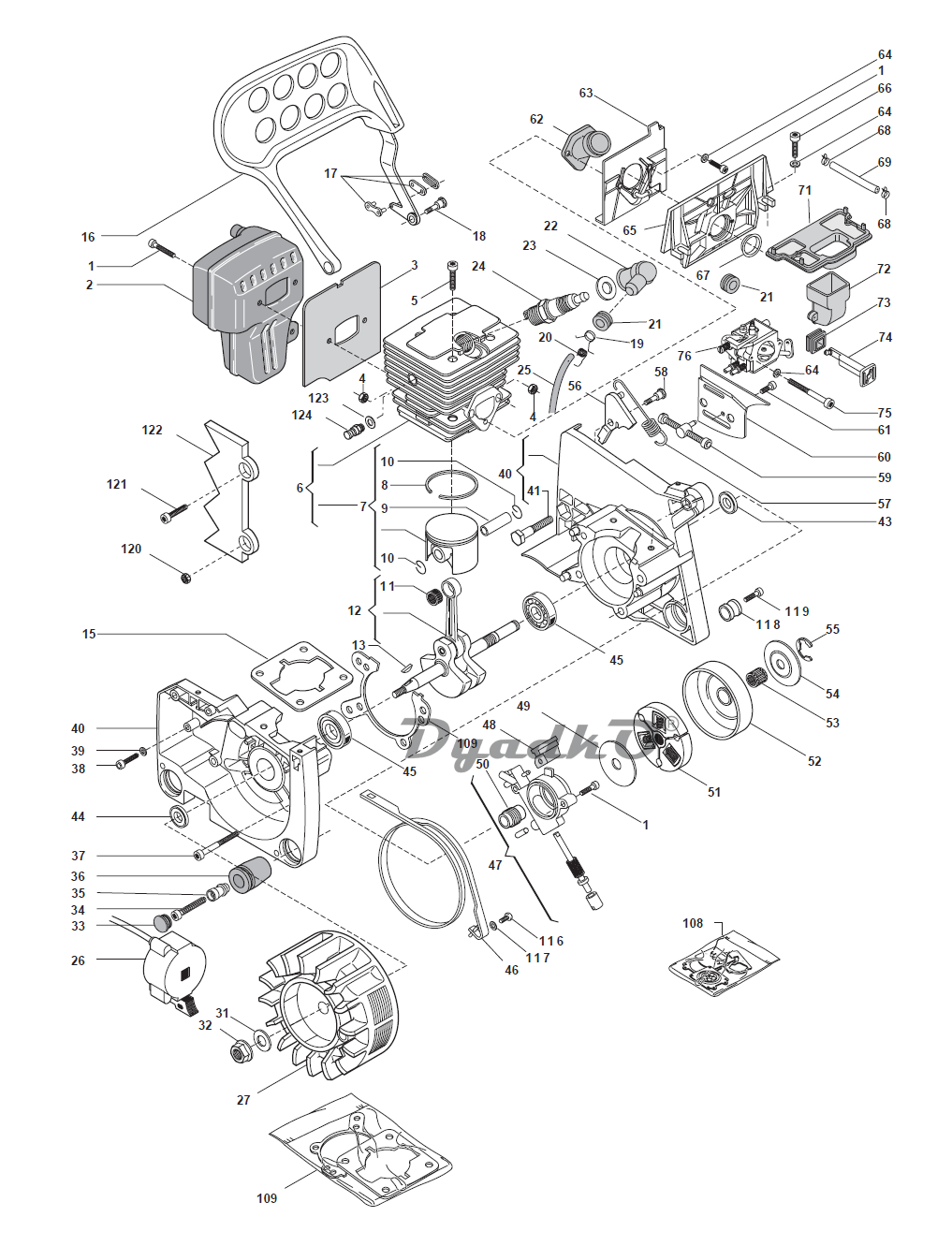

Схема ALPINA P 510 (225120000/06) 2006 Двигатель

1	SCREW
2	MUFFLER ASSY
3	MUFFLER GASKET
4	NUT
5	SCREW
6	CIL.-PISTON ASSY Ø 42
6	CIL.-PISTON ASSY Ø 45
7	PISTON ASSY Ø 42 (INCL.8÷10)
7	PISTON ASSY Ø 45 (INCL. 8÷10)
8	PISTON RING Ø 42
8	PISTON RING Ø 45
9	PISTON PIN X MOD. Ø 42
9	PISTON PIN X MOD. Ø 45
10	CIRCLIP
11	NEEDLE BEARING
12	CRANKSHAFT (INCL. 11)
13	FLYWHEEL KEY
15	CYLINDER GASKET
16	HAND-GUARD
17	CHAIN CONNECTION
18	PIN
19	CLAMP
20	SPARK PLUG SPRING
21	GROMMET
22	SPARK PLUG COVER
23	WASHER
24	SPARK PLUG
25	SPARK PLUG CABLE
26	ELECTR. COIL (INCL.25)
27	FLYWHEEL
31	WASHER
32	NUT
33	CAP
34	SCREW
35	BUSHING
36	SHOCK ABSORBER
37	SCREW
38	SCREW
39	WASHER
40	CRANKCASE ASSY
41	SCREW
43	SEAL RING
44	SEAL RING
45	BALL BEARING
46	BRAKE BAND
47	OIL PUMP ASSY
48	GASKET
49	WASHER
50	FEMALE SCREW
51	CLUTCH ASSY (3)
52	SPROCKET
53	NEEDLE BEARING
54	WASHER
55	CIRCLIP
56	CHAIN BRAKE LEVER
57	SPRING
58	PIN
59	CHAIN TENSIONER
60	PLATE
61	SCREW
62	INTAKE MANIFOLD
63	FLANGE ASSY
64	WASHER
65	SUPPORT CARBURET-
66	SCREW
67	BUSHING
68	CLAMP
69	CARB. PULSE PIPE
71	AIR FILTER SUPPORT
72	AIR FILTER HOLDER
73	GROMMET
74	CHOKE LEVER
75	SCREW
76	CARBURETTOR
108	DIAPH.-GASKET SET
109	GASKET SET
116	SCREW
117	WASHER
118	CHAIN GUARD
119	SCREW
120	NUT
121	SCREW
122	SPIKE
123	WASHER
124	ASSY DECOMPRESSOR
