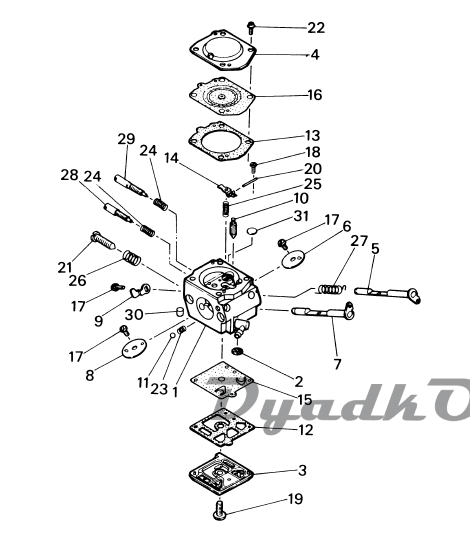

Схема ZENOAH G 621 AVS Карбюратор

1	BODY ASSY
2	SCREEN, inlet
3	COVER, pump
4	COVER, diaphragm
5	SHAFT ASSY, throttle
6	VALVE, throttle
7	SHAFT ASSY, choke
8	VALVE, choke
9	STOP, throttle
10	VALVE, inlet
11	BALL, friction
12	GASKET, pump K2
13	GASKET, diaphragm K2
14	LEVER, metering
15	DIAPHRAGM, pump K3
16	DIAPHRAGMASSY K3
17	SCREW, valve
18	SCREW, metering lever
19	SCREW, pump cover
20	PIN, metering lever
21	SCREW, idle speed
22	SCREWASSY
23	SPRING, friction
24	SPRING, needle adjust
25	SPRING, metering lever
26	SPRING, idle speed
27	SPRING, throttle return
28	NEEDLE, high speed
29	NEEDLE, idle
30	PLUG, friction
31	PLUG, welch
K3	DIAPHRAGMKIT OP
K2	GASKET KIT OP
_	CARBURETOR ASSY
