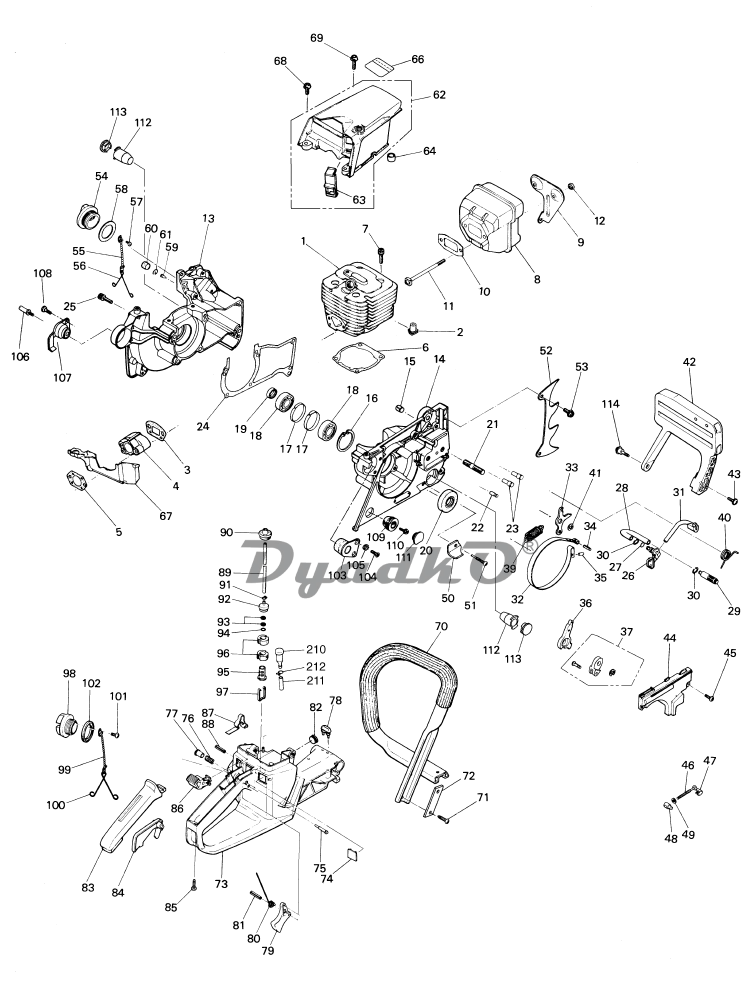

Схема ZENOAH G 621 AVS Цилиндр, Ручка, Картер

1 CYLINDER
2 GROMMET
3 GASKET, insulator K1
4 INSULATOR
5 GASKET, carburetor
6 GASKET, cylinder base
7 BOLT
8 MUFFLER
9 STAY
10 GASKET, muffler
11 BOLT
12 NUT
13 CRANKCASE MAG
14 CRANKCASE PTO
15 PIN
16 SNAP RING
17 RING
18 BEARING
19 OIL SEAL, MAG
20 OIL SEAL, PTO
21 STUD
22 SPRING PIN
23 PIN, brake arm
24 GASKET, crankcase K1
25 BOLT
26 PIPE, oil
27 O-RING
28 PIPE
29 WEIGHT
30 CLIP
31 PIPE, oil
32 BAND, brake
33 ARM, brake
34 SPRING PIN
35 ROLLER
36 LEVER
37 STOPPER COMP.
39 SPRING, brake
40 SPRING
41 SNAP RING
42 GUARD
43 SCREW
44 COVER, brake
45 SCREW
46 SCREW, chain adjust
47 STOPPER, adjust screw
48 NUT (A)
49 WASHER
50 CATCHER, chain
51 SCREW
52 SPIKE
53 SCREW
54 CAP, oil tank
55 CHAIN, cap
56 STOPPER
57 SCREW
58 GASKET
59 VALVE
60 SEAL, breather
61 CLIP
62 COVER COMP., cylinder Incl. 62 thru 63
63 GROMMET
64 CAP, cylinder cover Incl. 73 thru 82
66 LABEL
67 SEAL, cylinder cover
68 SCREW
69 SCREW
70 FRONT HANDLE COMP.
71 SCREW
72 PLATE
73 REAR HANDLE COMP.
74 PLATE
75 STOPPER
76 SPRING
77 KNOB
78 DAMPER (A)
79 LEVER, throttle
80 SPRING, throttle
81 SPRING PIN
82 DAMPER (B)
83 COVER, grip
84 ARM
85 SCREW
86 LEVER, switch
87 SPRING, switch
88 SPRING PIN
89 PIPE
90 GROMMET
91 CLIP
92 BODY
93 SCREEN
94 RING
95 SLEEVE
96 FILTER
97 CLIP
98 CAP, fuel tank
99 CHAIN, cap
100 STOPPER
101 SCREW
102 GASKET
103 DAMPER, rear right
104 SCREW
105 WASHER
106 BOLT
107 DAMPER, rear left
108 SCREW
109 DAMPER, rear right bottom
110 SCREW
111 CAP
112 DAMPER, front
113 CAP
114 SCREW
210 BREATHER
211 PIPE
212 CLIP
CAP ASSY, fuel tank Incl. 98 thru 102
CAP ASSY, oil tank Incl. 54 thru 58
BRAKE BAND COMP. Incl. 32 thru 34
OIL PIPE COMP. Incl. 26 thru 30
CRANKCASE ASSY Incl. 13 thru 24
BREATHER ASSY Incl. 210 thru 212
FILTER ASSY Incl. 94 thru 97
REAR HANDLE ASSY
FUEL PIPE ASSY Incl. 89 thru 97
