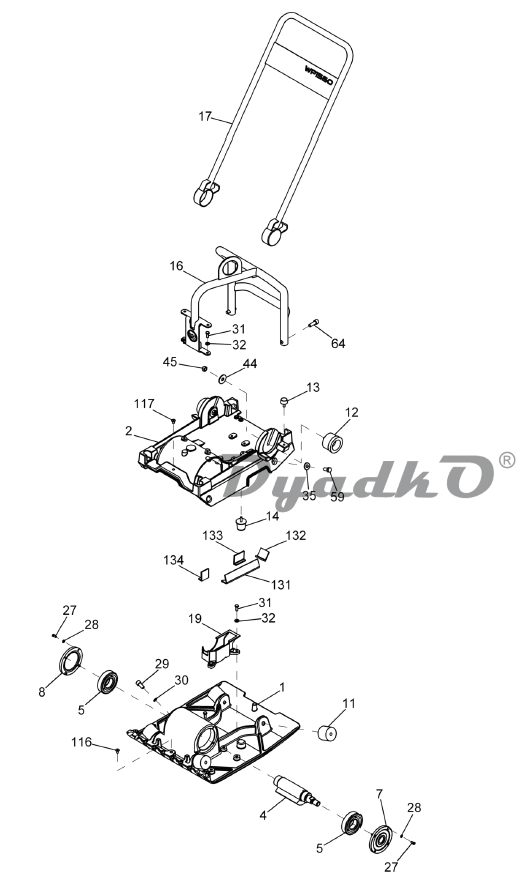

Схема (деталировка) виброплиты бензиновые WACKER NEUSON WP 2050A (0630022) Revision 100 Guide Handle. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Baseplate Grundplatte
2	Console Bedienungskonsole
4	Exciter Erreger
5	Ball bearing Kugellager
7	End cap Endkappe
8	End cap Endkappe
11	Shockmount Puffer
12	Shockmount Puffer
13	Shockmount Puffer 30 x 15
14	Shockmount Puffer
16	Lift cage Schutzbügel
17	Handle Handgriff
19	Lower beltguard Riemenschutz-Unterteil
27	Screw-socket head Sechskant-Schraube M6 x 12 17Nm/12ft.lbs
28	Lock washer Federring
29	Screw-socket head Sechskant-Schraube M12 x 25 145Nm/106ft.lbs
30	Ring seal Dichtungsring A12 x 18
31	Hexagonal head cap screw Sechskantschraube M8 x 20 25Nm/18ft.lbs
32	Lock washer Federring B8
35	Lock washer Federring A12
44	Flat washer Scheibe 0,531 x 1,625 x 0,12
45	Lock nut Sicherungsmutter M12
59	Hex head screw Sechskantschraube M12 x 25 86Nm/63ft.lbs
64	Socket head cap screw Zylinderschraube M12 x 35
116	Plug Stopfen
117	Plug Stopfen
131	Trim seal Profilgummi
132	Trim seal Profilgummi
133	Trim seal Profilgummi
134	Trim seal Profilgummi
