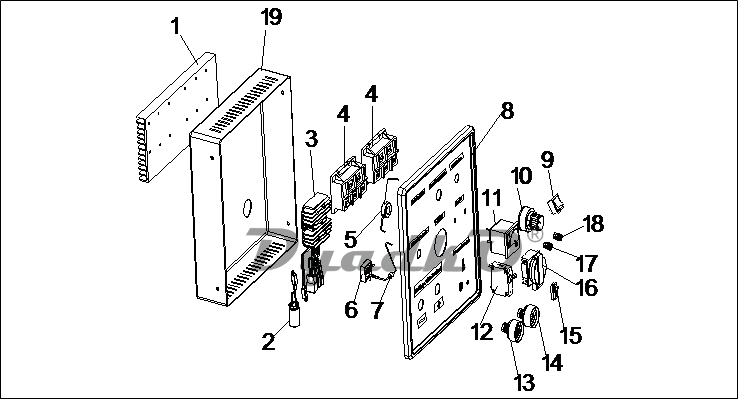

Схема DDE DPW200 Control Panel
1
RADIATOR
2
CAPACITOR
3
CONTROLLER
4
RECTIFIER BRIDGE GROUP
5
MUTUAL INDUCTOR
6
RECTIFIER BRIDGE
7
DIODE
8
PANEL OUTER COVER
9
ELECTRIC START SWITCH
10
CURRENT REGULATOR
11
VOLTMETER
12
CIRCUIT BREAKER
13
WELDING CONNECTOR(NEGATIVE,BLACK)
14
WELDING CONNECTOR(POSITIVE,RED)
15
ENERGY SAVING SWITCH
16
WATER PROOF PLUG
17
DC CONNECTOR(NEGATIVE,BLACK)
18
DC CONNECTOR(POSITIVE,RED)
19
PANNEL REAR COVER
