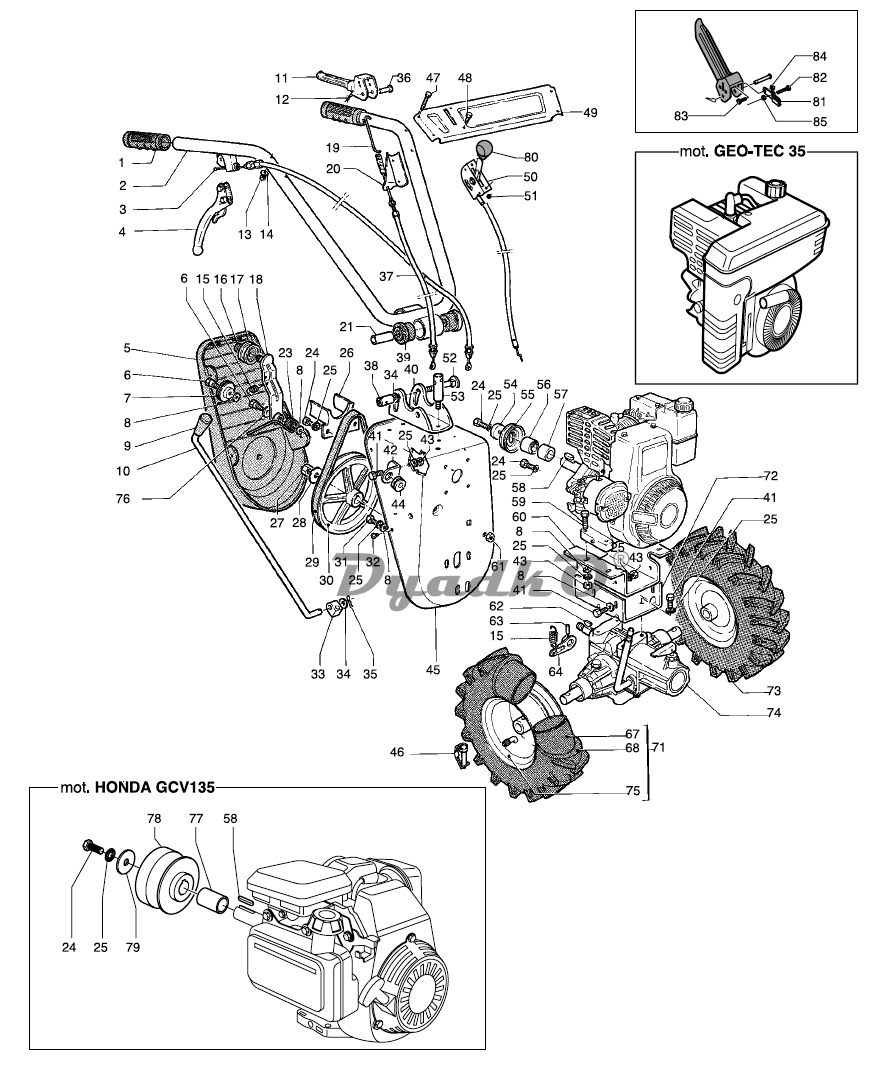

Схема PARTNER PSKL72B Рама

1 105000331
2 10128521
2* green R6018 10128526
2* metal green 1012852A
2* green R6029 1012852L
2* yellow 10128521
2* red 10128522
3 9128490
4 10128580
5 10128393
6 10826800
7 10128543
8 8x16x1,5 ZB 10114200
9 10128423
10 10128450
11 10128683
12 1.1x17 10651300
13 „M„q H8 UNI7473-ZB 20281800
14 6.5„E 10115900
15 10129060
16 D.12E DIN 471 20655800
17 9128633
18 10128500
19 10129400
20 20659300
21 10128530
23 10128510
24 „S„E 5/16\'UNF „‡ 5/8Ѓf(=16mm) 10654300
25 D.8E DIN 6798 20106200
26 10128230
27 Ml 2x1,5 H10 UNI5588-SN 10128220
28 12/36/2.5 10128210
29 A 32 NEO/NEG/2C 10128170
30 10128200
31 „S„E M8x20 UNI 5739* 8.8-ZB 20382300
32 TCTC D6x19 FIX 10830700
33 10128553
34 10x21x2 10428900
35 1.8 x 33 10281400
36 10651400
37 mm.630/962 T 9129660
38 10128320
39 10128573
40 10128380
41 „S„E M8x16 UNI 5739* 8.8-ZB 20103800
42 10128430
43 M8 H8 UNI 5587-6S ZB 20106300
44 10128443
45 10128601
45* green R6018 10128606
45* metal green 1012860A
45* green R6029 1012860L
45* yelow 10128601
45* red 10128602
46 10122710
47 „S„E M6x40 UNI5737-8.8-ZB 10655200
48 „S„E M5x12 UNI5739-8.8-ZB 10547300
49 10679703
50 \'09129680 1
51 M5 H5 UNI5587-6S ZB 20501380
52 M 10x80 TBSTQ (QUADRO h.2) 10128400
53 10128310
54 D.61 10661000
55 D.61 10660700
56 D.61 10660800
57 D.61 H 23.8 10660900
58 4.75x4.75x23 UNI 92 10654500
59 „S„E M8x35 UNI5739-8.8-ZB 10121700
60 10129043
61 M8 H10 UNI7473-ZB 20404900
62 5x6.5 20122960
63 D.5x22 10231600
64 10128150
67 20128770
68 20128763
71 DX D.350 10128804
72 10129053
73 SX D.350 10128814
73* yellow 10128810
73* grey 10128814
73* red 10128812
74 9128010
75 20129354
75* grey 10128804
75* yellow 10128800
75* red 10128802
76 13x24x0.5 10602400
77 D.25x19.2x34 H 10672100
78 10657000
79 8x30x3ZP 10135380
80 10303403
81 10162820
82 „S„E M5x40 UNI5739-45-Z. 10162910
83 „S„E M5x16 UNI5739-8.8-ZB 10830300
84 M5 H7 UNI7473-ZB 20282100
85 M5 H5 UNI5587-6S ZB 20501380
10547300
10679703
yellow 10128601
red 10128602
green R6018 10128606
yellow 10128810
red 10128812
grey 10128814
yellow 10128800
red 10128802
grey 10128804
