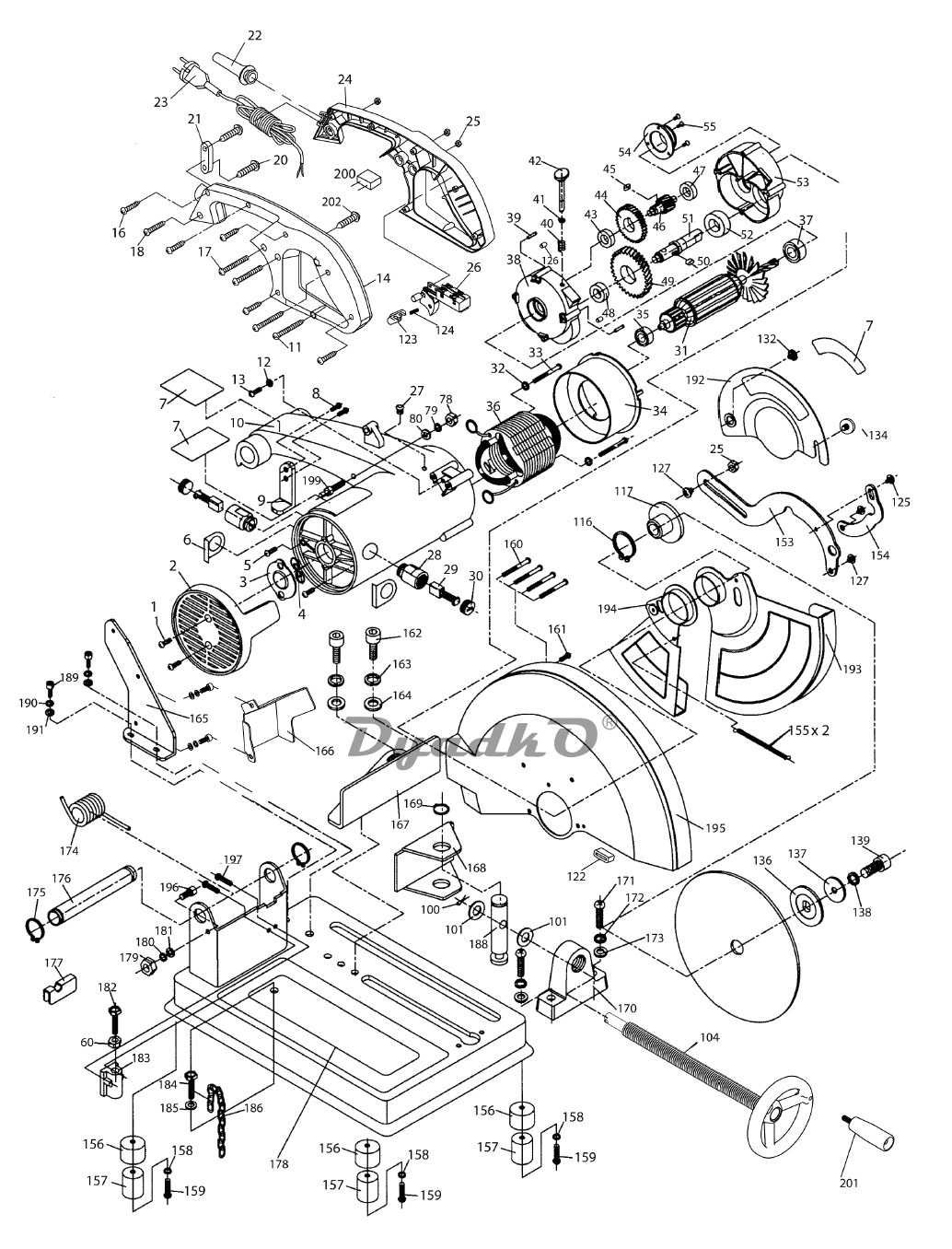

Схема EVOLUTION Rage 2

1 SCREWM5X12
2 DUST FILTER
3 BEARING SUPPORT PLATE
4 WAVE WASHER
5 SCREWM5X10
6 CONTACT SHIELD
7 LABEL SET 110V UK
7A LABEL SET230V UK/EU
8 INNER HEX BOLT M5X15
9 DEPTH STOP
10 MOTOR HOUSING
11 TAPPING SCREW ST4.2x25
12 WAVE WASHER
13 SCREW M5X10
14 LEFT HANDLE
16 Tapping Screw ST4.2Q19
17 SCREW M5X50
18 SCREW M5X30
20 TAPPING SCREW ST4.2x15
21 CABLE CLAMP
22 CABLE SHEATH
23 CABLES PLUG 110VUK
23A CABLES PLUG 230VUK
24 RIGHTHANDLE
25 NUTM5
26 ON/OFF SWITCH 230V
27 RUBBER COVER
28 CARBON BRUSH HOLDER
29 CARBON BRUSH(PAIR)
30 BRUSH CAP
31 ARMATURE 110V
31A ARMATURE 230V
32 SPRING WASHER 5
33 SCREW M5X80
34 AIR BAFFLE
35 BEARING
36 FIELD COIL 110V
36A FIELD COIL 230V
37 BEARING (6202)
38 GEARBOX COVER
39 KEY 5X10
40 SPRING
41 CIRCLIP
42 SPINDLE LOCK
43 BEARING (6000)
44 GEAR
45 FLAT KEY 5X12
46 SHAFT(I)
47 BEARING (6200)
48 BEARING (6001)
49 GEAR
50 FLAT KEY 6X12
51 SHAFT(2)
52 BEARING (6204)
53 GEARBOX
54 CIRCLIP
55 SCREW M4X12
60 NUTM8
78 NUT 6
79 WASHER
80 SPRING WASHER
100 SPLIT PIN 3x26
101 WASHER
104 CLAMP HANDLE ASSEMBLY
116 CIRCLIP 42
117 INNER FLANGE
122 CUSHION COVER
123 SAFTEYBUTTON
124 BUTTON SPRING
125 SCREW (3)
126 RUBBER STOP
127 PIN SCREW
132 SCREW
134 SCREWKNOB
136 OUTER FLANGE
137 WASHER
138 SPRING WASHER
139 CAP SCREW M10X25
153 CONNECTING ROD (1)
154 CONNECTING ROD (2)
155 GUARD SPRING
156 FOOTSUPPORT
157 RUBBER FOOT
158 WASHER
159 CAP SCREW
160 SCREW M5X90
161 GUARD STOP
162 CAP SCREW M10X25
163 SPRING WASHER
164 FLAT WAS HER
165 CONNECTING ROD (3)
166 SHIELD
167 BACK VICE
168 MOVING VICE JAW
169 LOCK RING
170 VICE SCREW SUPPORT
171 CAP SCREW
172 SPRING WASHER
173 FLAT WAS HER
174 TORSION SPRING
175 CIRCLIP
176 PIVOT PIN
177 SPRING SUPPORT
178 BASE
179 NUT
180 SPRING WASHER
181 FLAT WAS HER
182 HEX HEIGHT ADJUST BOLT
183 DEPTH STOP BASE
184 HEX HEAD BOLT
185 WASHER
186 CHAIN
188 CONNECTING ROD
189 CAP SCREW
190 SPRING WASHER
191 FLAT WAS HER
192 BLADE GUARD COVER
193 BLADE GUARD (3)
194 BLADE GUARD (2)
195 BLADE GUARD (1)
196 CAP SCREW
197 CAP SCREW
199 CHAIN PIN
200 CAPACITOR 230V
200A CAPACITOR 110V
201 HANDLE KNOB
202 TAPPING SCREW ST4.2x15
