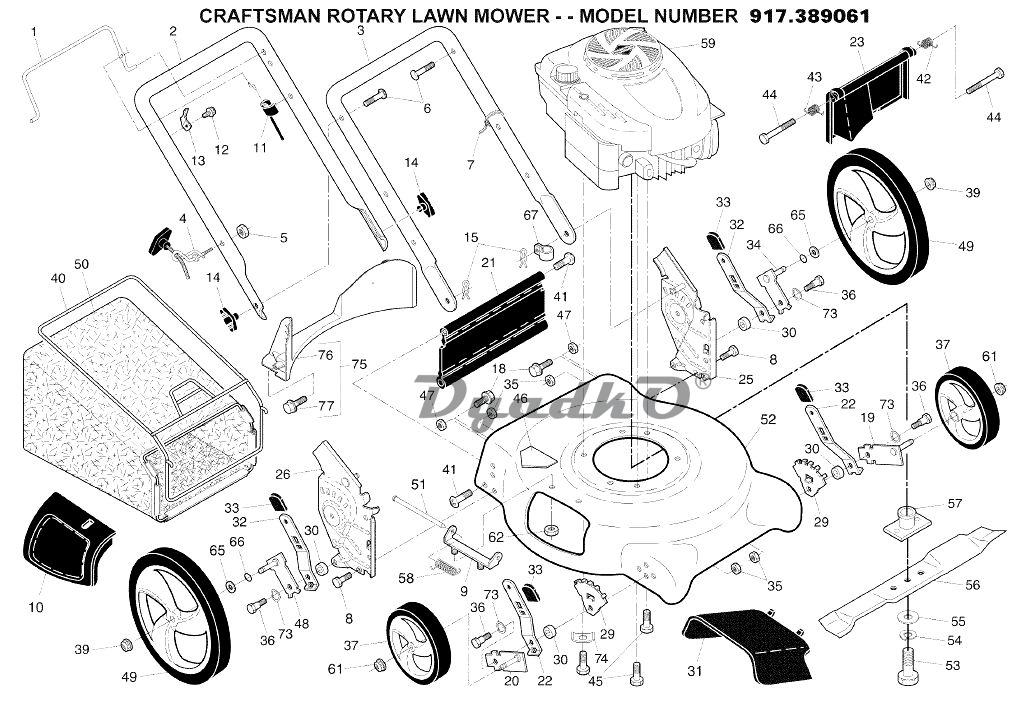

Схема CRAFTSMAN 917.389061 LAWN MOWER

1 Control Bar
2 Upper Handle
3 Lower Handle
4 Rope Guide
5 Nut, Hex
6 Handle Bolt
7 Wire Tie
8 Bolt, Hex Head 5/16-18 x 3/4
9 Hinge Bracket
10 Mulcher Door
11 Engine Zone Control Cable
12 Hex Washer Head Screw
13 Up-Stop Bracket
14 Handle Knob
15 Hairpin Cotter
18 Screw 1/4-20x3/8
19 Axle Arm Assembly, Front, LH
20 Axle Arm Assembly, Front, RH
21 Kit, Rear Skirt
22 Selector Spring, Front
23 Rear Door Assembly
25 Handle Bracket Assembly, LH
26 Handle Bracket Assembly, RH
29 Wheel Adjusting Bracket
30 Spacer
31 Discharge Deflector
32 Selector Spring, Rear
33 Selector Knob
34 Axle Arm Assembly, Rear, LH
35 Locknut, Hex 5/16-18
36 Shoulder Bolt
37 Wheel & Tire Assembly, Front
39 Flanged Locknut, Hex
40 Frame, Grassbag
41 Hinge Screw
42 Spring, Rear Door, LH
43 Spring, Rear Door, RH
44 Bolt, Rear Door
45 Screw, Hex Head, Threaded,
46 Danger Decal
47 Nut, Hex
48 Axle Arm Assembly, Rear, RH
49 Wheel & Tire Assembly, Rear (407773x427)
50 Grassbag
51 Hinge Rod
52 Kit, Lawn Mower Housing
53 Screw, Hex Head, Grade 8
54 Helical Lockwasher
55 Hardened Washer
56 21\" Blade
57 Blade Adapter
58 Hinge Spring
59 Engine, Briggs & Stratton,
61 Nut, Hex
62 Locknut, Hex 1/4-20
65 Washer, Flat
66 O-Ring
67 Clip, Cable
73 Washer, Curved, Cylindrical
74 Washer, Special, Engine
75 Kit, Rear Baffle
76 Baffle, Rear
77 Screw, Rear Baffle
(20 Ounce Bottle)
(Includes Key Number 46)
3/8-24 x 1-3/8
Model No. 126T02-1225-EA
(See Breakdown)
(Includes 3 Screws)
Warning Decal (not shown)
Owner’s Manual
Дополнительное оборудование не входит в схему:
Rolled 3/8-16 x 1
(2.5 Gallon Container)
Fuel Stabilizer
SAE 30W Oil
-- Gas Can
