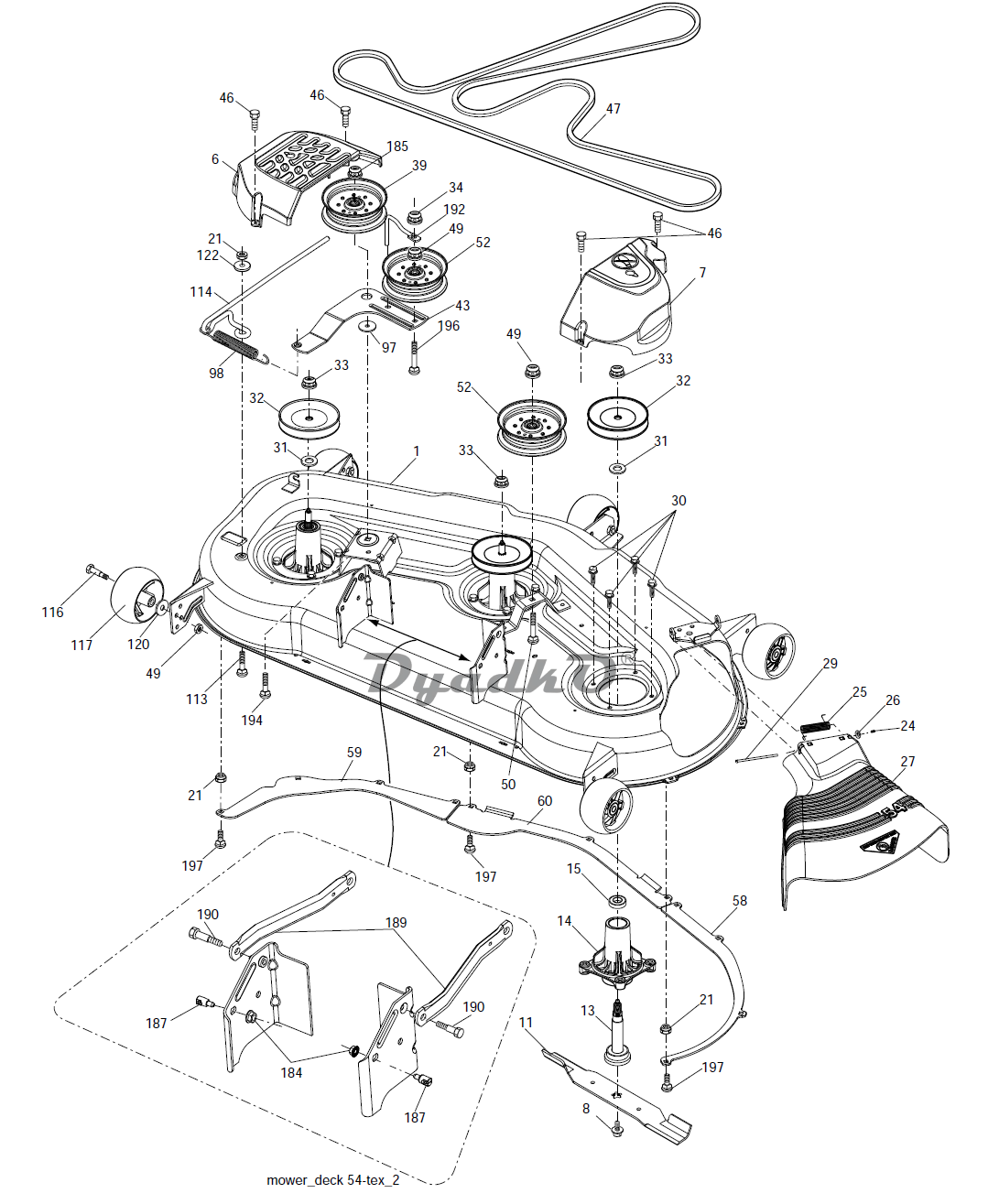

Схема (деталировка) тракторы садовые и райдеры HUSQVARNA GTH 260 TWIN (96041004500) MOWER DECK. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Deck Weldment Mower
6	Cover Mandrel LH
7	Cover Mandrel RH
8	Bolt 7/16 Asm. Blade
11	Blade
13	Shaft Asm. w/Lower Bearing
14	Housing, Mandrel
15	Bearing, Ball, Mandrel
21	Nut, Crownlock 5/16-18 unc
24	Cap Sleeve
25	Spring, Torsion
26	Nut, Push
27	Deflector Shield
29	Rod, Hinge
30	Screw, Thdroll Washer Head
31	Washer, Spacer Mower Vented
32	Pulley, Mandrel
33	Nut, Flg. Top Lock
34	Nut Crownlock 3/8-16 unc
39	Pulley, Idler, Stationary LH
43	Arm, Idler
46	Screw, Thdroll. 1/4-20 x 5/8
47	Belt Deck Drive
49	Nut, Lock Flg. 3/8-16 unc
50	Bolt Rdhd Sqnk 3/8-16 unc x 2
52	Pulley Idler
58	Baffle Right
59	Baffle Left
60	Baffle Center
97	Washer Hardened
98	Spring Drive
113	Bolt Rdhd Sqnk 5/16-18 x 3/4
114	Rod Tension Relief
116	Bolt, Shoulder
117	Gauge Wheel
120	Washer 13/32 x 1-1/4 x 12 Ga.
122	Bushing Tension Relief
184	Nut Lock Hex Flange
185	Nut Lock Flange 7/16-14 Gr. 5
187	Stud Fastener w/\"D\" Anti-Rotation
189	Arm Susp. Mower Rear
190	Bolt Shoulder
192	Keeper Belt Idler
194	Bolt Carr Sqnk 3/8-16 x 2-1/4
196	Bolt 3/8-16 x 2-1/2 Gr. 5
197	Bolt 5/16-18 unc x 1
- -	Mandrel Asm. Service (Includes Key Nos. 13-15 and 33)
- -	Replacement Mower, Complete
