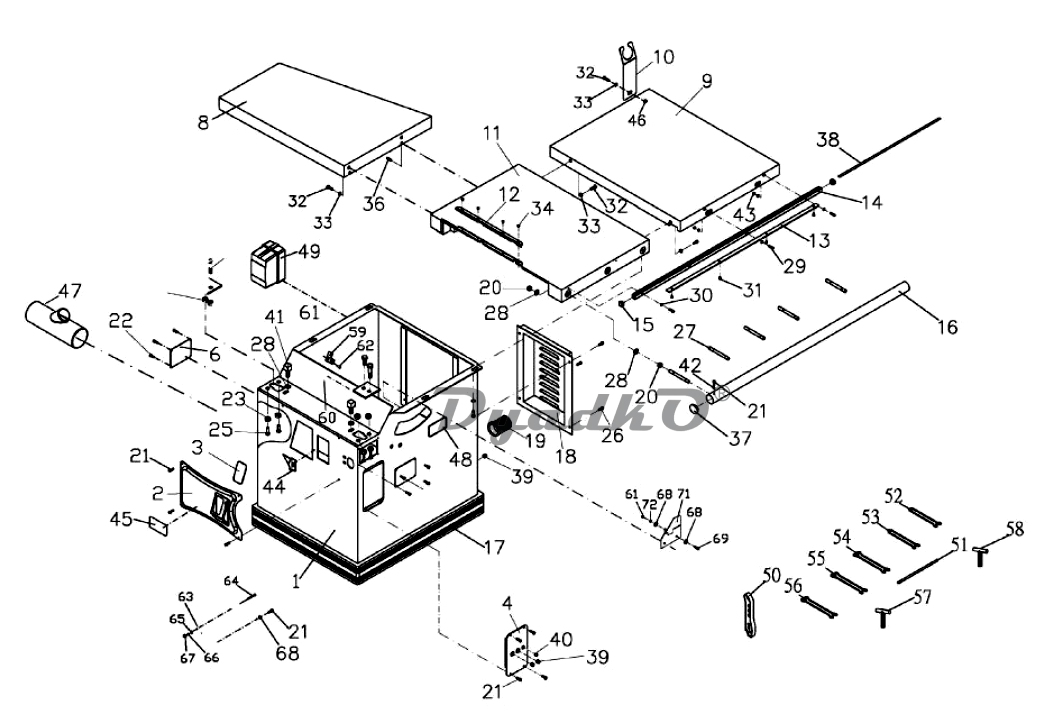

Схема JET JTSS-1700 Table and Rail Assembly

1 Cabinet
2 Cabinet Cover
3 Angle Plate
4 Switch Plate
5 Scale Dust Cover
6 Adjustment Bolt Cover
7 Adjustment Plate
8 Extension Table (Front)
9 Extension Table (Right)
10 Hose Support
11 Main Table
12 Table Insert
13 Gear
14 Gear Base
15 Gear Base Cover
16 Rail
17 Strip
18 Motor Cover
19 Main Plug 400V 3Ph
20 Hex Nut M12x175P
21 Socket Head Cap Screw M6x12
22 Socket Head Cap Screw M6x12
23 Hex Nut M14x15P
24 Hex Cap Bolt M14x60
25 Hex Cap Bolt M14x30
26 Socket Head Cap Screw M6x10Px60
27 Socket Set Screw M12x100
28 Flat Washer M12
29 Socket Head Cap Screw M6x20
30 Flat Washer 1/4”
31 Socket Head Cap Screw M5x08Px8
32 Socket Head Cap Screw M8x125Px25
33 Flat Washer M8
34 Socket Head Flat Screw M5x08Px10
36 Socket Set Screw M8x20
37 Rubber Plug
38 Scale
39 Clamp PG135
40 Clamp PG11
41 Positioning Screw M12
42 Eccentric Washer
43 Hex Nut M6x10P
44 Angle Indicator
45 Blade Angle Label
46 Lock Nut M8
47 Dust Chute Y-piece
48 Label for Blade Rise-down
49 Motor break Control box assembly
50 Push Stick
51 Arbor index pin ø 8mm
52 Open end wrench 13mm
53 Open end wrench 19mm
54 Open end wrench 10-12mm
55 Open end wrench 14-17mm
56 Open end wrench 22-24mm
57 T-style allen wrench 4mm
58 T-style allen wrench 5mm
59 Bend Stopping Bracket
60 Stopping Bracket
61 Nylon Nut M6
62 Socket Head Flat Screw M6x16
63 Brush
64 Pan Head Screw M5x20
65 Flat Washer M5
66 Lock Washer M5
67 Hex Nut M5
68 Flat Washer M6
69 Socket Head Cap ScrewM6x20
71 Safety Guard
72 Lock Washer M6
UE Fuse 2A for Break (not shown)
RE Bridge rectifier for Break (not shown)
RE Transformer for Break 230V, 400V, 24V, 30VA (not shown)
Power Cord (not shown) 230V 1Ph
