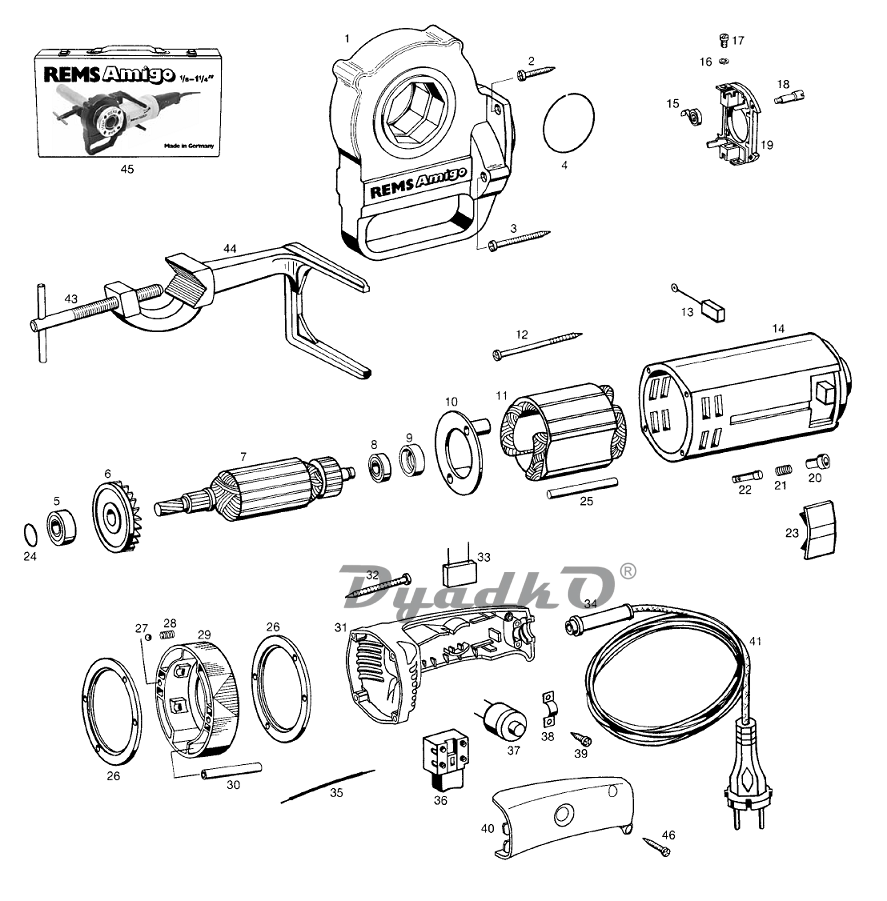

Схема (деталировка) клуппы резьбонарезные электрические REMS Amigo. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

2	Sheet metal screw
3	Sheet metal screw
4	Annular spring
5	Grooved ball bearing
6	Ventilator
8	Grooved ball bearing
9	Insulating ring
10	Ventilator cover
11	Stator 230 V
12	Sheet metal screw
13	Carbon brush, pair
18	Screw
20	Bush
21	Pressure ring
22	Contact pin
23	Cover
24	O-ring
25	Supporting bolt
26	Sealing ring
27	Steel ball
28	Pressure spring
29	Adjusting ring
30	Distance sleeve
31	Handle
32	Sheet metal screw
33	Capacitor
34	Rubber sleeve
35	Reversing strand
36	Switch 230 V
37	Protection switch 230 V
38	Strap
39	Sheet metal screw
40	Handle cover
41	Connecting cable 230 V
43	Clamping spindle mounted
45	Steel case
46	Sheet metal screw
	Housing compl. Pos. 9,13,14,15,16, 17,18,19,20,21,22
	Stator 110 V
	Rotor with ventilator 110 V Pos. 6 and 7
	Connecting cable 110 V
	Connecting cable CH
	Motor compl. CH Pos. 5-23, 25-41 and 46
	Protection switch 110 V
	Gear compl. Pos. 1 and 4
	Motor compl. 110 V Pos. 5-23,25-41 and 46
	Switch 110 V
—	Gear flow grease V 320 (0.5 kg)
—	Insulating ring compl. Pos. 15,16,17,19
—	Support bracket Pos. 43 and 44
—	Motor compl. 230 V Pos. 5-23,25-41 and 46
—	Rotor with ventilator 230 V Pos. 6 and 7
