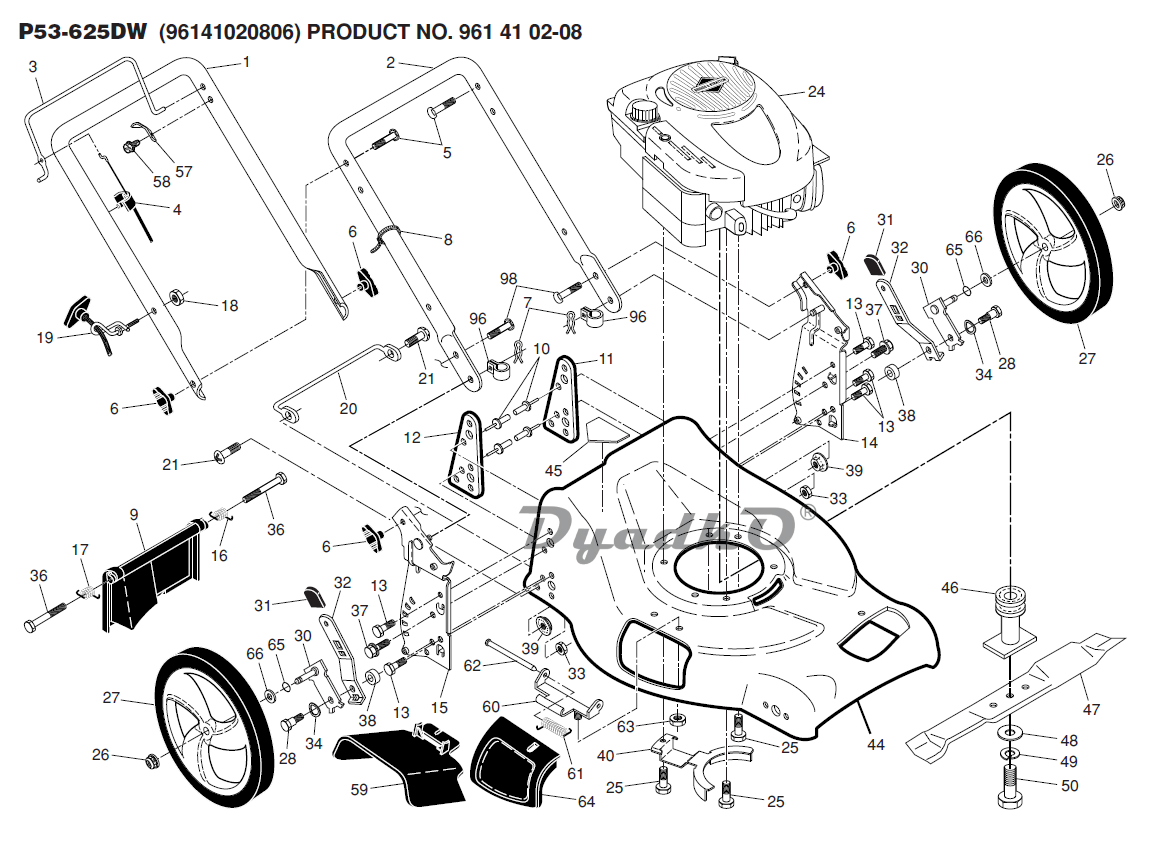

Схема (деталировка) газонокосилки бензиновые PARTNER P53-625DW (96141020806) 2012-02 Колеса, Ручки, Дека, Нож. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Upper Handle
2	Lower Handle
3	Control Bar
4	Engine Zone Control Cable
5	Handle Bolt
6	Handle Knob
7	Hairpin Cotter
8	Wire Tie
9	Rear Door
10	Pop Rivet
11	Support Bracket, LH
12	Support Bracket, RH
13	Screw 1/4-20x5/8
14	Handle Bracket Assembly, LH
15	Handle Bracket Assembly, RH
16	Spring, Rear Door, LH
17	Spring, Rear Door, RH
18	Keps Locknut 1/4-20
19	Rope Guide
20	Foot Guard, C.E.
21	Screw, Tapping 1/4-20 x 1/2
24	Engine, Briggs & Stratton, Model Number 122T02-5243-H1 (order parts from engine manufacturer)
25	Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
26	Hex Flange Nut
27	Wheel & Tire Assembly, Rear
28	Shoulder Bolt 5/16-18 x .33
30	Axle Arm Assembly, Rear
31	Selector Knob
32	Selector Spring
33	Nut, Hex 5/16-18
34	Washer, Curved, Cylindrical
36	Bolt
37	Thread Cutting Screw w/Sems 5/16-18 x 3/4
38	Spacer
39	Nut, Hex, Flanged 5/16-18
40	Belt Keeper
44	Kit, Lawn Mower Housing (Includes Key Numbers 10,11,12 and 45)
45	Danger Decal
46	Blade Adapter / Pulley
47	Blade, 21\"
48	Hardened Washer
49	Helical Washer 3/8-24 x 1-3/8 Grade 8
50	Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
57	Upstop Bracket
58	Screw
59	Discharge Deflector
60	Hinge Bracket
61	Hinge Spring
62	Hinge Rod
63	Nut, Hex
64	Mulcher Door
65	O-Ring
66	Washer, Flat
96	Clip, Cable
98	Bolt, Carriage
	Decal, Warning (not shown)
	Operator\'s Manual, European
	Operator\'s Manual, Scandinavian
	Operator’s Manual, East Bloc
	Operator\'s Manual, Baltic
