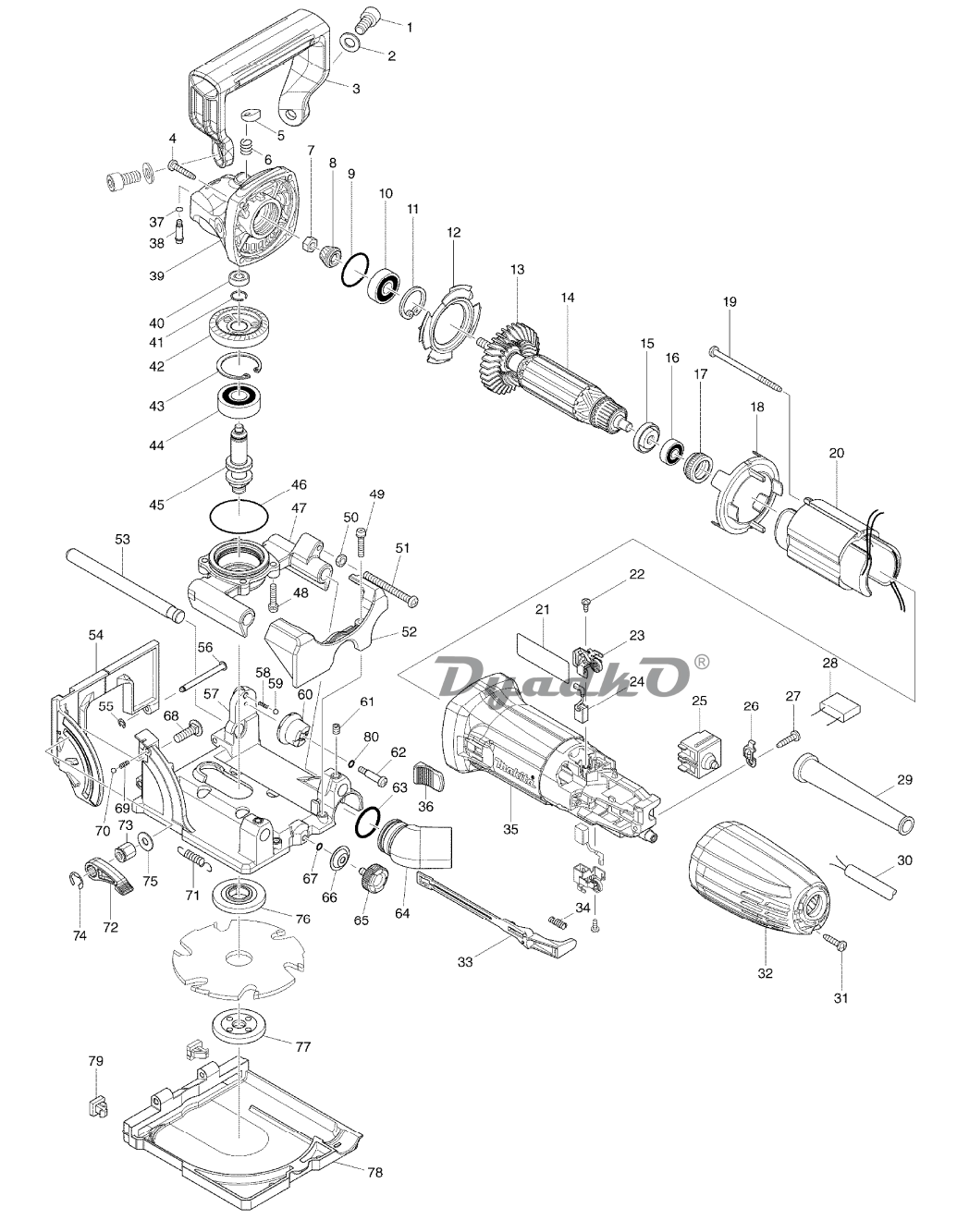

Схема MAKITA PJ 7000 / PJ 7000J

1 HEX. SOCKET HEAD BOLT M8X16
2 FLAT WASHER 8
3 GRIP
4 TAPPING SCREW 4X22
5 PIN CAP
6 COMPRESSION SPRING 8
7 HEX. NUT M6
8 SPIRAL BEVEL GEAR 10
9 O-RING 26
10 BALL BEARING 629DDW
11 RETAINING RING R-26
12 GUIDE PLATE
13 FAN 56 (NEW)
14 ARMATURE ASS\'Y 240V INC. 13,15,16
15 INSULATION WASHER
16 BALL BEARING 607LLB
17 LABYRINTH RUBBER RING 19
18 BAFFLE PLATE
19 TAPPING SCREW 4X70
20 FIELD 220-240V
21 PJ7000 NAME PLATE
22 TAPPING SCREW 3X8
23 BRUSH HOLDER 6X9
24 CARBON BRUSH CB-459
25 SWITCH PS10
26 STRAIN RELIEF
27 TAPPING SCREW 4X18
28 CAPACITOR UNIT
29 CORD GUARD 8-85
30 POWER SUPPLY CORD 1.0-2-4.0
31 TAPPING SCREW 4X18
32 REAR COVER
33 SWITCH LEVER
34 COMPRESSION SPRING 4
35 MOTOR HOUSING
36 SWITCH KNOB
37 O RING 4
38 SHOULDER PIN 4
39 GEAR HOUSING COMPLETE
40 BALL BEARING 696ZZ
41 RING SPRING 11
42 SPIRAL BEVEL GEAR 37
43 RETAINING RING R-32
44 BALL BEARING 6201DDW
45 SPINDLE
46 O RING 42
47 BEARING BOX
48 PAN HEAD SCREW M4X20
49 PAN HEAD SCREW M4X20
50 HEX. NUT M5
51 PAN HEAD SCREW M5X50
52 BASE COVER
53 ROD 10
54 FENCE COMPLETE
55 STOP RING E-3
56 PIN 4
57 BASE
58 COMPRESSION SPRING 2.4
59 STEEL BALL 3.5
60 STOPPER
61 H.S.SET SCREW(FLAT POINT)M5X6
62 PAN HEAD SCREW M4
63 O RING 22.4
64 DUST NOZZLE
65 THUMB SCREW M5X10
66 LEAF SPRING
67 O RING 4
68 FLAT HEAD SQ. NECK BOLT M6X20
69 COMPRESSION SPRING 2.4
70 STEEL BALL 3.5
71 TENSION SPRING 8
72 LEVER 40
73 HEX. NUT M6
74 STOP RING E-8
75 FLAT WASHER 6
76 INNER FLANGE 40
77 LOCK NUT 10-40
78 BLADE COVER
79 RUBBER SPIKE
80 O RING 4
A07 PJ7000 PLASTIC CASE LABEL
A01 ANGLE GUIDE ASSEMBLY COMPO-PARTS
A02 DUST BAG ASSEMBLY
A03 SET PLATE 4
A04 CUTTER 100MMX6T
A05 LOCK NUT WRENCH 20
A06 PLASTIC CARRYING CASE
FAN 56 (OLD)
