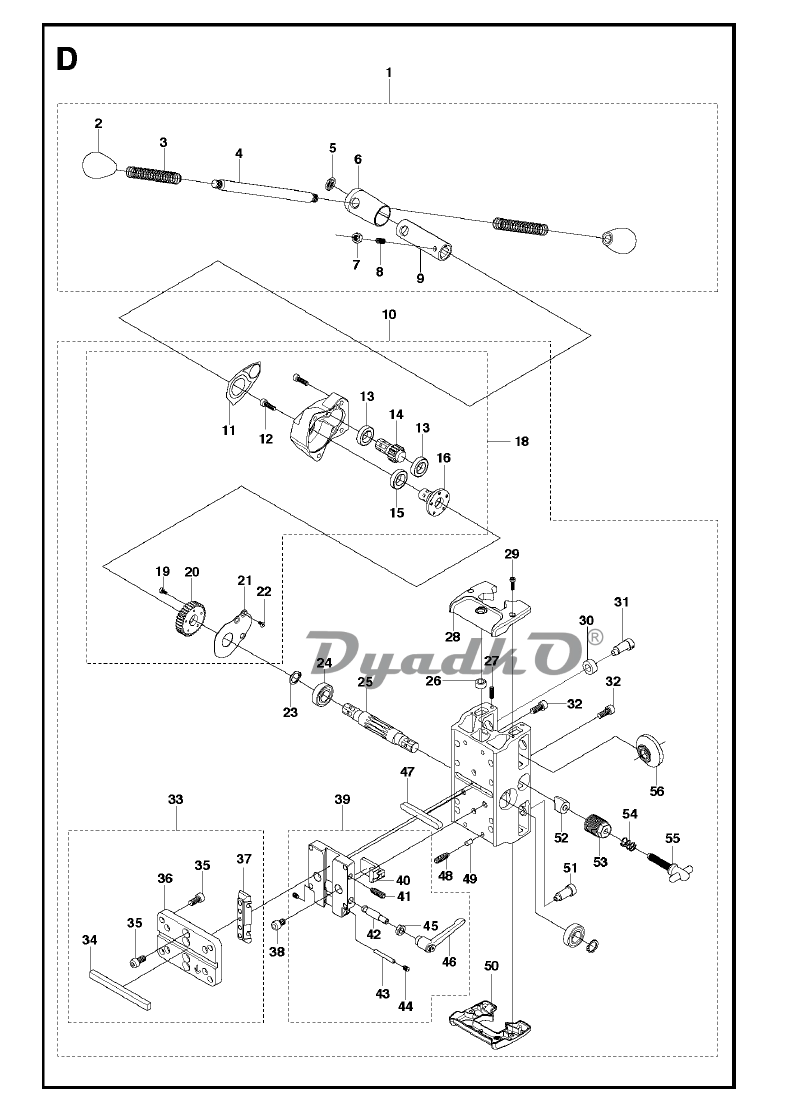

Схема (деталировка) установки алмазного бурения HUSQVARNA DMS 240 (2015-01) CARRIAGE. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	TRAVEL LEVER ASSEMBLY/ Complete
2	GRIP
3	FEEDING CRANC SPRING
4	FEEDING CRANK SHAFT
5	DECAL
6	FEEDING HANDLE PLASTIC COVER
7	LOCK NUT
8	M8X1.25 BALL PLUNGER DS160C
9	TRAVEL LEVER DRIVE SHAFT/
10	KIT Not for Single Speed
11	DECAL
12	SCREW IHSCM
13	17MM I.D.X 30MMO.D.X 7MM WIDTH BEARI (6903-2NSE) NG
14	1.5 MODULE 22.5 P.D. 15 TOOTH 20 DEGREE INVOLUTE G
15	BALL BEARING
16	INPUT SHAFT EXTENSION PLATE
18	GEAR WHEEL KIT Not for Single Speed
19	SCREW IHSCM
20	1.5 MODULE 49.5 P.D. 33 TOOTH 20 DEGREE INVOLUTEGE
21	COVER PLATE
22	SCREW IHCSFM
23	CIRCLIP
24	BALL BEARING
25	CARRIAGE DRIVE SHAFT
26	LEVEL BUBBLE
27	SCREW IHSETM
28	CARRIAGE PLASTIC GUARD - TOP
29	SCREW IHSCM
30	ECCENTRIC BUSHING
31	ECCENTRIC SHAFT
32	SCREW IHSCM
33	MOTOR BRACKET
34	10MM X 9MM RECTANGULAR KEY
35	SCREW IHSCM
36	PLATE
37	WEDGE
38	SCREW IHSCM
39	FIXATION ASSEMBLY
40	LOCK
41	SCREW IHSETM
42	BOLT
43	DOWEL PIN
44	SCREW IHSETM
45	HEXAGON THIN NUT
46	INDEXABLE HANDLE, NUT M8
47	KEY
48	SCREW IHSETM
49	GUIDE
50	CARRIAGE PLASTIC GUARD - BOTTOM
51	STRAIGHT SHAFT
52	KIT
53	FRICTION BRAKE CUP
54	SPRING
55	BRAKE KNOB
56	ROLLER
