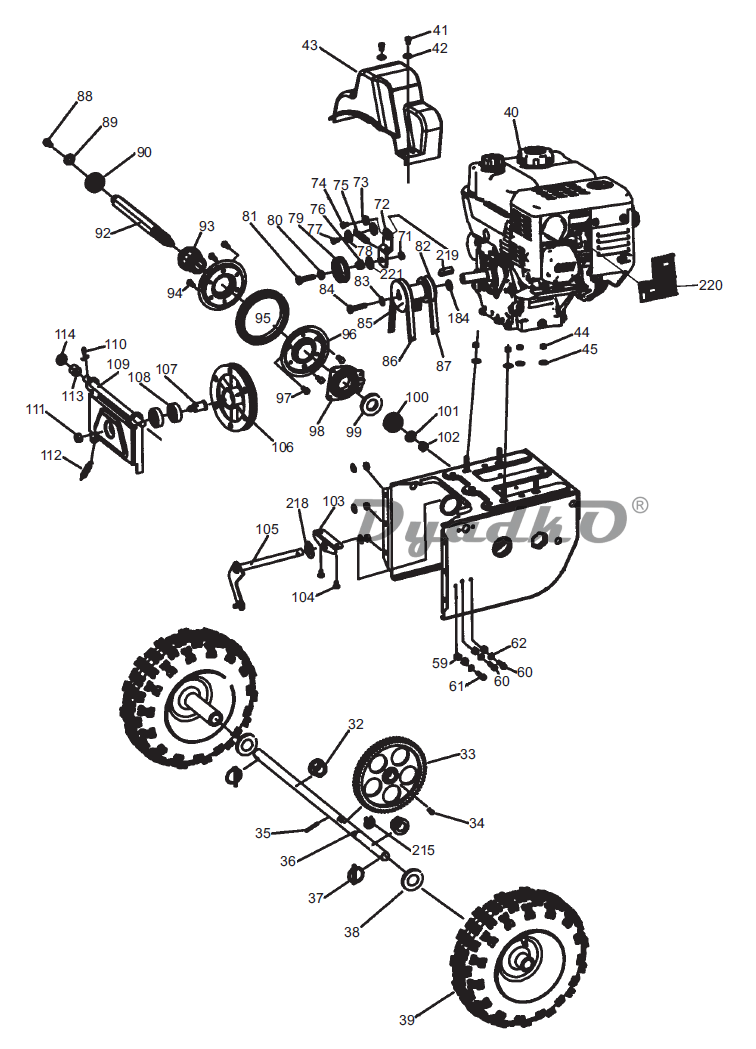

Схема STIGA Snow Cube (18-2803-32) 2013 Система привода, Колеса

32 Wheel shaft bushing ...........
33 Gear ....................................
34 Key......................................
35 Locating pin ........................
36 Wheel shaft .........................
37 Spring pin ...........................
38 Flat washer..........................
39 Wheel assy.......................... 13\" (4.10 - 6)
40 Engine compl. ..................... Manual starter
41 Screw..................................
42 Washer................................
43 Belt cover ............................
44 Lock nut ..............................
45 Flat washer..........................
59 Lock nut ..............................
60 Screw.................................. L = 30 mm
61 Screw.................................. L = 20 mm
62 Washer................................
71 Lock nut ..............................
72 Tension arm ........................
73 Tension washer ...................
74 Screw..................................
75 Spring .................................
76 Washer................................
77 Screw..................................
78 Flat washer..........................
79 Tension pulley .....................
80 Washer................................
81 Screw..................................
82 Belt pulley ...........................
83 Plain cushion ......................
84 Screw..................................
85 Belt pulley ...........................
86 Belt......................................
87 Belt......................................
88 Screw..................................
89 Washer................................
90 Bearing................................
92 Hex shaft.............................
93 Hub .....................................
94 Screw..................................
95 Friction ring.........................
96 Friction wheel......................
97 Screw..................................
98 Gear selector hub................
99 Lock ring.............................
100 Bearing................................
101 Flat washer..........................
102 Lock nut ..............................
103 Bracket................................
104 Screw..................................
105 Gear lever............................
106 Drive pulley .........................
107 Shaft ...................................
108 Bearing................................
109 Bracket- drive pulley............
110 Cotter pin ............................
111 Lock nut ..............................
112 Spring .................................
113 Collar ..................................
114 Washer................................
184 Washer................................
215 Retainer ring .......................
218 Washer................................
219 Key......................................
220 Heat guard
