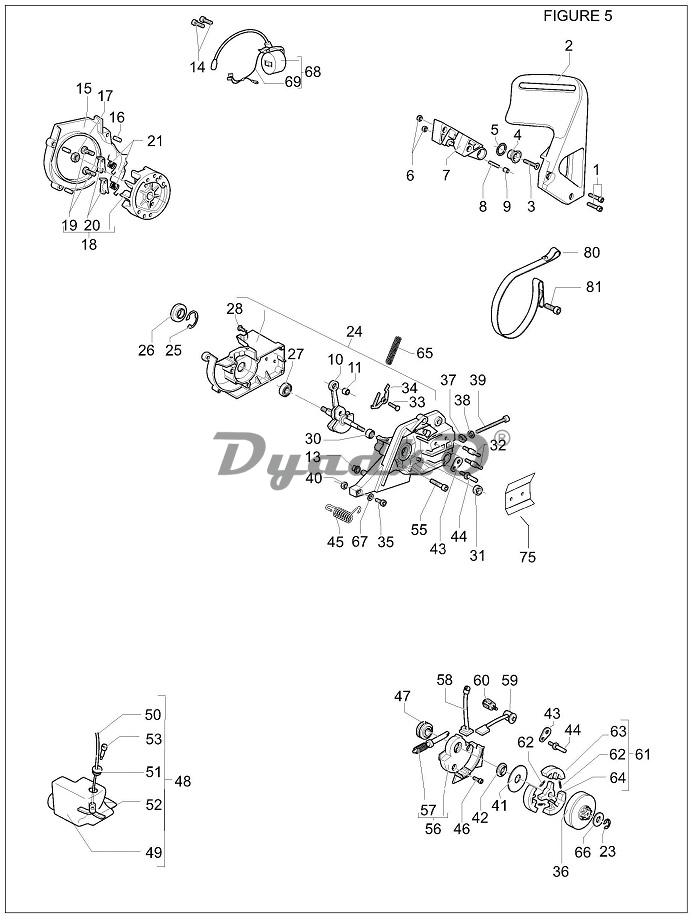

Схема MCCULLOCH Mac 538E Сцепление, тормоз цепи, зажигание
1
screw M5x20
2
brake lever
3
screw M6x25
4
sleeve
5
washer D.10X15X1
6
nut M5
7
brake housing
8
band pivot
9
brake needle
10
crankshaft assy
11
needle bearing 9x12x14
13
tank grommet
14
screw M5x20
15
air conveyor
16
spacer
17
nut M8
18
flywheel
19
pin (starter pawl)
20
starter pawl
21
starter spring
23
benzing 4mm
24
crankcase kit
25
seeger ring
26
seal 15X32X4/5
27
ball bearing 6002 15/32/9
28
self-threading screw 4X14
30
needle bearing 15X21X12
31
seal 13-32-5 (S7)
32
bar bolt M8
33
latch pivot
34
brake latch
35
screw M5x20
36
drum sprocket 3/8
37
bar adjustment nut
38
benzing 4mm
39
screw
40
nut M5
41
washer
42
clutch spacer
43
oil cap plate
44
chain catcher
45
spring
46
screw M5x14
47
oil pump screw
48
fuel tank assy
49
fuel tank
50
fuel hose
51
fuel tank grommet
52
fuel pick up
53
vent filter
55
M5x30 screw
56
oil pump assy
57
oil pump piston kit
58
pipe joint
59
oil pump tube
60
oil filter
61
clutch assy
62
spring
63
shoe clutch
64
rotor clutch
65
brake spring
66
clutch waher
67
washer
68
ignition coil assy
69
wires assy
75
bar plate
80
brake band
81
brake screw
