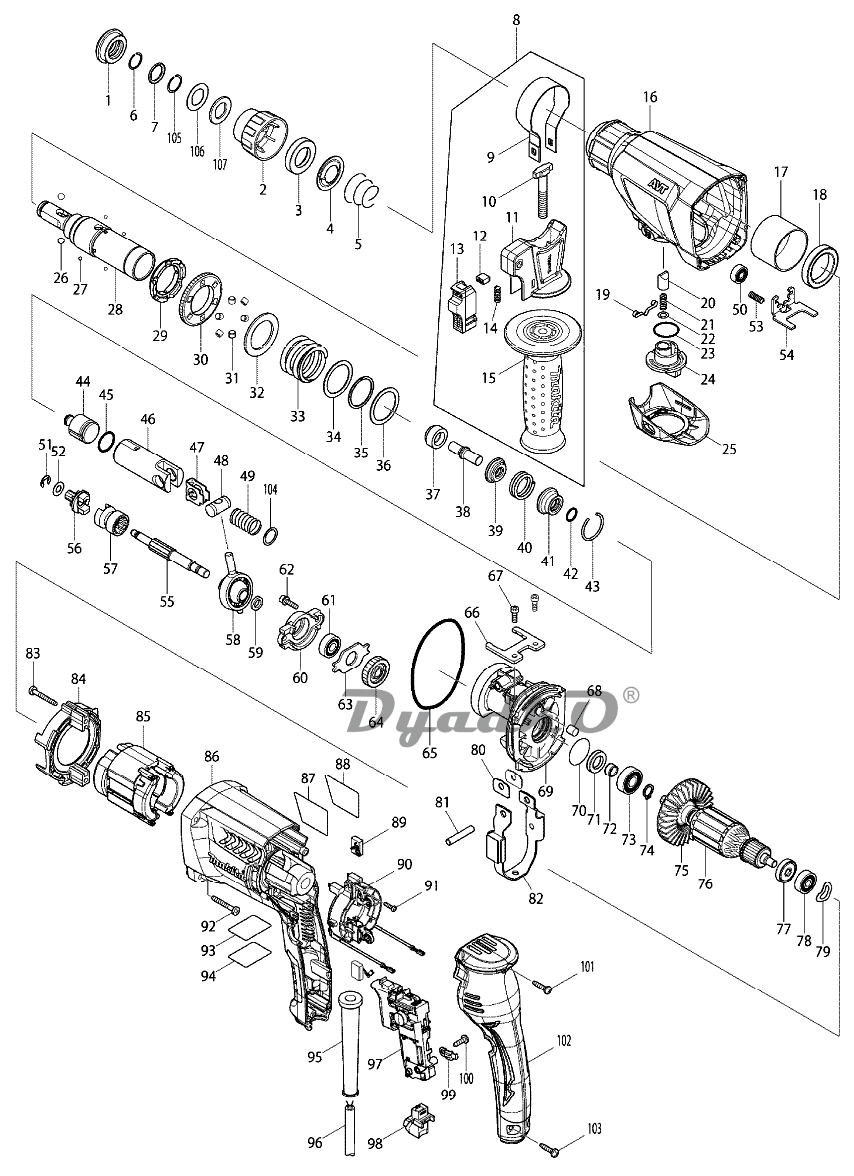

Схема MAKITA HR 2611 F (X5)


1 CAP 35
2 CHUCK COVER
3 RING 21
4 GUIDE WASHER
5 CONICAL COMP. SPRING 21-29
6 RING SPRING 14
7 WASHER 16
8 GRIP ASSEMBLY INC.9-15
9 GRIP SPRING 50
10 SQUARE BOLT M8X50
11 GRIP BASE
12 RACK
13 LOCK BUTTON COMPLETE (NEW)
14 COMPRESSION SPRING 4
15 GRIP 36 COMPLETE
16 GEAR HOUSING COMPLETE
17 CUP SLEEVE
18 BALL BEARING 6806LLU
19 LEAF SPRING
20 PUSH CORN
21 COMPRESSION SPRING 5
22 THIN WASHER 6
23 O RING 21
24 CHANGE LEVER A
25 CHANGE LEVER COVER A
26 STEEL BALL 7.0
27 STEEL BALL 3
28 TOOL HOLDER COMPLETE
29 DRIVING FLANGE
30 SPUR GEAR 51
31 PIN 6
32 FLAT WASHER 30
33 COMPRESSION SPRING 31
34 FLAT WASHER 30
35 SPIRO LOCK WASHER 30
36 FLAT WASHER 30
37 SLEEVE 9B
38 IMPACT BOLT A
39 WASHER 10
40 COMPRESSION SPRING 20
41 O-RING CASE B
42 O RING 9
43 RING SPRING 28
44 STRIKER
45 O RING 17.5
46 PISTON CYLINDER
47 GUIDE PLATE
48 PISTON JOINT
49 COMPRESSION SPRING 14
50 BALL BEARING 606ZZ
51 STOP RING EXT U-6 (NEW)
52 FLAT WASHER 7 (NEW)
53 COMPRESSION SPRING 4
54 LOCK PLATE
55 CAM SHAFT
56 SPUR GEAR 10
57 CLUTCH CAM A
58 SWASH BEARING 10
59 FLAT WASHER 8
60 BEARING BOX
61 BALL BEARING 608ZZ
62 HEX. SOCKET HEAD BOLT M4X16
63 BEARING RETAINER
64 HELICAL GEAR 26
65 O-RING 68
66 PLATE
67 HEX. SOCKET HEAD BOLT M4X12
68 FELT
69 INNER HOUSING COMPLETE
70 O RING 26
71 OIL SEAL 12 (NEW)
72 SLEEVE 9
73 BALL BEARING 6000LLB
74 RETAINING RING S-10
75 FAN 65
76 ARMATURE ASSEMBLY 240V INC. 72-75,77,78
77 INSULATION WASHER
78 BALL BEARING 627DDW
79 WAVE WASHER 15
80 WEIGHT HOLDER GUIDE
81 PIN 6
82 COUNTER WEIGHT
83 TAPPING SCREW 4X30
84 BAFFLE PLATE
85 FIELD 240V
86 MOTOR HOUSING
87 HR2611F NAME PLATE
88 CLEAR LABEL
89 CARBON BRUSH CB-325
90 BRUSH HOLDER UNIT
91 TAPPING SCREW 3X12
92 TAPPING SCREW 4X30
93 HR2611F SERIAL NO.LABEL
94 CLEAR LABEL
95 CORD GUARD 10
96 POWER SUPPLY CORD 1.0-2-4.0
97 SWITCH
98 LIGHT CIRCUIT
99 STRAIN RELIEF
100 TAPPING SCREW 4X14
101 TAPPING SCREW 4X18
102 HANDLE COVER
103 TAPPING SCREW 4X18
104 FLAT WASHER 14
105 RING SPRING 15
106 FLAT WASHER 17
107 RUBBER WASHER 16
A05 SDS-PLUS BIT SET
LOCK BUTTON (OLD)
STOP RING E-6 (OLD)
FLAT WASHER 7 (OLD)
A01 DEPTH GAUGE
A02 PLASTIC CASE COMPLETE
A03 HR2611FX5 PLASTIC CASE LABEL
A04 DUSTCUP SET
OIL SEAL 12 (OLD)
