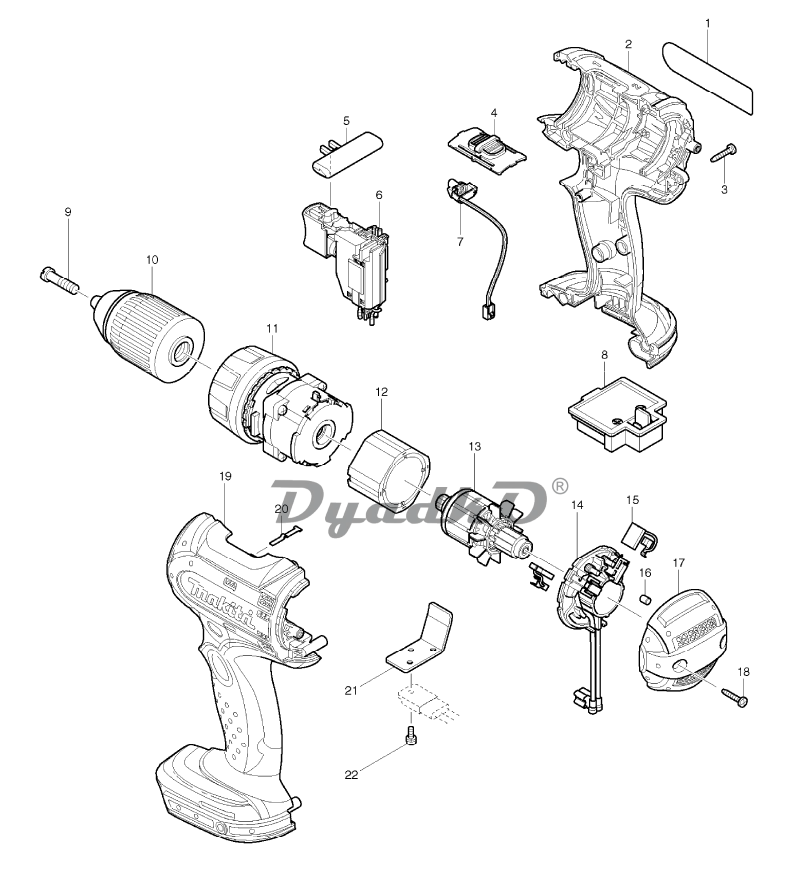

Схема (деталировка) шуруповёрты MAKITA BDF 452. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	BDF452 NAME PLATE
2	HOUSING SET INC. 19
3	TAPPING SCREW BIND PT 3X16
4	SPEED CHANGE LEVER ASS\'Y
5	F/R CHANGE LEVER
6	SWITCH C3HZ-1A-TLM
7	LED CIRCUIT
8	TERMINAL
9	- FLAT HEAD SCREW M6X22
10	KEYLESS DRILL CHUCK 13
11	GEAR ASS’Y
12	YOKE UNIT
13	ARMATURE
14	BRUSH HOLDER COMPLETE
15	CARBON BRUSH CB-440
16	RUBBER PIN 4
17	REAR COVER
18	TAPPING SCREW BIND PT3X16
19	HOUSING SET INC. 2
20	LEAF SPRING
21	HEATSINK
22	PAN HEAD SCREW M3X8
A01	DC18RC FAST CHARGER (NEW)
	DC18RA FAST CHARGER (OLD)
A02	+- BIT 2-45
A03	PLASTIC CASE COMPLETE (NEW)
	PLASTIC CARRYING CASE (OLD)
A04	BATTERY BL1830 SET
A05	BDF452RFE PLASTIC CASE LABEL
	BDF452RFE PLASTIC CASE LABEL
	BDF452RFLE PLASTIC CASE LABEL
A06	BATTERY COVER
A07	185RECHARGEABLE JOB SITE LIGHT INC. A08,A09
A08	HOOK PLATE
A09	STRAP G0970200500
E01	HOOK (NEW)
	HOOK (OLD)
E02	+ SCREW M4X12
