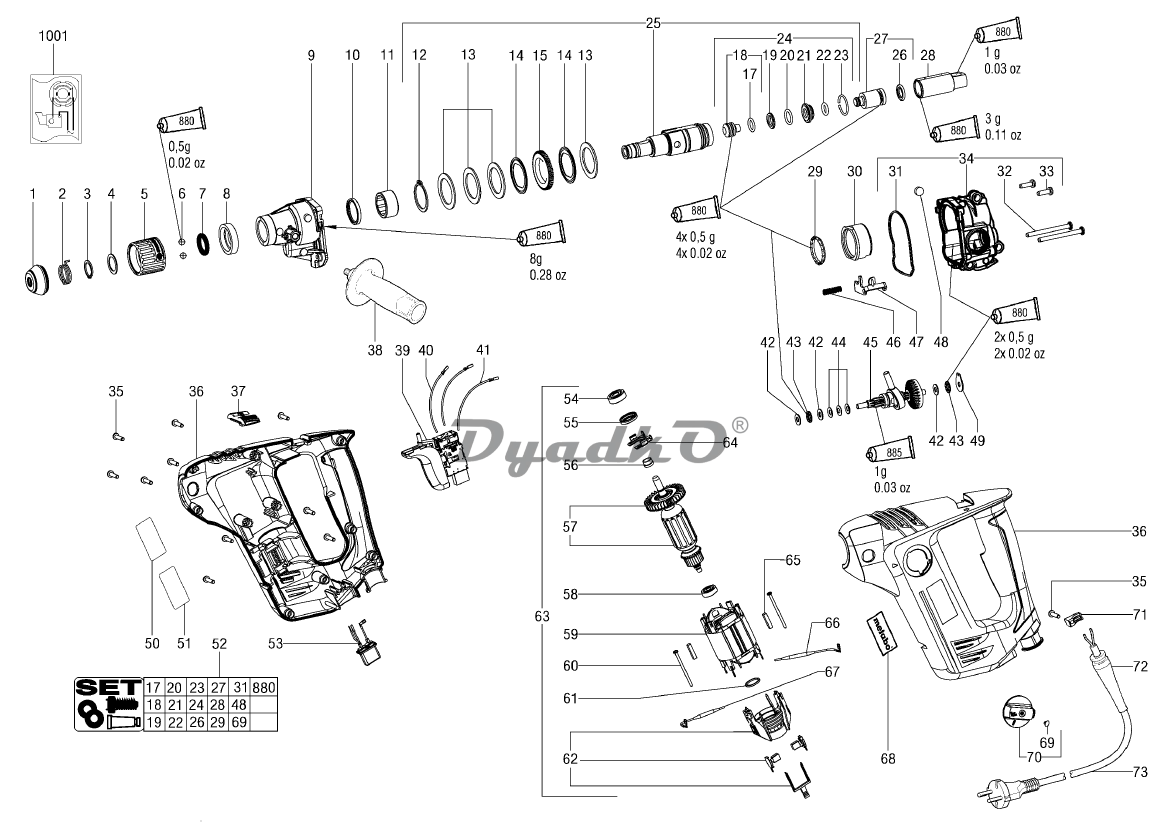

Схема (деталировка) перфораторы METABO BHE 20 Compact (00402000). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Rubber cap
2	Torsion spring
3	Retaining ring
4	Washer
5	Adjusting ring
6	Ball
7	Tension-spring ring
8	Spacer ring
9	Gear housing cpl.
10	Seal
11	Needle sleeve
12	Retaining ring
13	Cup spring
14	Friction washer
15	Spur gear
17	O-ring
18	Piston cpl.
19	Damping ring
20	O-ring
21	Catching sleeve
22	O-ring
23	Circlip
24	Catching sleeve cpl.
25	Safety clutch compl.
26	Sealing ring
27	Striker cpl.
28	Exciter sleeve
29	Ball holder
30	Bearing ring
31	Seal
32	Fillister head screw
33	Fill. head screw(DIN 7985)
34	Gear housing cpl.
35	Self-tap fill h screw
36	Housing w.cover 2 part
37	Switch slide R+L
38	Anti-vibration handle,M 8
39	Poti switch 230V
40	Strand
41	Strand
42	Washer
43	Axial needle bearing
44	Cup spring
45	Intermediate gear cpl.
46	Pressure spring
47	Shift fork
48	Felt seal
49	Butting sheet
50	Part not needed
51	Rating plate
52	Maintenance kit 120 V
53	Female appliance socket compl.
54	Ball bearing, 8x22x7
55	Spacer ring
56	Spacer sleeve
57	Armature cpl. 230 V
58	Ball bearing, 6X 19X 6
59	Field coil 230 V
60	Screw
61	O-ring
62	Brush compl. w.bearing clamp
63	Motor cpl. 230 V
64	Bearing cover
65	Rubber plug
66	Interf. suppr.
67	Interf. suppr.
68	M-Label,08 52x22
69	Seal
70	Control knob cpl.
71	Cable clip
72	Cable sleeve
73	Cable with plug
880	Grease FG 126
885	Grease SF 011 50Gr 1,8oz
1001	Diagram
