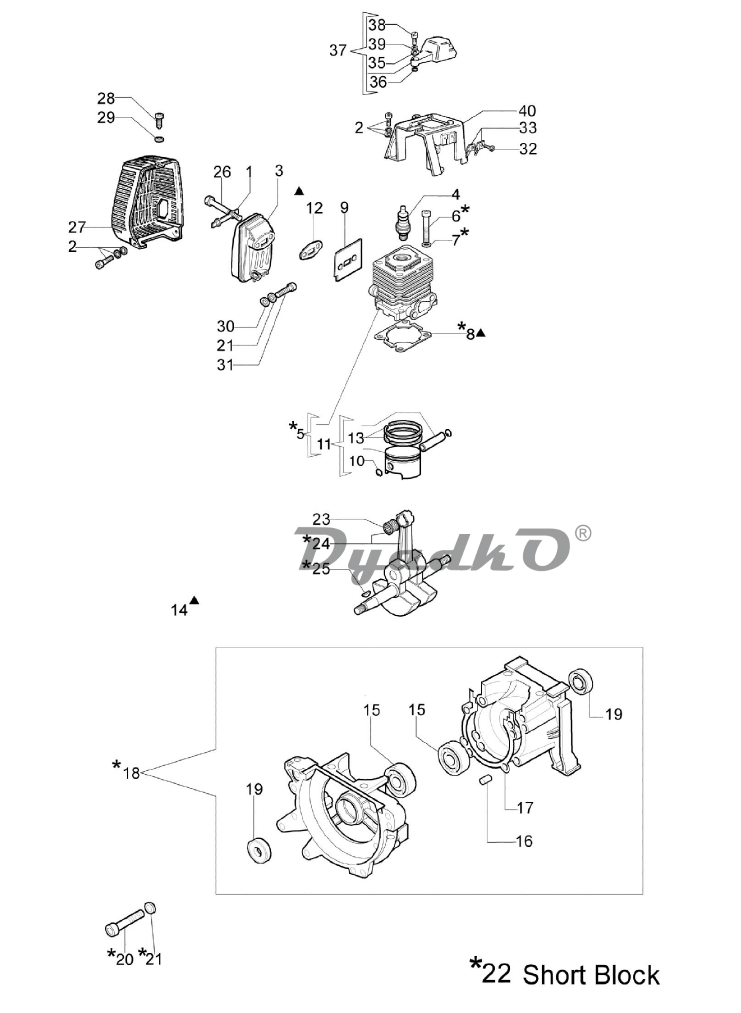

Схема EFCO 8460 Engine
1
Plate
2
Screw
3
Muffler
4
Spark plug
5
Complete cylinder sn 1771293618 BT3-081- 03/09, BT3-109- 11/11
6
Screw
7
Washer
8
Gasket
9
Gasket
10
Ring sn 1771293617 BT3-081- 03/09, BT3-109- 11/11
11
Ring sn 1771293618 BT3-109- 11/11
11
Piston assy 042 sn 1771293617 BT3-081- 03/09, BT3-109- 11/11
11
Piston assy 042 sn 1771293618 BT3-109- 11/11
12
Gasket
13
Piston ring 042 BT3-081- 03/09, BT3-109- 11/11
14
Gasket set
15
Bearing
16
Pin
17
Gasket
18
Crankcase assy
19
Seal ring
20
Screw
21
Washer
22
Short block
23
Bearing
24
Crankshaft
25
Key
26
Screw
27
Muffler cover
28
Screw
29
Washer
30
Sealing washer
31
Screw
32
Screw sn 1771483699 BT3-112- 01/12
33
Plate sn 1771483699 BT3-112- 01/12
35
Washer
36
O-ring
37
Guard
38
Screw
39
Washer
40
Cover sn 1771483700 BT3-112- 01/12
