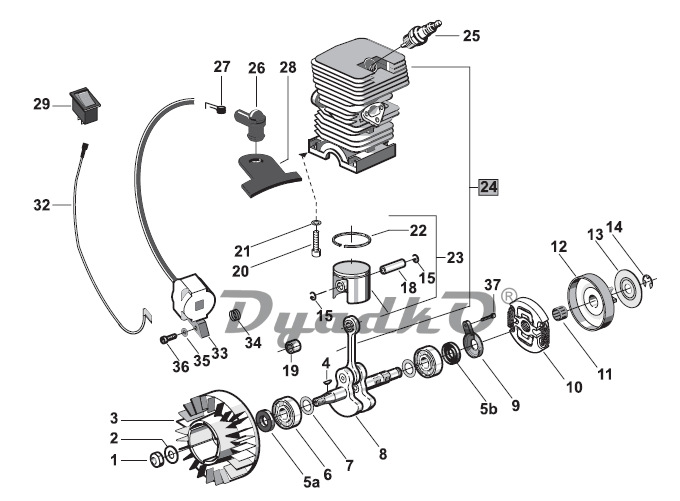

| 1 | Nut |
| 2 | Washer |
| 3 | Flywheel |
| 4 | Flywheel Key |
| 5a | Seal Ring |
| 5b | Seal Ring |
| 6 | Ball Bearing |
| 7 | Washer |
| 8 | Crankshaft (+19) |
| 9 | Case |
| 10 | Clutch Assy |
| 11 | Needle Bearing |
| 12 | Sprocket |
| 13 | Washer |
| 14 | Circlip |
| 15 | Circlip |
| 18 | Piston Pin |
| 19 | Needle Bearing |
| 20 | Screw |
| 21 | Washer |
| 22 | Piston Ring |
| 23 | Piston Assy (Incl. 15,18,22) |
| 24 | Cylinder Pistor Assy |
| 25 | Spark Plug |
| 26 | Spark Plug Cover |
| 27 | Spring |
| 28 | Protection |
| 29 | Switch |
| 32 | Earth Cable |
| 33 | Electronic Coil |
| 34 | Spring |
| 35 | Washer |
| 36 | Screw |
| 37 | Screw |
