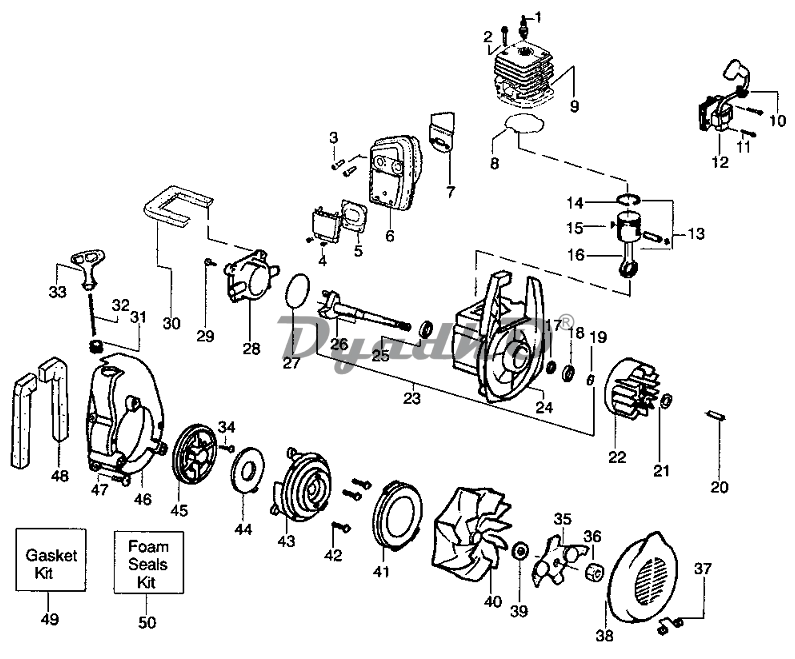

Схема CRAFTSMAN 358.797342 (797342) CYLINDER, CRANKCASE, CRANKSHAFT

1 Engine N/P
2 Lawn & garden equipment engine cylinder head bolt 530015953
3 Lawn & garden equipment screw 530016387
4 Lawn & garden equipment screw 530015241
5 Leaf blower spark screen kit 530071593
6 Muffler 530071834 Substitution: 530071592
7 Leaf blower gasket kit 530071458
8 Leaf blower gasket kit 530071458
9 Lawn & garden equipment engine cylinder assembly 530071457
10 Grommet 530019182
11 Lawn & garden equipment screw 530016357
12 Lawn & garden equipment engine ignition coil 530035505
13 Lawn & garden equipment engine piston and ring kit 530071833
14 Piston ring 530055120 Substitution: 545154001
15 Blower wrist pin retainer 530015162
16 Connect assembly 530069945 Substitution: 530049817
17 Seal 530071615
18 Bearing c\'ca 530055728
19 Ring 530015941
20 Flywheel 530016190
21 Lawn & garden equipment washer 530015149
22 Chainsaw flywheel 530039209
23 Crankcase 530071456
24 Crankcase 530012492
25 Lawn & garden equipment bearing 530032125
26 Crankshaft 530012452
27 Leaf blower gasket kit 530071458
28 Crankcase cover 530012443
29 Lawn & garden equipment screw 530015810
30 Foam seal kit 530071459
31 Eyelet 530029182
32 Leaf blower rope 530071467
33 Leaf blower recoil starter handle 530049488
34 Lawn & garden equipment screw 530016391
35 Leaf blower mulch blade 530095461 Substitution: 530095355
36 Lawn & garden equipment nut 530626605
37 Spring-return cover 530402043
38 Leaf blower door inlet 530049313
39 Lawn & garden equipment washer 530016240
40 Leaf blower fan assembly 530069817
41 Oring seal 530056625
42 Lawn & garden equipment screw 530016349
43 Leaf blower pulley 530055101
44 Starter spring 530042086 Substitution: 545008011
45 Start pulley 530071466 Substitution: 530054425
46 Fan housing 530055102
47 Lawn & garden equipment screw 530015810
48 Foam seal kit 530071459
49 Leaf blower gasket kit 530071458
50 Foam seal kit 530071459
NI04 Throttle lever 530071715
NI05 Leaf blower throttle 530071726
NI06 Choke lever kit 530071716 Substitution: 545081819
NI07 Leaf blower choke 530071725
NI01 Leaf blower owner\'s manual 530163801
NI02 Warning decal 530057414
NI03 Start decal 530055811
