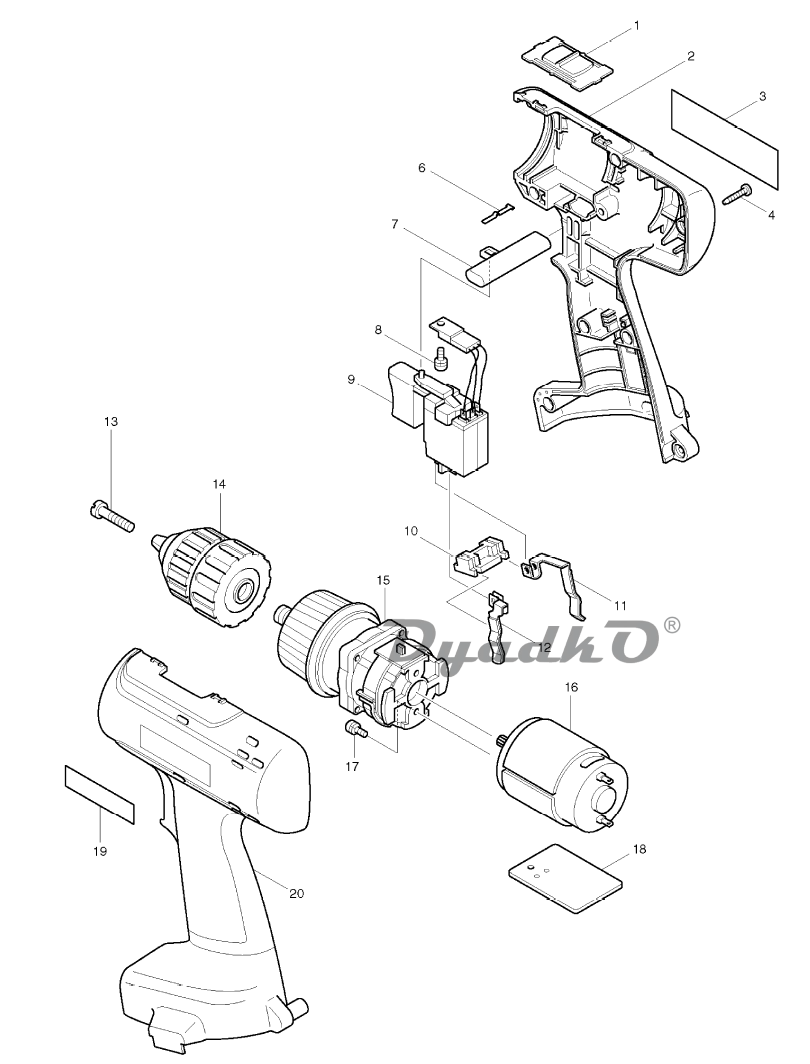

Схема MAKITA 6228 D

1	SPEED CHANGE LEVER ASS\'Y 1
2	HOUSING SET 1 INC. 20
3	MAME PLATE 6228D (NEW)
4	TAPPING SCREW BIND PT 3X16 9
6	LEAF SPRING 1
7	F/R CHANGE LEVER 1
8	PAN HEAD SCREW M3X6 1
9	SWICTH
10	HOLDER 1
11	SPRING TERMINAL
12	SPRING TERMINAL
13	- PAN HEAD SCREW M5X22 1
14	KEYLESS DRILL CHUCK 10 1
15	GEAR ASS\'Y 1
16	DC MOTOR (NEW)
17	PAN HEAD SCREW M3X6 2
18	HEAT SINK 1
19	MAKITA LABEL 1
20	HOUSING SET 1 INC. 2
A04	BATTERY 1420 SET 2
	DC MOTOR (OLD)
A01	BATTERY COVER 2
A02	+- BIT 2-65 1
A03	PLASTIC CARRYING CASE
	MAME PLATE 6228D (OLD)
