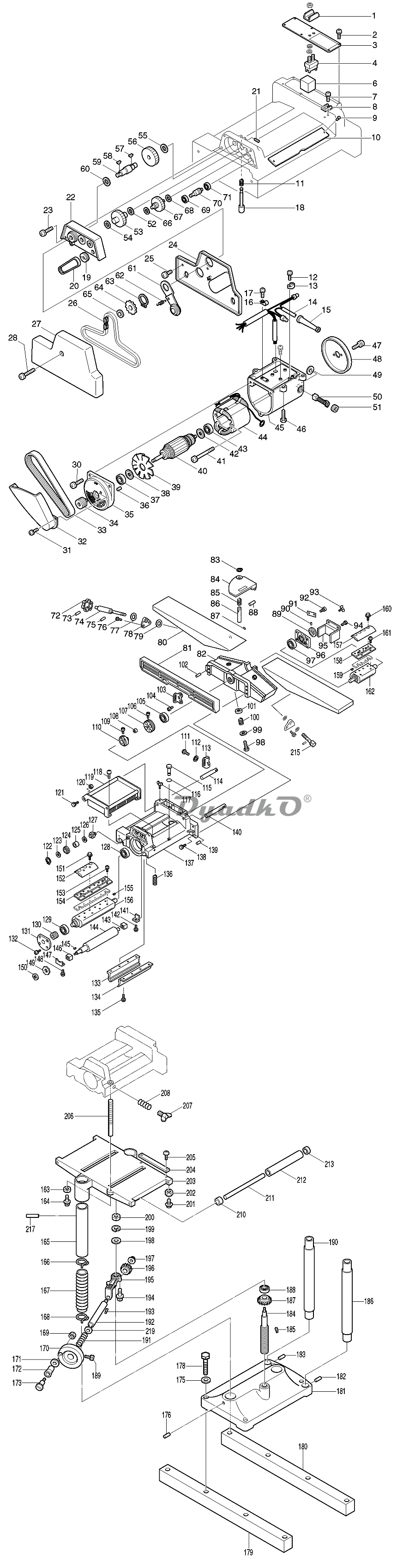

Схема MAKITA 2030


1 SWITCH PROTECTOR
2 PAN HEAD SCREW M4X1
3 SWITCH PLATE
4 SWITCH ABK266
6 SPONGE SHEET 60X60
7 PAN HEAD SCREW M4X1
9 RIVET 2-5
10 NAME PLATE 2030
11 COMPRESSION SPRING
12 PAN HEAD SCREW M4X1
13 STRAIN RELIEF
14 POWER SUPPLY CORD \'
15 CORD GUARD 9.3-90
16 STRAIN RELIEF
17 PAN HEAD SCREW M4X1
18 STOPPER PIN
19 V-PULLEY 3-30 (L)
20 POLY V-BELT 3-285
21 SPRING PIN 4-24
22 GEAR HOUSING COVER
23 PAN HEAD SCREW M5X3
24 CHAIN COVER (A)
25 PAN HEAD SCREW M5X1
26 CHAIN 35-76
27 CHAIN COVER (B)
28 PAN HEAD SCREW M5X4
30 PAN HEAD SCREW M5X2
31 PAN HEAD SCREW M5X1
32 BELT COVER
33 POLY V-BELT 9-563
34 V-PULLEY 9-30
35 BRACKET COMPLETE
36 RUBBER PIN 6
37 BALLBEARING 6201LLB
38 DUST SEAL 12
39 FAN 92
40 ARMATURE ASS\'Y 220V INC. 37-39,42,43
41 PAN HEAD SCREW M5X9
42 DUST SEAL 10
43 BALLBEARING 6200LLB
44 FIELD ASS\'Y 220V
45 MOTOR HOUSING
46 HEX. SOCKET HEAD BOL
47 PAN HEAD SCREW M5X1
48 REAR COVER
49 INSULATION WASHER
50 CARBON BRUSH CB-153
51 BRUSH HOLDER CAP 6.5
52 FLAT WASHER 12
53 GEAR COMPLETE 13-52
54 FLAT WASHER 12
55 FLAT WASHER 14
56 HELICAL GEAR 59
57 WOODRUFF KEY 4
58 WOODRUFF KEY 4
59 DRIVING SHAFT
60 FLAT WASHER 14
61 TENSIONER
62 TENSION SPRING 9
63 RETAINING RING S-30
64 SPROCKET 15
65 RETAINING RING S-12
66 FLAT WASHER 10
67 GEAR COMPLETE 11-61
68 FLAT WASHER 10
69 BALLBEARING 608LLB
70 HELICAL GEAR 12
71 BALLBEARING 608LLB
72 KNOB 70
73 SPRING PIN 5-28
74 ADJUST POLE
75 SPRING PIN 6-24
76 HEX. BOLT M8X30
77 FLAT WASHER 14
78 BAR HOLDER
79 FLAT WASHER 14
80 ADJUST BED
81 RULER
82 SUB FRAME ASS\'Y
83 RETAINING RING S-12
84 DRUM COVER
85 TORSION SPRING 14
86 ROD 12-125
87 INDICATION LABEL
88 SPRING PIN 4-24
89 KNOB 40
90 SPRING PIN 4-32
91 SCALE PLATE
92 PAN HEAD SCREW M5X1
93 SCREW M6X20
94 HEX. BOLT M6X20
95 CHIP GUIDE
96 BEARING COVER
97 BALLBEARING 6203LLB
98 HEX. BOLT M12X55
99 FLAT WASHER 12
100 COMPRESSION SPRING
101 CUP WASHER 12
102 PIN 10
103 RULER HOLDER (R)
104 PAN HEAD SCREW M5X1*
105 BALLBEARING 6203LLB
106 HEX. SOCKET HEAD BOL
107 V-PULLEY 9-63
108 URETHANE SLEEVE 10
109 HEX. SOCKET HEAD BOL
110 COUPLING
111 HEX. FLANGE HEAD BOL*
112 FLAT WASHER 8
113 RULER HOLDER (L)
114 RULER BAR (S)
115 STOPPER
116 O RING 4
117 SCREW M6X20
118 PAN HEAD SCREW M5X1
119 CHIP COVER
120 NUT M8-25
121 HEX. BOLT M8X16
122 RETAINING RING S-12
123 FLAT WASHER 12
124 TENSION ROLLER
125 NEEDLE BEARING 1212
126 FLAT WASHER 12
127 TENSION CORE
128 BALLBEARING 6303LLB
129 BALLBEARING 6303LLB
130 V-PULLEY 3-25
131 BEARING BOX
132 PAN HEAD SCREW M5X1*
133 PRESSURE PLATE
134 CHIP BREAKER
135 PAN HEAD SCREW M5X1*
136 COMPRESSION SPRING
137 MAIN FRAME
138 HEX. BOLT M10X50
139 PIN 10
140 RULER BAR (L)
141 METAL COVER (A)
142 HEX. SOCKET HEAD BOL
143 PLANE BEARING 14
144 ROLLER 50-284
145 WOODRUFF KEY 4
146 PLANE BEARING 14
147 METAL COVER (B)
148 HEX. SOCKET HEAD BOL
149 SPROCKET 15
150 RETAINING RING S-12
151 HEX. FLANGE HEAD BOL*
152 DRUM COVER 300
153 PAN HEAD SCREW M5X1
154 BLADE HOLDER 300
155 KEY 5
156 MAIN DRUM
157 DRUM COVER 155
158 BLADE HOLDER 155
159 KEY 5
160 HEX. FLANGE HEAD BOL*
161 PAN HEAD SCREW M5X1
162 SUB DRUM
163 HEX. NUT M6
164 PAN HEAD SCREW M6X4
165 COLUMN
166 SNAP RING 65
167 BELLOWS
168 SNAP RING 55
169 HEX. NUTM10
170 HANDLE 175 COMPLETE
171 FLAT WASHER 10
172 GRIP 30
173 - BOLT M10
175 FLAT WASHER 10
176 SPRING PIN 8-90
178 HEX. BOLT M10X105
179 STABLE BASE (NEW)
180 STABLE BASE (NEW)
181 BASE
182 SPRING PIN 8-20
183 SPRING PIN 8-20
184 SCREW M24
185 WOODRUFF KEY 4
186 PIPE 42-505
187 STRAIGHT BEVEL GEAR\'
188 THRUST NEEDLE BEARir
189 HEX. BOLT M8X20
190 PIPE 42-465
191 COMPRESSION SPRING
192 HANDLE SHAFT
193 WOODRUFF KEY 4
194 HEX. SOCKET HEAD BOL
195 HANDLE SUPPORTER
196 STRAIGHT BEVEL GEAR\'
197 RETAINING RING S-15
198 FLAT WASHER 12
199 SPRING WASHER 12
200 HEX. NUTM12
201 PAN HEAD SCREW M6X3
202 HEX. NUT M6
203 MAIN BED
204 RULER
205 COUNTERSUNK HEAD S<
206 SCALE BAR
207 SCREW M6X20
208 COMPRESSION SPRING
210 PLANE BEARING 10
211 ROD 10-315
212 ROLLER 26-265
213 PLANE BEARING 10
215 ADJUST SCREW ASS\'Y
217 SPRING PIN 8-80
219 FLAT WASHER 18
220 SCALE LABEL
221 RIVET 2-5
400 SHARPENING HOLDER A:
404 TRIANGULAR RULE
405 WRENCH 10-13
406 HEX. FLANGE HEAD BOL*
407 (+) SCREWDRIVER 2
408 PLANER BLADE 306
409 PLANER BLADE 155
410 LEVELLER FOR SETTING
411 EXTENSION GUIDE
412 SOCKET WRENCH 13
413 WOODEN LEVVELER (NEW)
414 PLASTIC CASE
STABLE BASE (OLD)
WOODEN LEVVELER (OLD)
STABLE BASE (OLD)
