JV0600 K

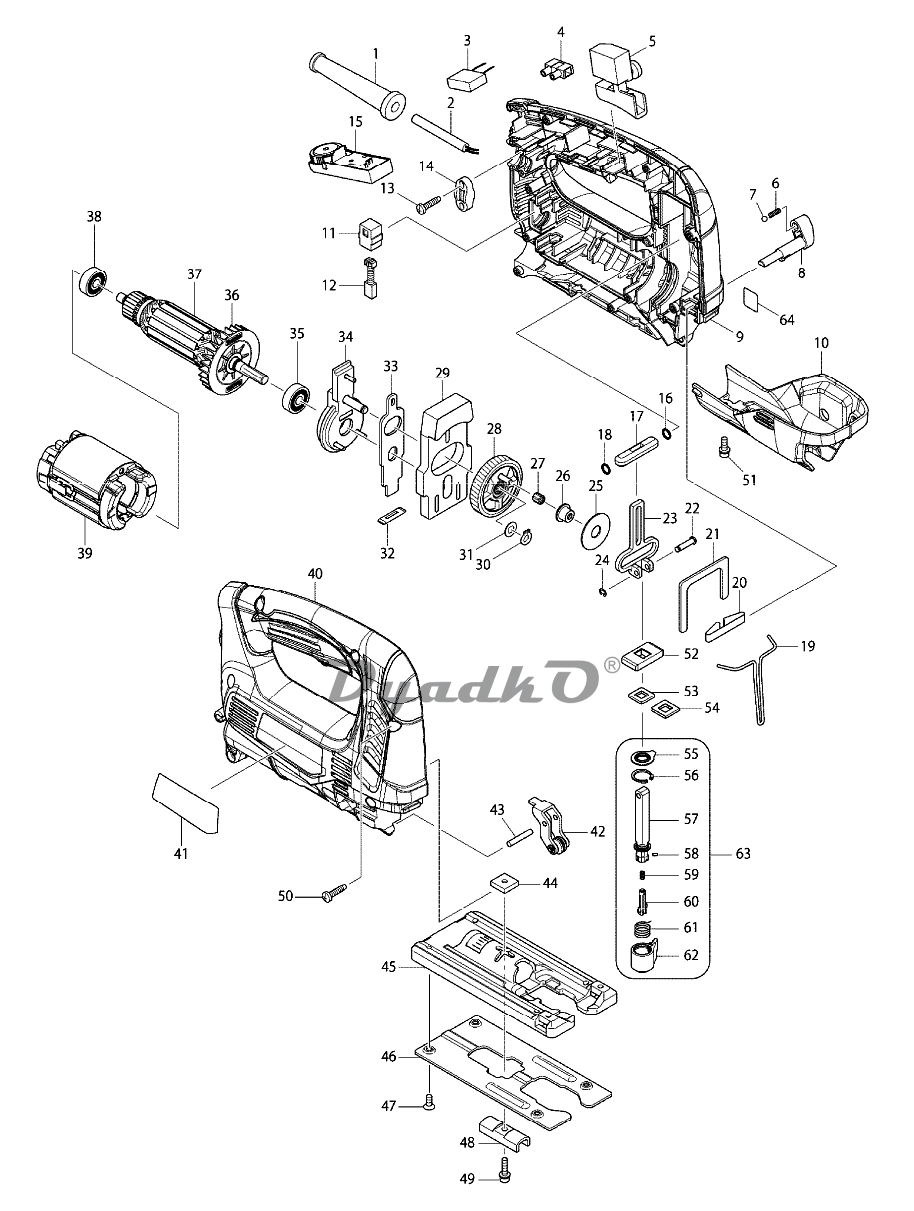

Схема MAKITA JV0600 K JV 0600 K
1
CORD GUARD 8-85
2
POWER SUPPLY CORD 1.0-2-4.0
3
NOISE SUPPRESSOR
4
TERMINAL BLOCK 1P
5
SWITCH SGEL115CDY-8
6
COMPRESSION SPRING 4
7
STEEL BALL 4
8
LEVER 18
9
HOUSING SET INC. 40
10
HOUSING COVER
11
BRUSH HOLDER 5-8
12
CARBON BRUSH CB-64
13
TAPPING SCREW 4X18
14
STRAIN RELIEF
15
CONTROLLER
16
O RING 5
17
SLIDER GUIDE
18
O RING 5
19
SAFETY WIRE
20
LEAF SPRING
21
SLIDER GUIDE PLATE
22
PIN 4
23
SLIDER
24
STOP RING E-3
25
FLAT WASHER 10
26
SHOULDER SLEEVE 7
27
NEEDLE CAGE 407
28
GEAR COMPLETE
29
BALANCE PLATE
30
RETAINING RING S-6
31
FLAT WASHER 6
32
DUST SEAL
33
PUSH PLATE
34
BEARING CASE COMPLETE
35
BALL BEARING 608DDW
36
FAN 55
37
ARMATURE ASS\'Y 220V INC. 35,36,3
38
BALL BEARING 627DDW
39
FIELD 240V
40
HOUSING SET INC. 9
41
JV0600 NAME PLATE
42
RETAINER COMPLETE
43
PIN 4
44
HOLDER
45
BASE
46
BASE PLATE
47
COUNTERSUNK HEAD SCREW M4X8
48
CLAMP COMPLETE
49
H.S.H.BOLT M4X20 WITH WR
50
TAPPING SCREW 4X18
51
HEX. SOCKET HEAD BOLT M4X12
52
SLIDER SUPPORT
53
POLYURETHANE SPONGE SEAL
54
SEAL PLATE
55
DUST COVER
56
RETAINING RING R-13
57
ROD
58
PIN 2
59
COMPRESSION SPRING 4
60
LOCK PIN
61
TORSION SPRING 10
62
INSERT HOLDER
63
ROD ASS\'Y INC. 55-62
A01
JIGSAW BLADE NO.B10
A02
HEX. WRENCH 3
A03
PLASTIC CARRYING CASE
A04
JIG SAW BLADE ASSORTMENT
