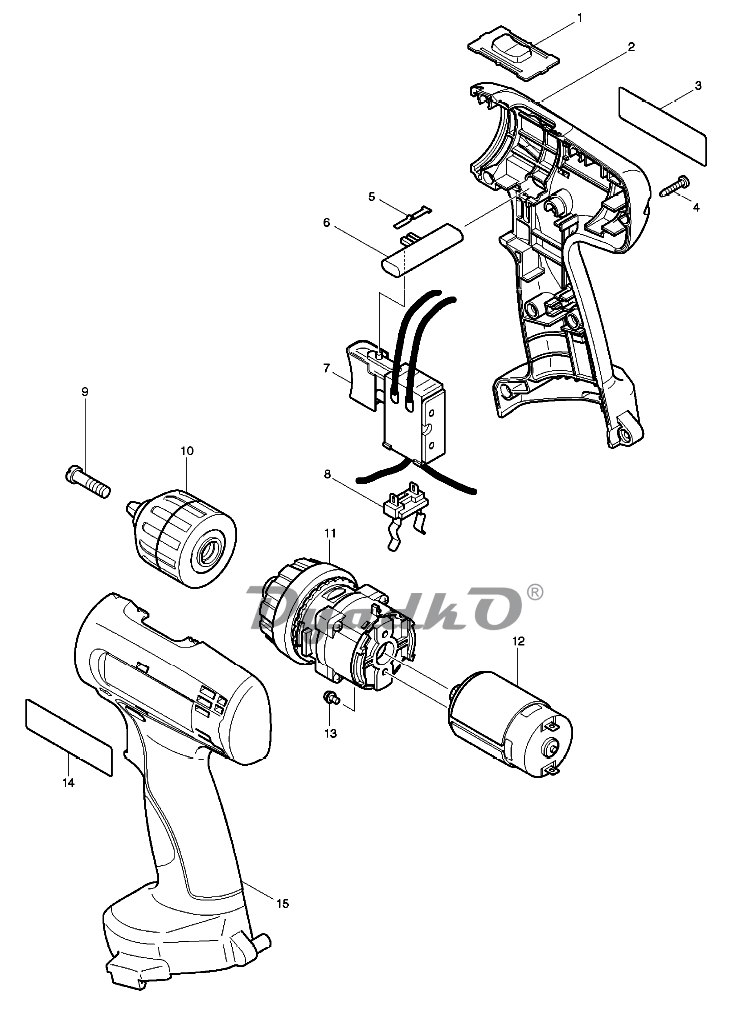

Схема MAKITA 6280 D
1
SPEED CHANGE LEVER ASS\'Y
2
HOUSIBG SET (NEW)
3
NAME PLATE
4
TAPPING SCREW BIND PT 3X16
5
LEAF SPRING
6
F/R CHANGE LEVER
7
SWITCH C3NA-1-M1
8
BATTERY HOLDER
9
FLAT HEAD SCREW M6X22
10
KEYLESS DRILL CHUCK 10
11
GEAR ASS\'Y
12
DC MOTOR
13
PAN HEAD SCREW M3X6
14
MAKITA LABEL
15
HOUSIBG SET (NEW)
A02
DC1414 BATTERY CHARGER
A03
BIT 2-65
A04
PLASTIK CARRYING CASE
A05
BATTERY PA14 SET
A06
HOOK PLATE
A07
STRAP G0970200500
HOUSIBG SET (OLD)
A08
ML140 RECHARGEABLE FLASHLIGHT
HOUSIBG SET (OLD)
A01
BATTERY COVER
