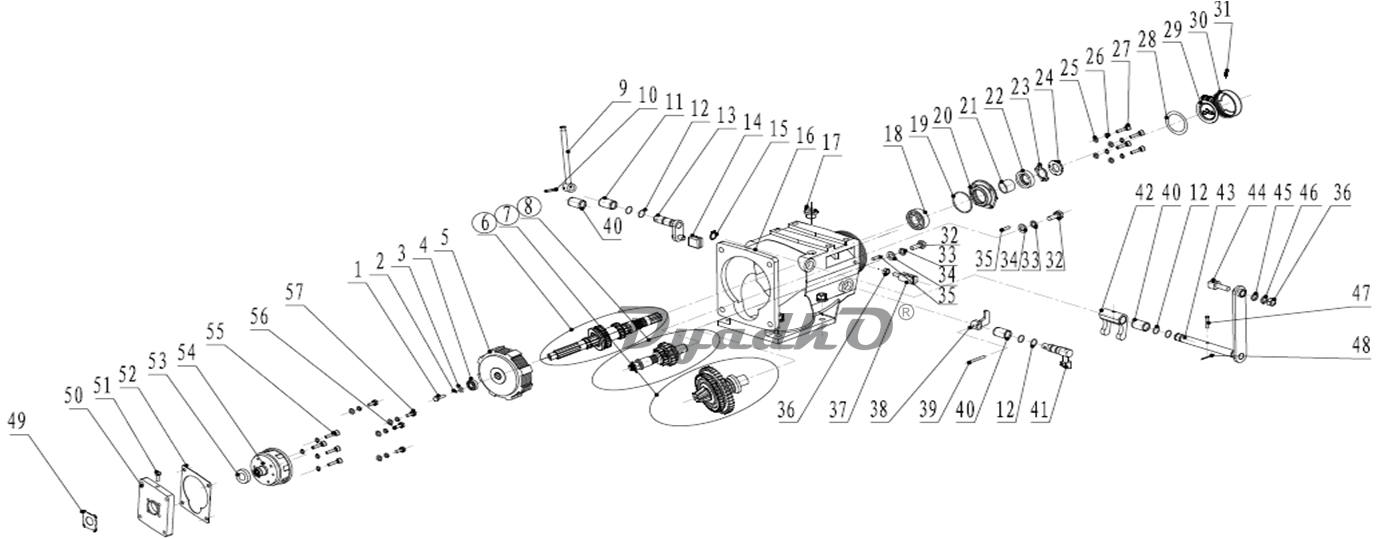

Схема (деталировка) культиваторы бензиновые и мотоблоки HUTER GMC-9.0 Gear Box Assy. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Hex bolt M8 x 20
2	External tooth lock washer 8
3	Flat washer ∅ 15 × ∅ 25 × 2.5
4	Bearing 6202
5	Clutch core
6	The first shaft assembly
7	The second shaft assembly
8	The third shaft assembly
9	Shift arm
10	Cylindrical pin (lacerations pin) ∅ 6 × 30
11	Sleeve ∅ 16 × ∅ 20 × 35.5
12	O-ring 11.2 × 2.65
13	Fork shaft
14	Fork
15	Shaft end retaining ring
16	Gearbox
17	Oil dipstick
18	Bearing 6204
19	O-ring 45 × 1.8
20	Gland
21	Sleeve ∅ 20 × ∅ 25 × 12.5
22	Seal 25 × 40 × 7
23	Washers with 20
24	Round nut M20 × 1.5
25	Flat washer 6
26	Spring washer 6
27	Screw M6 × 20
28	Non-standard steel gasket ∅ 72.5 × ∅ 87 × 0.5
29	Pumps dust cover
30	Locking disk
31	Slotted flat socket set screws M8 × 12
32	Hexagonal bolts M10 × 25
33	Spring washers 10
34	Flat washer 10
35	Cylindrical pin ∅ 5 × 10
36	Hex nut M8
37	Cable seat
38	Fork
39	Threaded cylindrical pin
40	Sleeve
41	Fork shaft
42	Fork
43	Fork shaft
44	Cable seat
45	Flat washer 8
46	Spring washer 8
47	Pin 6 × 30
48	Cotter pin 1.6 × 20
49	Paper pad
50	Flange plate
51	Relief hex bolts
52	Paper pad
53	Bearing 6206
54	Clutch cover
55	Hexagon screw M8 × 25
56	Hex bolts M10 × 35
57	Hex bolts M10 × 40
