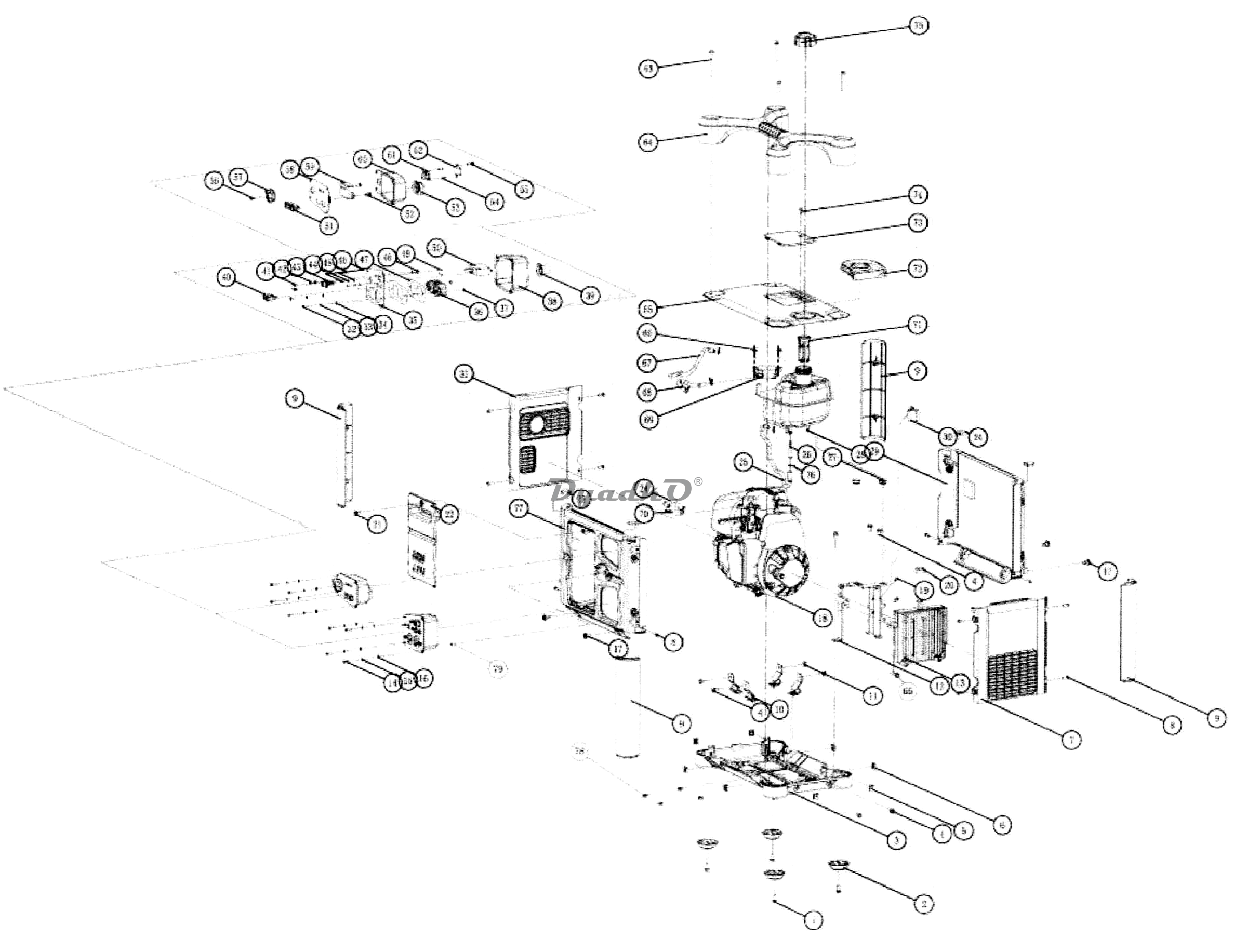

Схема DDE DPG1001Si 02 Генератор в сборе

1	FLG. BOLT M6x15
2	MOUNT RUBBER,BASE SETTING
3	BASE SETTING
4	FLG. BOLT M6x12
5	NUT M5
6	NUT M6
7	COVER COMP .,RH.
8	SCREW M5x14
9	ART COVER
10	MOUNT RUBBER,ENGINE
11	FLG . BOLT M6x8
12	BRACKET,FUEL TANK
13	CONTROLLER ASSY.
14	SCREW M4x14
15	SPRING WASHER ⌀4
16	FLAT WASHER ⌀4
17	BOLT M6
18	ENGINE
19	SCREW M5x14
20	MOUNT RUBBER,CONTROLLER
21	BOLT M6x14
22	MAINTENANCE COVER
23	NUT M6
24	PIPE,FUEL
25	PIPE,FUEL
26	PIPE,FUEL
27	BUFFER
28	FUEL TANK ASSY
29	SUPPORTER,BACK COVER
30	Parallel terminal
31	COVER COMP.LH.
32	SCREW M4x14
33	SPRING WASHER ⌀4
34	FLAT WASHER ⌀4
35	OUTPUT PANEL COMP.
36	Receptacle
37	NUT M4
38	CONTROL BOX,OUTPUT PANEL
39	Rubber plug for panel box
40	Parallel terminal
41	SCREW M2x10
42	NUT M5
43	Comunication Receptacle
44	SCREW M3x6
45	SPRING WASHER ⌀4
46	FLAT WASHER ⌀4
47	INSULATING PAPER
48	NUT M5
49	NUT M2
50	breaker
51	SWITCH,FLAMEOUT
52	BOLT M5x14
53	JACKET,CONTROL BOX
54	SELF-TAPPING SCREW 2.9X13
55	SELF-TAPPING SCREW 3.5X13
56	SCREW M4x10
57	FUEL KNOB
58	OPERATE PANEL COMP.
59	SPEED LIMITER
60	CONTROL BOX,OPERATE PANEL
61	FUEL COCK COMP .
62	TCI UNIT
63	BOLT M6x50
64	GRIPE COMP.
65	COVER,TOP
66	FLG . BOLT M6x20
67	DIAPHRAGM TUBE COMP.
68	PIPE,FUEL
69	FUEL PUMP ASSY.
70	clip
71	FUEL FILTER
72	SETTING,SPILL PREVENTION
73	MAINTENANCE COVER
74	SCREW M5x12
75	FUEL TANK CAP COMP .
76	clip
77	FRONT COVER ASSY
78	NUT M6
79	SCREW M4x14
