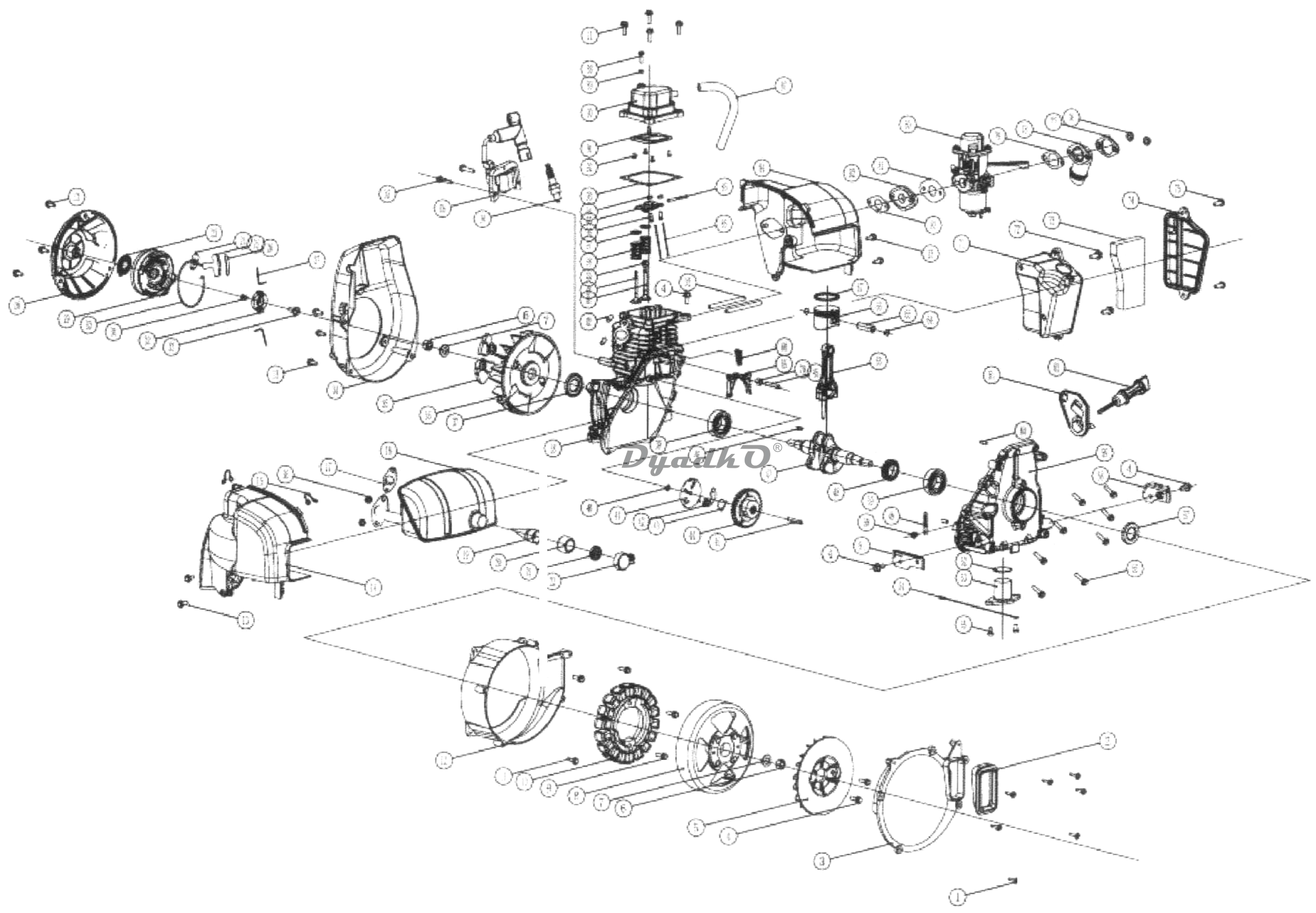

Схема DDE DPG1001Si 01 Двигатель

1 SELF-TAPPING SCREW 4.8x16
2 RUBBER,END COVER
3 GENERATOR END COVER
4 Flange Bolt M6x12
5 FAN, ENGINE
6 Nut M10
7 Washer ⌀10
8 ROTOR COMP.
9 SCREW-WASHER M6x25
10 STATOR COMP.
11 Flange Bolt M5x16
12 END COVER
13 Flange Bolt M5x12
14 MUFF. PROTECTOR Assembly. RH
15 SPRING
16 Nut M6
17 EXHAUST GASKET
18 MUFF .,SYS.
19 COVER,UNDERSIDE
20 SPARK ARRESTER BASE
21 METAL EX. FILTER
22 CLIP
23 SPRING,STARTER RETURN
24 GUIDE,ROPE HANDLE
25 GRIP,STARTER
26 COVER GRIP
27 RATCHET,STARTER
28 CASE COMP .,RECOIL STARTER
29 PULLEY,RECOIL STARTER
30 ROPE
31 SPRG .PAWL GUIDE
32 PAWL GUIDE
33 SCREW,PAWL GUIDE
34 FAN COVER COMP.
35 BUILD UP,FLYWHEEL
36 FLYWHEEL COMP.
37 OIL SEAL
38 CRANKCASE
39 Radial ball bearing 6004
40 Governor Shaft Washer
41 COVER,CAM
42 FLYWEIGHT
43 SPRING DECOMPRESS
44 CAM
45 CAM SHAFT
46 KEY 3X5X13
47 CRANKSHAFT
48 GEAR,DRIVE
49 Wire Clip
50 SCREW-SPRING WASHER M5X10
51 BOARD
52 O-RING ⌀26.5x⌀2.65
53 OIL LEVER SWITCH
54 WIRE,FLAMEOUT
55 SCREW-WASHER M6x16
56 Flange Bolt M5x20
57 OIL SEAL 20X35X5
58 BOARD
59 CRANKCASE COVER
60 DOWEL PIN
61 OIL NOZZLE
62 OIL DIPSTICK Assembly.
63 CONN, ROD COMP.
64 PISTON PIN CUP
65 PIN,PISTON
66 PISTON
67 PISTON RING SET
68 ELEMENT
69 VALVE LIFTER
70 BUSHING ⌀5.2
71 CASE, AIR CLEANER COMP.
72 Flange Bolt M6x15
73 ELEMENT
74 CASE AIR CLEANER
75 BOLT M6x16
76 Nut M6
77 GSKT .,PIPE
78 PIPE,AIR CLEANER
79 GSKT .,AIR CLEANER
80 CARBURETOR COMP.
81 GSKT .,CARB .
82 INSULATOR,CARB .
83 INSULATOR GASKET
84 MUFF .,PROTECTOR COMP ., SIDE
85 PUSH ROD,VALVE
86 SHAFT,ROCKER ARM
87 BREATHER TUBE
88 SCREW M5x14
89 BUSH ⌀5x5
90 CYLINDER HEAD COVER
91 COVER,BREATHER ROOM
92 Screw M3x16
93 HEAD COVER PACKING
94 NUT,VALVE ADJUSTING
95 ROCKER ARM,VALVE
96 NUT,VALVE ADJUSTING
97 RET .,VALVE SPRING(lN .)
98 VALVE SPRING
99 VALVE STEM SEAL
100 EXHAUST VALVE
101 INTAKE VALVE
102 EXHAUST STUD
103 INTAKE STUD
104 SPARK PLUG
105 IGNITION Assembly.
106 Flange Bolt M5x229
