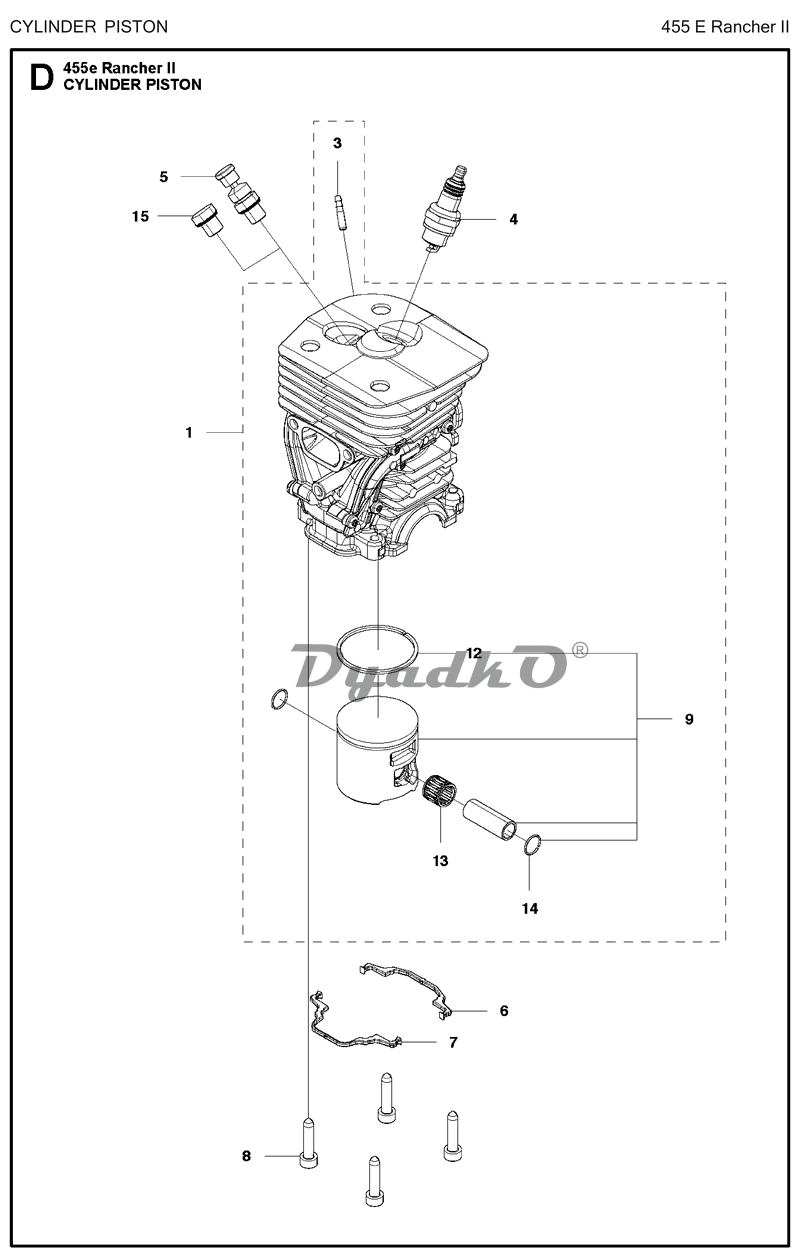

| 1 | CYLINDER ASSY |
| 3 | IMPULSE NIPPLE |
| 4 | SPARK PLUG |
| 5 | DECOMPRESSION VALVE |
| 6 | GASKET |
| 7 | GASKET |
| 8 | SCREW IHSCM |
| 9 | PISTON ASSY |
| 12 | PISTON RING |
| 13 | NEEDLE BEARING |
| 14 | SNAP RING |
| 15 | PLUG |
| 1 | CYLINDER ASSY |
| 3 | IMPULSE NIPPLE |
| 4 | SPARK PLUG |
| 5 | DECOMPRESSION VALVE |
| 6 | GASKET |
| 7 | GASKET |
| 8 | SCREW IHSCM |
| 9 | PISTON ASSY |
| 12 | PISTON RING |
| 13 | NEEDLE BEARING |
| 14 | SNAP RING |
| 15 | PLUG |
