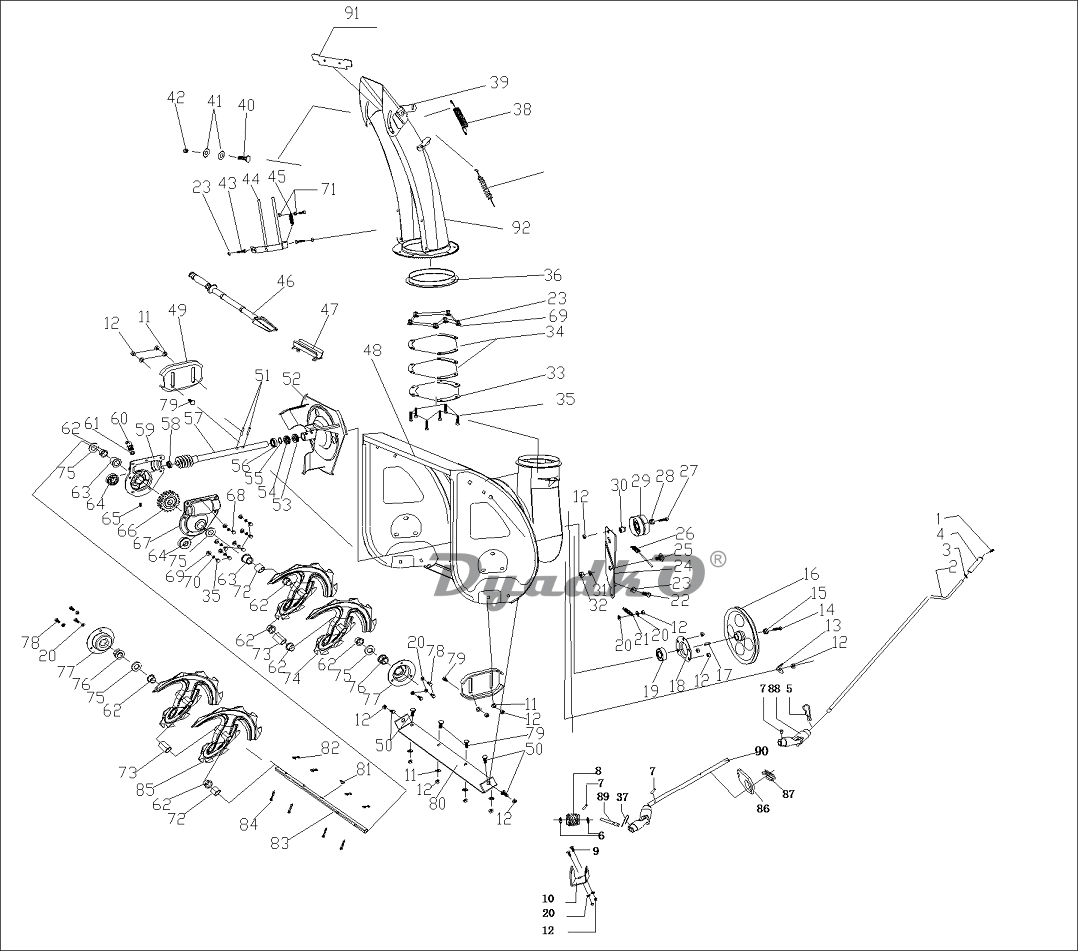

Схема PATRIOT PS 800 DDE (2012г.) SNOW REMOVAL PART

1 flange
2 Rocker handle sleeve
3 plain cushion
4 chute rocker crank
6 washer
7 spring pin
8 helical gear wheel
9 Cup head square neck bolt
10 helical tooth support
11 plain cushion
12 lock nut
13 belt baffle plate
14 hexagonal bolt
15 plain cushion
16 SJ big belt wheel
17 C type key
18 SJ Rockered Cover
19 Pillow block bearing
20 plain cushion
21 spring 5
22 tensioning bolt
23 lock nut
24 tensioning plate
25 hexagonal screw
26 auger wire
27 hexagonal bolt
28 SJ interlay
29 tensioning wheel 2
30 pad cover
31 plain cushion
32 lock nut
33 chute sheeting
34 Chute mat
35 Hexagonal Screw
36 chute pedestal plastic circle
37 split pin
38 discharge chute assy.tension spring
39 chute cap assy.
40 cross coiled hair bolt
41 chute nylon washer
42 lock nut
43 hexagonal bolt
44 discharge chute assy.
45 spring4
46 plastic shovel
47 shovel seat
48 big housing
49 skid
50 Cup head square neck bolt
51 spring pin
52 SJ fan
53 oil seal
54 thrust ball bearing
55 space ring
56 deep groove ball bearing
57 transmission worm wheel shaft
58 deep groove ball bearing
59 SJ pedestal
60 oil nipple
61 corrugated gasket
62 drive shaft sleeve
63 outshaft sleeve
64 oil seal
65 cross coiled hair bolt
66 SJ worm wheel
67 SJ upper pedestal
68 hexagonal screw
69 plain cushion
70 spring washer
71 flange face nut
72 outshaft sleeve24-2
73 outshaft sleeve24-1
74 right auger
75 plain cushion
76 SJ shaft sleeve
77 SJ bearing cover
78 hexagonal screw
79 Cup head square neck bolt
80 SJ long baffle
81 woodruff key
82 pin buckle
83 output shaft
84 output shaft pin
85 left auger
86 rocker support
87 washer
88 cardan joint
89 chute helical rod
