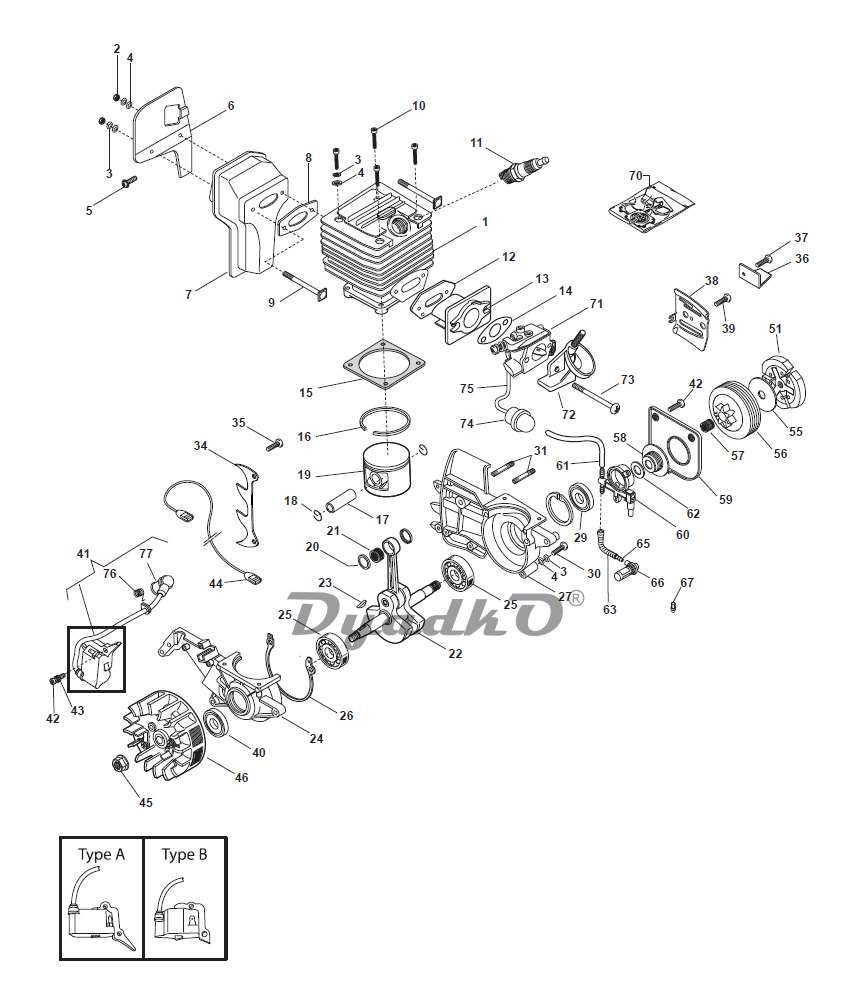

| 1 | Cylinder Assy |
| 2 | Nut |
| 3 | Grower |
| 4 | Flat washer |
| 5 | Screw |
| 6 | Cover Plate |
| 7 | Muffler |
| 8 | Muffler Gasket |
| 9 | Screw |
| 10 | Screw |
| 11 | Spark Plug |
| 12 | Intake Manifold Gasket |
| 13 | Inlake Manifold |
| 14 | Carburettor Gasket |
| 15 | Cylinder Base Gasket |
| 16 | Piston Ring |
| 17 | Piston Pin |
| 18 | Washer. Piston Pin |
| 19 | Piston |
| 20 | Bearing |
| 21 | Needle Bearing |
| 22 | Crankshaft |
| 23 | Flywheel Key |
| 24 | Crank Case |
| 25 | Ball Bearing |
| 26 | Crankcase Gasket |
| 27 | Crank Case |
| 29 | Seal Ring |
| 30 | Screw |
| 31 | Screw |
| 34 | Spike |
| 35 | Screw |
| 36 | Chain Guard |
| 37 | Screw |
| 38 | Bar Plate |
| 39 | Screw |
| 40 | Seal Ring |
| 41 | Electronic Coil TypeB |
| 41 | Electronic Coil Type A |
| 42 | Screw |
| 43 | Washer |
| 44 | Earth Cable |
| 45 | Nut |
| 46 | Flywheel Ass.Y |
| 51 | Clutch Ass.Y |
| 55 | Sprocket Washer |
| 56 | Clutch Drum Assy |
| 57 | Needle Bearing |
| 58 | Worm |
| 59 | Oil Pump Cap |
| 60 | OH Pump Assy |
| 61 | Tube |
| 62 | WasJier |
| 63 | Pickup Oil |
| 65 | Connection |
| 66 | Oil Filter Ass.Y |
| 67 | Ugello |
| 70 | Diaphragm Gasket Set |
| 71 | Carburetor |
| 72 | Intake Manifold |
| 73 | Screw |
| 74 | Primer |
| 75 | Pipe |
| 76 | Spring |
| 77 | Spark plug Cap |
