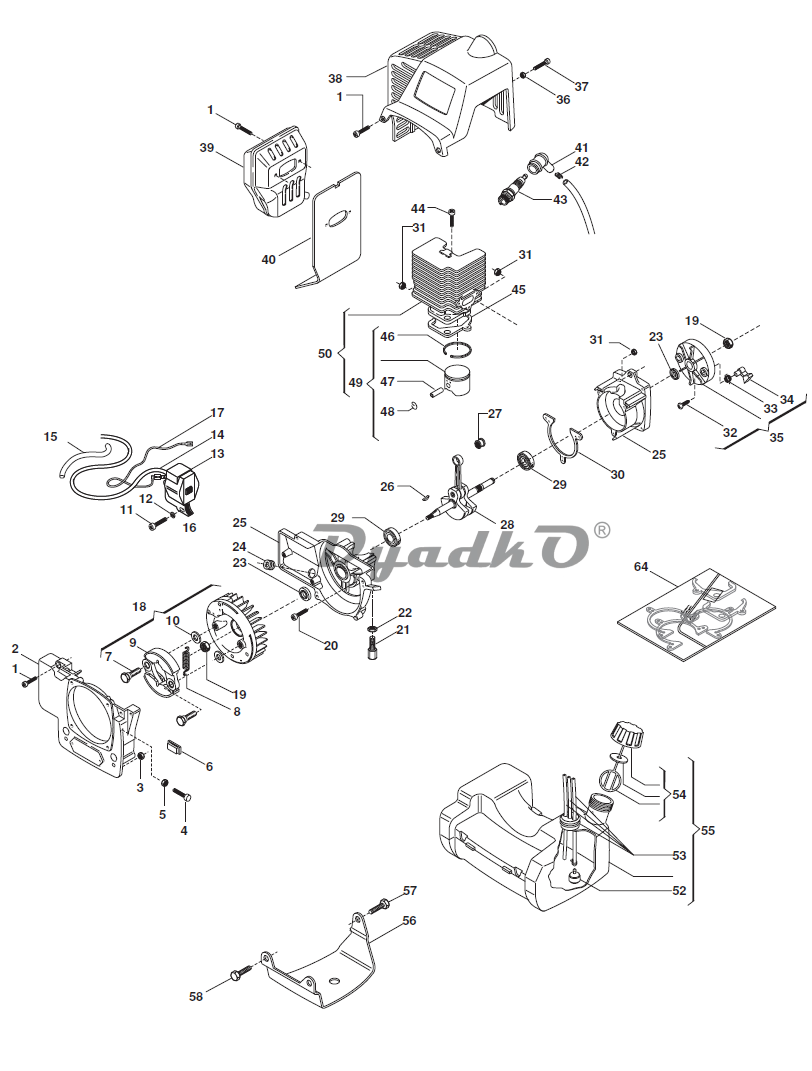

| 1 | Screw |
| 2 | Trasm.support case |
| 3 | Nut autoblock |
| 4 | Screw M4x10 |
| 5 | Washer |
| 6 | Grommet |
| 7 | Screw |
| 8 | Spring |
| 9 | Clutch unit |
| 10 | Washer |
| 11 | Screw |
| 12 | Washer |
| 13 | Elettroniccoil |
| 14 | Spark plug cable |
| 15 | Wire sheath |
| 17 | Ground terminal |
| 18 | Flywheel assy (Ind. 7^10) |
| 19 | Washer |
| 20 | Screw |
| 21 | Wire adjuster |
| 22 | Nut |
| 23 | Seal ring |
| 24 | Grommet |
| 25 | Crankcase assy |
| 26 | Flyweelkey |
| 27 | Needle bearing |
| 28 | Cranckshaft |
| 29 | Ball bearing |
| 30 | Gasket |
| 31 | Nut autolock |
| 32 | Screw |
| 33 | Spring |
| 34 | Starter hook |
| 35 | Starter cup assy(lnd.32^34) |
| 36 | Washer |
| 37 | Screw |
| 38 | Cylinder cover yellow |
| 38 | Cylinder cover red |
| 39 | Muffler |
| 40 | Muffler gasket |
| 41 | Spark plug cover |
| 42 | Spark plug spring |
| 43 | Plug |
| 44 | Screw |
| 45 | Cylinder gasket Mod. 0 35 |
| 46 | Piston ring Mod 0 35 |
| 47 | Piston pin Mod 0 35 |
| 48 | Circlip |
| 49 | Piston assy 0 35 (lncl.46^48) |
| 50 | Ci.-piston assy035(lnd.49-50) |
| 52 | Intake filter |
| 53 | Grommet assy |
| 54 | Fuel cap assy |
| 55 | Fuel tank assy (lnd.52^-54) |
| 56 | Flange mod. 033-35 |
| 57 | Screw mod. 033-35 |
| 58 | Screw mod. 033-35 |
| 64 | Gasket set (lnd.3(MCM5) |
