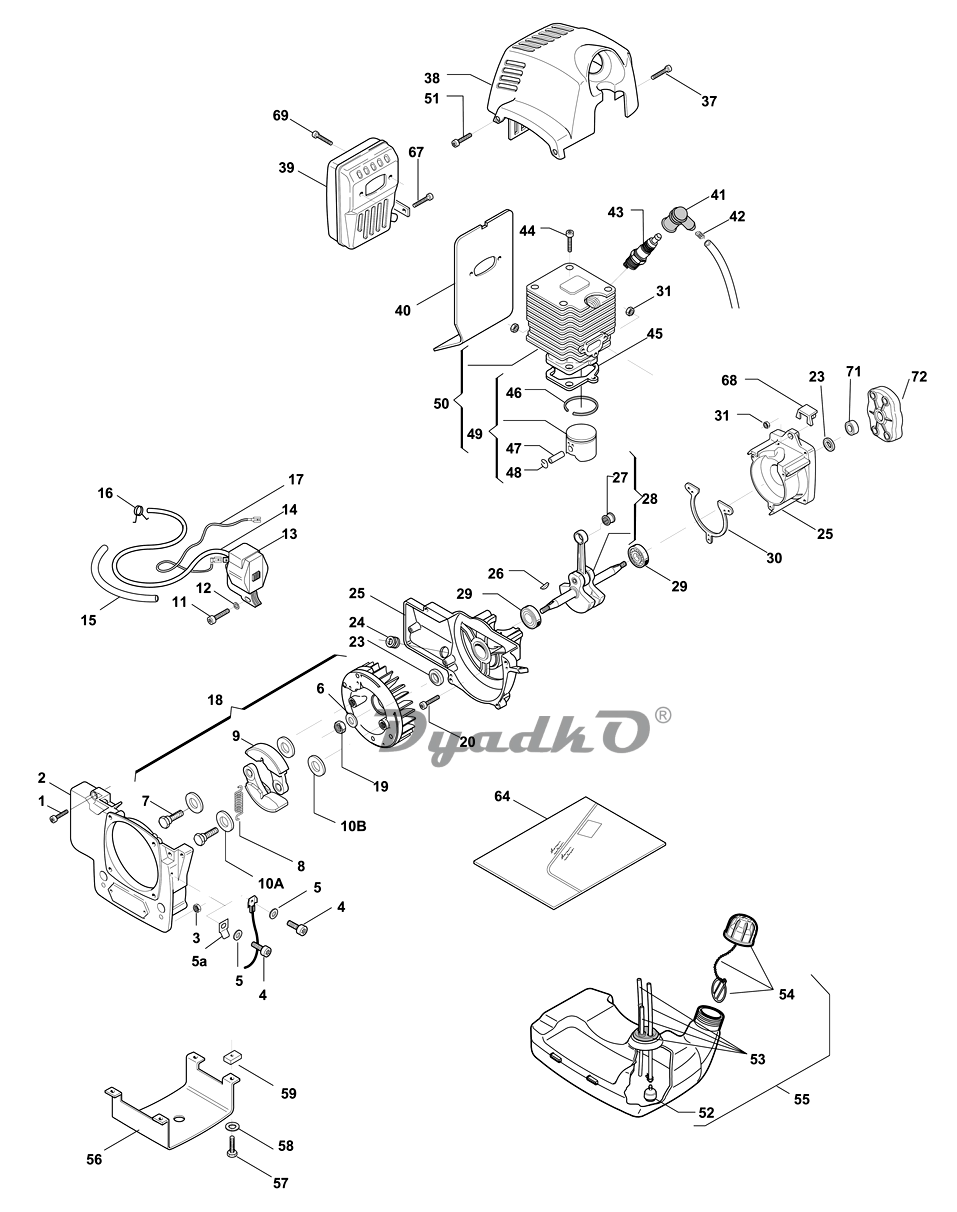

| 1 | Screw |
| 2 | Transm.Support Case |
| 3 | Nut |
| 4 | Screw |
| 5 | Washer |
| 5a | Faston (Flex) |
| 6 | Washer |
| 7 | Screw |
| 8 | Spring Mod.Piston Ass.Y D.42 |
| 9 | Clutch Unit Mod.Piston Ass.Y D.42 |
| 10a | Washer |
| 10b | Washer |
| 11 | Screw |
| 12 | Washer |
| 13 | Electronic Coil |
| 14 | Spark Plug Cable |
| 15 | Wire Jaket |
| 16 | Clamp |
| 17 | Earth Cable |
| 18 | Flywheel Ass.Y X Mod. Piston D.45 (Incl.7-10) |
| 19 | Nut |
| 20 | Screw |
| 23 | Seal Ring |
| 24 | Grommet |
| 25 | Crankase Ass.Y |
| 26 | Flywheel Key |
| 27 | Needle Bearing |
| 28 | Cranckshaft Ass.Y (Incl.27) |
| 29 | Bearing |
| 30 | Gasket |
| 31 | Nut |
| 37 | Screw |
| 38 | Yellow Cylinder Cover |
| 39 | Muffler |
| 40 | Gasket |
| 41 | Spark Plug Cover |
| 42 | Spark Plug Spring |
| 43 | Spark Plug |
| 44 | Screw |
| 45 | Cylinder Gasket |
| 46 | Piston Ring D. 45 |
| 47 | Piston Pin D. 45 |
| 48 | Circlip |
| 49 | Piston Ass.Y D.45 (Incl.46-48) |
| 50 | Cyl-Pist D.45 (Incl.49) |
| 51 | Screw |
| 52 | Intake Filter |
| 53 | Grommet Ass.Y |
| 54 | Fuel Cap Ass.Y |
| 55 | Fuel Tank Ass.Y (Incl.52-54) |
| 56 | Flange |
| 57 | Screw |
| 57 | Screw |
| 58 | Washer |
| 59 | Nut |
| 64 | Gasket Set (Incl. 30-40-45) |
| 67 | Screw |
| 68 | Yellow Spacer |
| 69 | Screw |
| 71 | Spacer (EASY STARTER) |
| 72 | Starter Cup (EASY STARTER) |
